QUICK USE GUIDE
5
10
7
TO AV SUBWOOFER
AV Subwoofer
Helpful Hints

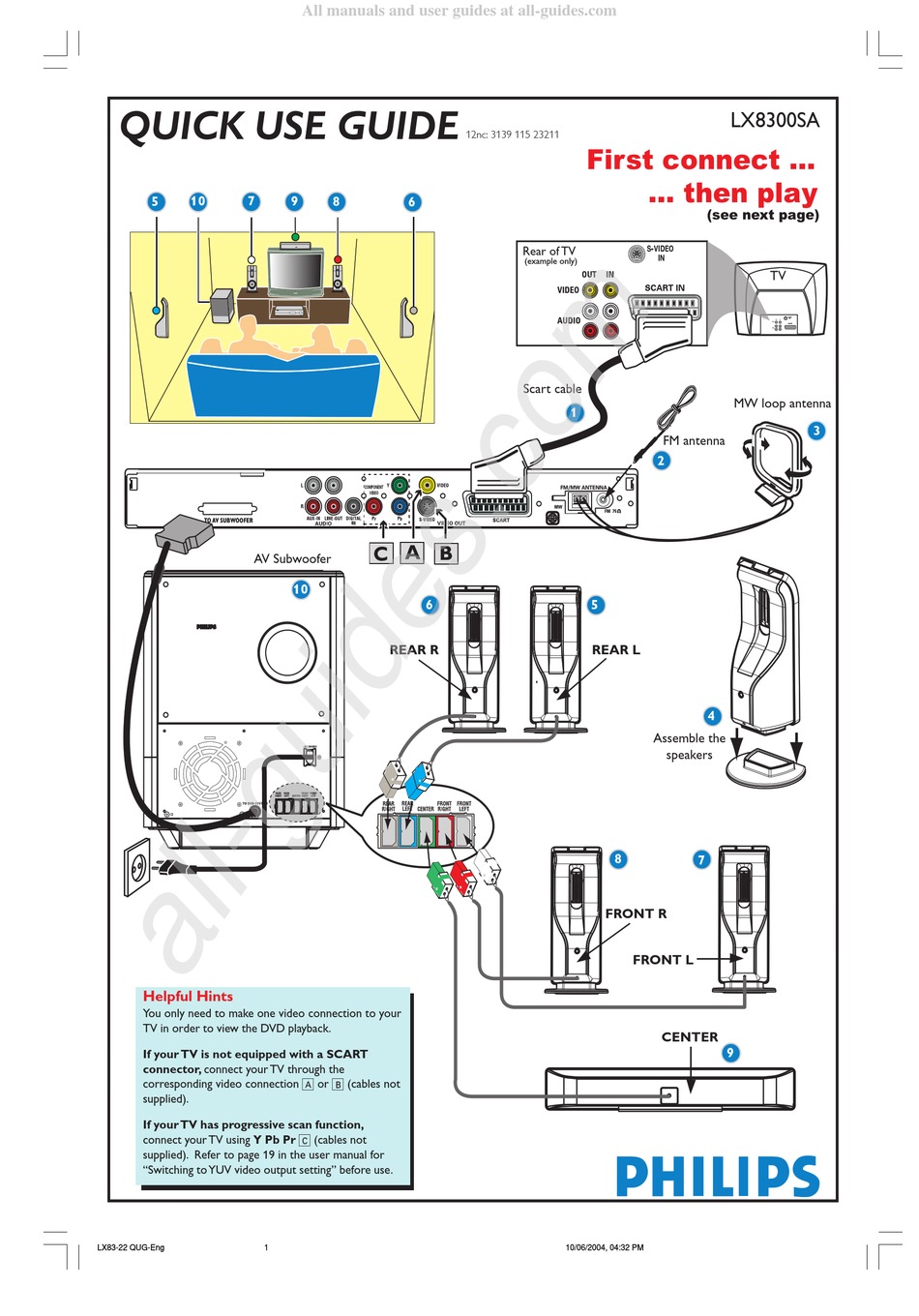

You only need to make one video connection to your
TV in order to view the DVD playback.
If your TV is not equipped with a SCART
connector, connect your TV through the
corresponding video connection A or B (cables not
supplied).
If your TV has progressive scan function,
connect your TV using Y Pb Pr C (cables not
supplied). Refer to page 19 in the user manual for
"Switching to YUV video output setting" before use.
LX83-22 QUG-Eng
