ENGLISH

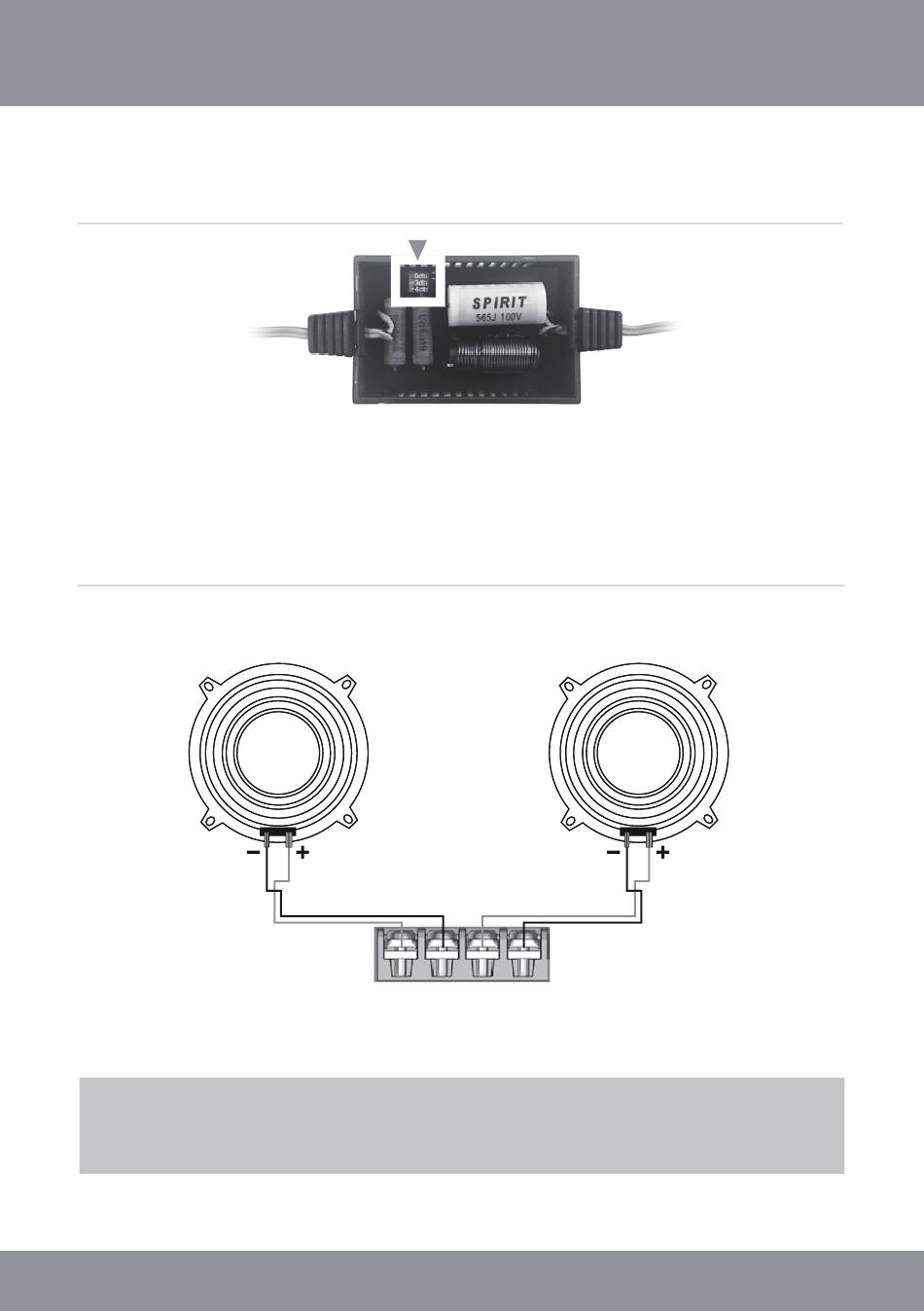

TWEETER ATTENUATION QXE5.2C, QXE6.2C
Optional: Pull off the housing of the tweeter crossover (TW).
Underneath is a jumper which can be plugged into three positions:
0 dB = no attenuation resp. – 3dB or – 6dB attenuation
INTERCONNECTION QXE42, QXE52, QXE62, QXE6.2W
Speaker Speaker
L R
+ L – + R –
Speaker Outputs
at the Amplifier
IMPORTANT:
Please pay attention to the correct polarity (+ or -)
for all terminals and connections.
