Mounting Surfaces More Than 2.36 Inches Thick
For Mounting Surfaces with a thickness of more than 2.36
inches (60 mm) and less than 3.35 inches (85 mm), the Bottom
Plate must be flipped and installed upside-down.
Remove the Screws (x2), located at the bottom of the Desk
1.
Clamp, using the 5 mm Hex Key, and remove the Bottom
Plate. (Figure 7)
Desk Clamp
Remove the Screw from the Pressure Plate, using a Phillips
2.
Head Screwdriver. (Figure 8)
Pressure Plate
Bottom Plate
Detach the Pressure Plate and Washer from the Hand
3.
Screw.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Screw
Washer
Hand Screw

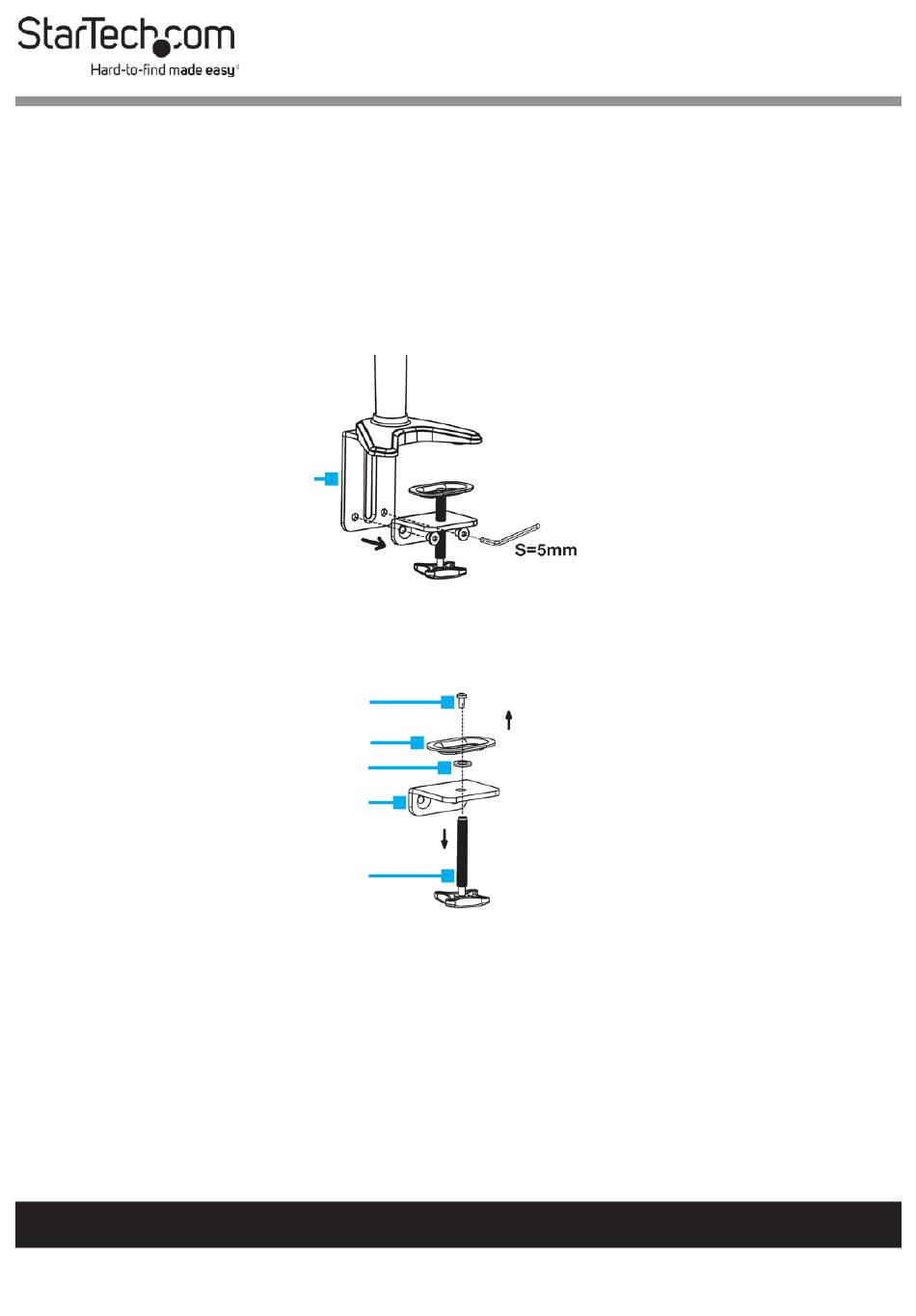

Figure 7
Figure 8
