Installation
Grommet Mounting

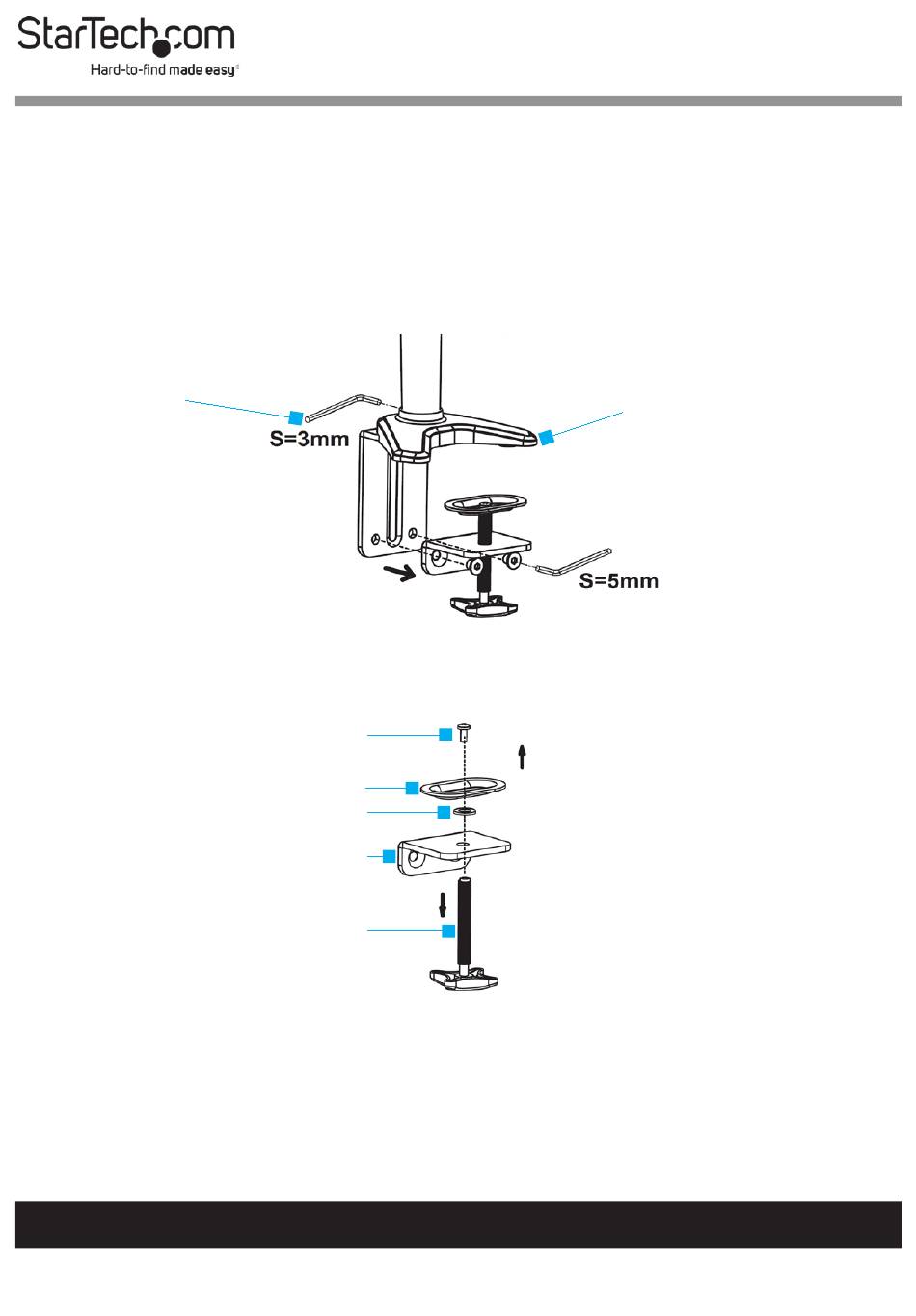

Remove the Screws (x2), located at the bottom of the Desk
1.
Clamp, using the 5 mm Hex Key, and remove the Bottom
Plate. (Figure 1)
5 mm Hex
Key
Remove the Screw from the Pressure Plate, using a Phillips
2.
Head Screwdriver. (Figure 2)
Pressure Plate
Bottom Plate
Detach the Pressure Plate and Washer from the Hand
3.
Screw.
Detach the Hand Screw from the Bottom Plate.
4.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Screw
Washer
Hand Screw
Figure 1
Figure 2
5
Desk Clamp
