Mount
Metal Aluminum Case
Daylight Sensor
Infrared Lights
High Definition Lens
Spotlight
Speaker
Built-in Mic
NOTE: NOTE:
• Different types of cameras are introduced in this section. Please check • Different types of cameras are introduced in this section. Please check
out the camera included in the package and check out the details from out the camera included in the package and check out the details from
the correpsonding introduction above. the correpsonding introduction above.
• The actual appearance and components may vary with different • The actual appearance and components may vary with different
model of product. model of product.
5 English

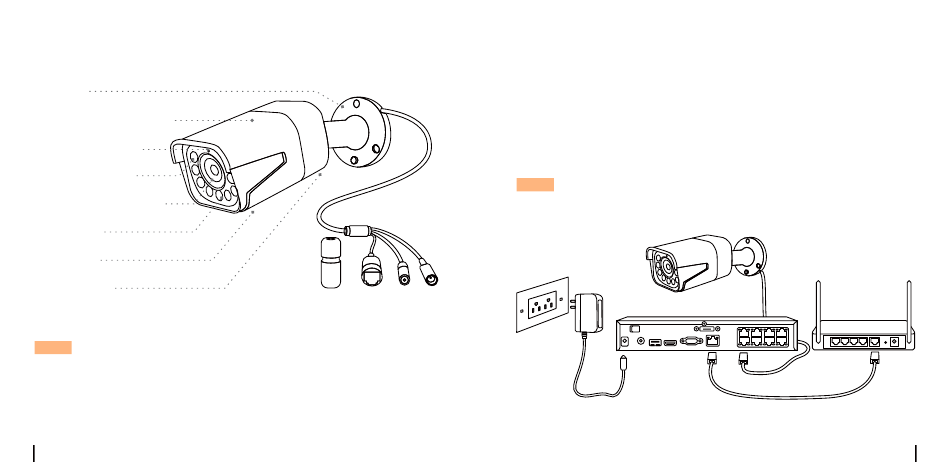

Connection Diagram

Before using the camera, please connect your camera as instructed
below to finish initial setup.
1. Connect the camera to a Reolink NVR (not included) with an Ethernet
cable.
2. Connect the NVR to your router, and then power on the NVR.
NOTE: The camera should be powered with a 12V DC adapter or a PoE
powering device such as PoE injector, PoE switch or Reolink NVR
(not included in the package).
Power Adapter
Reolink NVR *
OFF ON
AUDIO
DC 48V OUT USB HDMI VGA
* You may also connect the camera to a PoE switch or PoE injector.
PoE IP Camera
Router
1 3 5 7
eSATA
LAN 2 4 6 8
Ethernet Cable
Ethernet Cable
English 6
