Installation & Mounting:
Before installation, examine the LED heads for transit damage. Do not use damaged or broken parts.

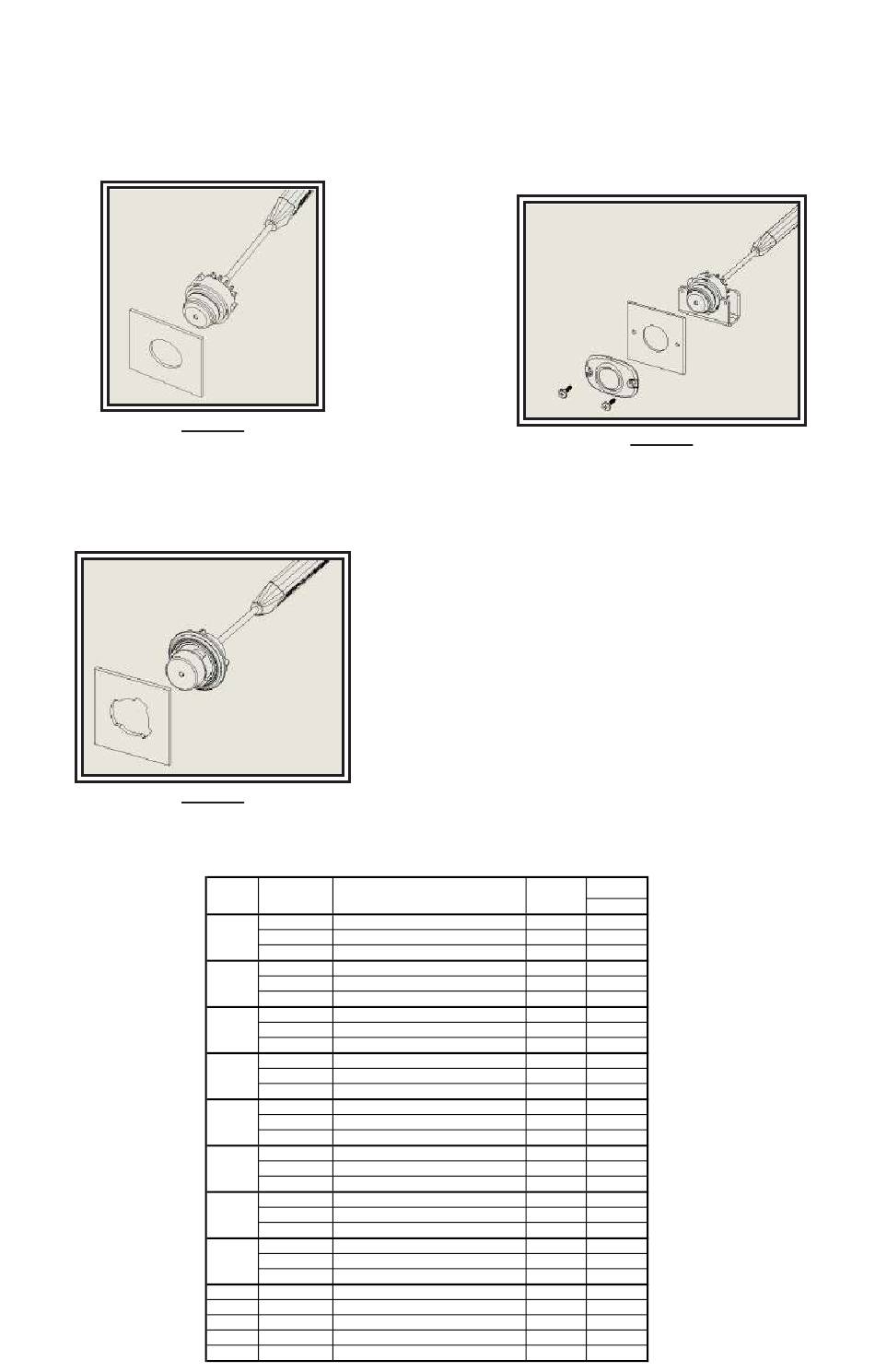

Lamp Mounting (Figure 1):
Pick a location in the vehicle lamp housing that is at least 1" away from any
existing bulbs. Drill 1" hole in vehicle lamp reflector housing with hole saw. Install
the LED head into the hole as shown in Figure 1. Use silicone RTV around the
LED head to seal. Strap the driver module to a nearby wire harness or body
structure. Make electrical connections as described below.
Twist-lock Mounting (Figure 3):
Locate and removed the OEM light bulb plug by rotating it counter clockwise until
the bulb plug stops in its rotation, pull out of the socket. Take note of the positions
of the retention cam clearance notches. Apply silicone RTV sealant around the
rubber gasket. Insert the twist-lock lighthead through the socket and rotate it
clockwise until it stops. Make sure lighthead is tightly secured in the socket.
Figure 1
Figure 3
Single Color Flash Pattern Chart
Tabla de patrones de parpadeo de color único
Tableau des modes de clignotements unicolores
Einfarbige Leuchtmustertabelle
Pattern
MODE
1
Single Flash 75FPM sim. Phase1
1
2
Single Flash 75FPM sim. Phase2
3
Single Flash 75FPM Alt.
4
Single Flash 120FPM sim. Phase1
2
5
Single Flash 120FPM sim. phase2
6
Single Flash 120FPM Alt.
7
Double Flash 75FPM sim. Phase1
3
8
Double Flash 75FPM sim. phase2
9
Double Flash 75FPM Alt.
10
Double Flash 120FPM sim. Phase1
4
11
Double Flash 120FPM sim. phase2
12
Double Flash 120FPM Alt.
13-Default
Quad Flash 75FPM sim. Phase1
14
5
Quad Flash 75FPM sim. Phase2
15
Quad Flash 75FPM Alt.
16
Quad Flash 150FPM sim. Phase1
6
17
Quad Flash 150FPM sim. Phase2
18
Quad Flash 150FPM Alt
19
Triple 75FPM sim. Phase1
7
20
Triple 75FPM sim. Phase2
21
Triple 75FPM Alt.
22
Quint Flash 150FPM sim. Phase1
8
23
Quint Flash 150FPM sim. Phase2
24
Quint Flash 150FPM Alt.
9
25
Steady - Single
26
10
Steady Burn
11
27
Modulation
28
12
2 Double Flash,2 Triple Alt.
29
13
4 Single Flash ,2 Quad Flash Alt.
Surface Mounting (Figure 2):
Pick a location in the vehicle body that is at least 1" away from other objects. Drill
a 1" hole in the body with a hole saw. Using the bezel as a template, mark and
drill the mounting hole locations in the mounting surface. Make the electrical
connections described below and place the LED head in the 1" hole. Install the
bezel and bracket using the two screws provided. Torque screws to 8 +/- 2 in-lbs.
Silicone RTV sealant should be used around the mounting and screw holes.
PATTERNS
SYNC.
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
NO
NO
NO
NO
NO
Figure 2
SAE J595
WHITE
Class 3
Class 3
N/C
Class 3
Class 3
N/C
Class 3
Class 3
N/C
Class 3
Class 3
N/C
Class 3
Class 3
N/C
Class 3
Class 3
N/C
Class 3
Class 3
N/C
Class 3
Class 3
N/C
N/C
N/C
N/C
N/C
N/C
Page 2 of 4
