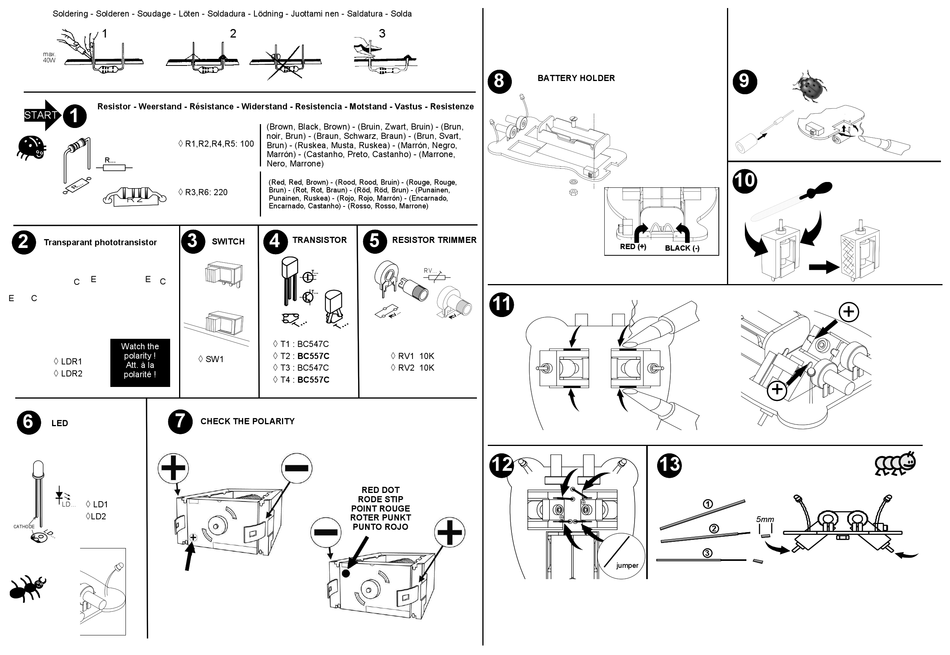

Velleman WSAK127 Kurzanleitung

Soldering - Solderen - Soudage - Löten - Soldadura - Lödning - Juottami nen - Saldatura - Solda
1
max.
40W
Resistor - Weerstand - Résistance - Widerstand - Resistencia - Motstand - Vastus - Resistenze
1
START

R1,R2,R4,R5: 100

R3,R6: 220
3
2
Transparant phototransistor
E E
C C
E C
Watch the

polarity !
LDR1

Att. à la
LDR2
polarité !
7
6
LED

LD1

LD...
LD2
CATHODE
2 3
(Brown, Black, Brown) - (Bruin, Zwart, Bruin) - (Brun,
noir, Brun) - (Braun, Schwarz, Braun) - (Brun, Svart,
Brun) - (Ruskea, Musta, Ruskea) - (Marrón, Negro,
Marrón) - (Castanho, Preto, Castanho) - (Marrone,
Nero, Marrone)
(Red, Red, Brown) - (Rood, Rood, Bruin) - (Rouge, Rouge,
Brun) - (Rot, Rot, Braun) - (Röd, Röd, Brun) - (Punainen,
Punainen, Ruskea) - (Rojo, Rojo, Marrón) - (Encarnado,
Encarnado, Castanho) - (Rosso, Rosso, Marrone)
4 5
TRANSISTOR
SWITCH

 T1 : BC547C

T2 : BC557C

SW1
T3 : BC547C

T4 : BC557C
CHECK THE POLARITY
RED DOT
RODE STIP
POINT ROUGE
ROTER PUNKT
PUNTO ROJO
8
BATTERY HOLDER
RESISTOR TRIMMER
11

RV1 10K

RV2 10K
12
9
10
RED (+)
BLACK (-)
+
13
1
5mm
2
3 3
jumper
+
