1
b
a
4

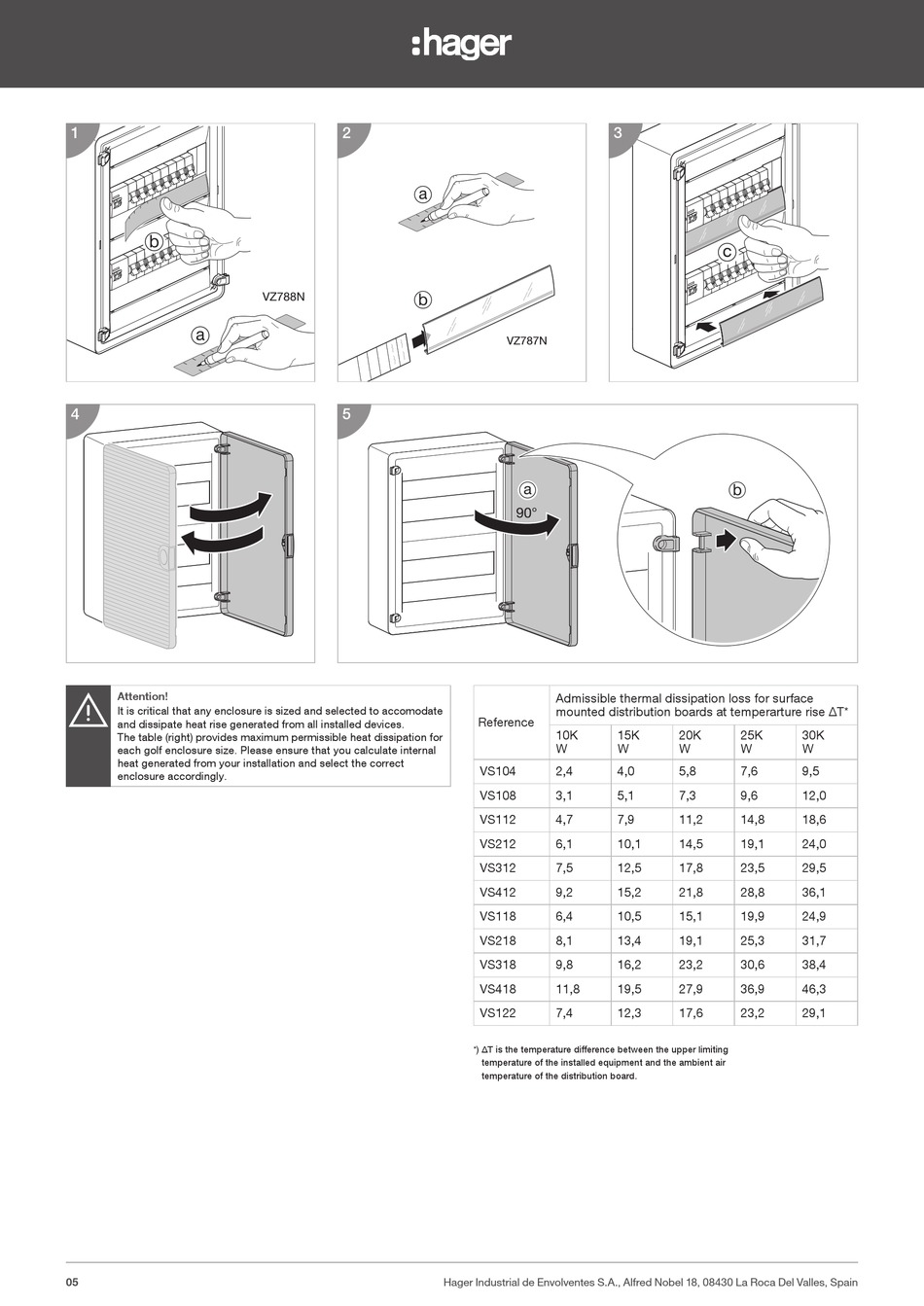

Attention!
It is critical that any enclosure is sized and selected to accomodate
and dissipate heat rise generated from all installed devices.
The table (right) provides maximum permissible heat dissipation for
each golf enclosure size. Please ensure that you calculate internal
heat generated from your installation and select the correct
enclosure accordingly.
05
2
a
b
VZ788N
5
3
VZ787N
a
90°
Admissible thermal dissipation loss for surface
mounted distribution boards at temperarture rise ∆T*
Reference
10K
15K
W
W
VS104
2,4
4,0
VS108
3,1
5,1
VS112
4,7
7,9
VS212
6,1
10,1
VS312
7,5
12,5
VS412
9,2
15,2
VS118
6,4
10,5
VS218
8,1
13,4
VS318
9,8
16,2
VS418
11,8
19,5
VS122
7,4
12,3
*) ∆T is the temperature difference between the upper limiting
temperature of the installed equipment and the ambient air
temperature of the distribution board.
Hager Industrial de Envolventes S.A., Alfred Nobel 18, 08430 La Roca Del Valles, Spain
c
b
20K
25K
30K
W
W
W
5,8
7,6
9,5
7,3
9,6
12,0
11,2
14,8
18,6
14,5
19,1
24,0
17,8
23,5
29,5
21,8
28,8
36,1
15,1
19,9
24,9
19,1
25,3
31,7
23,2
30,6
38,4
27,9
36,9
46,3
17,6
23,2
29,1
