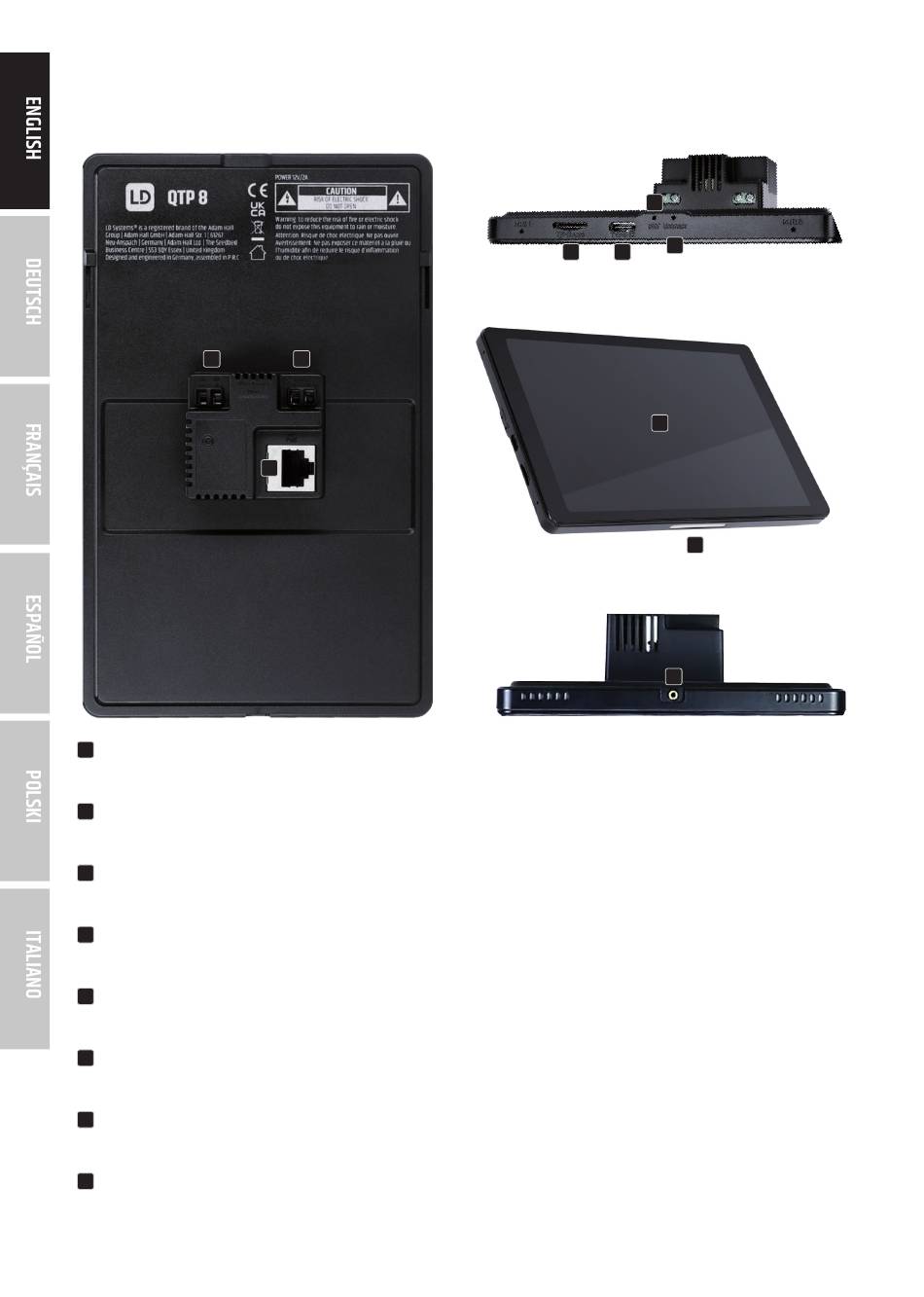

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

2

ETHERNET CONNECTION

1
Ethernet connection for the data connection and power supply via PoE (Power over Ethernet).
POWER IN
2
Alternative power supply via an optionally available power supply unit (12V / 2A DC voltage, ensure correct polarity, see labelling).
SERIAL INTERFACE RS485
3
Currently without function.
TF-CARD
4
Slot for a TF card or MicroSD card.
TYPE-C
5
USB-C port for data connection with a computer.
SET
6
For service purposes only.
RESTART
7
Use a paper clip, for example, to force a restart of the unit.
DISPLAY
8
8 inch touch display.
4
3
1
6
7
4 5
8
9
10
