English

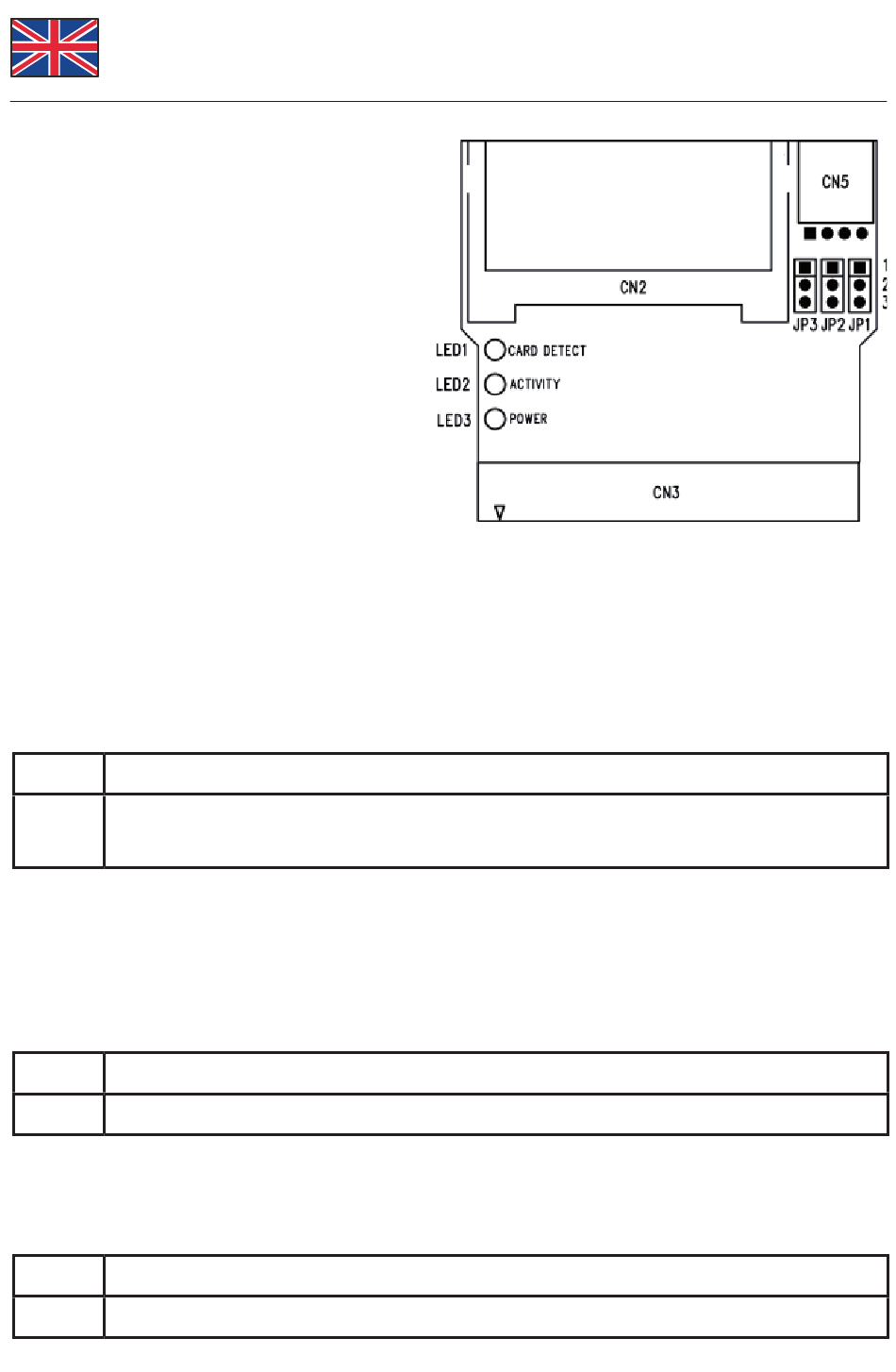

Layout
CN2 – Compact Flash socket
CN3 – 40 pin (2.54 mm pitch) IDE
CN5 – Floppy power
connector
LED1 – CF card-detect indicator
LED2 – Memory access activity indicator
LED3 – Power-on indicator
JUMPER Settings:
JP1 – Compact Flash power source selection:
1-2 From external (CN5)
From the 20th pin of 40-pin standard IDE connector (CN3), for
2-3 VIA EPIA series motherboard
Standard setting is power and is taken from the IDE port. If you want to
supply power via cable you have to set the Jumper on 1-2.
JP2 - Compact Flash voltage selection:
1-2 5.0 volts
2-3 3.3 volts
Voltage depends on your memory card.
JP3 – Compact Flash mode selection:
1-2 Master / Single
2-3 Slave
-2-
