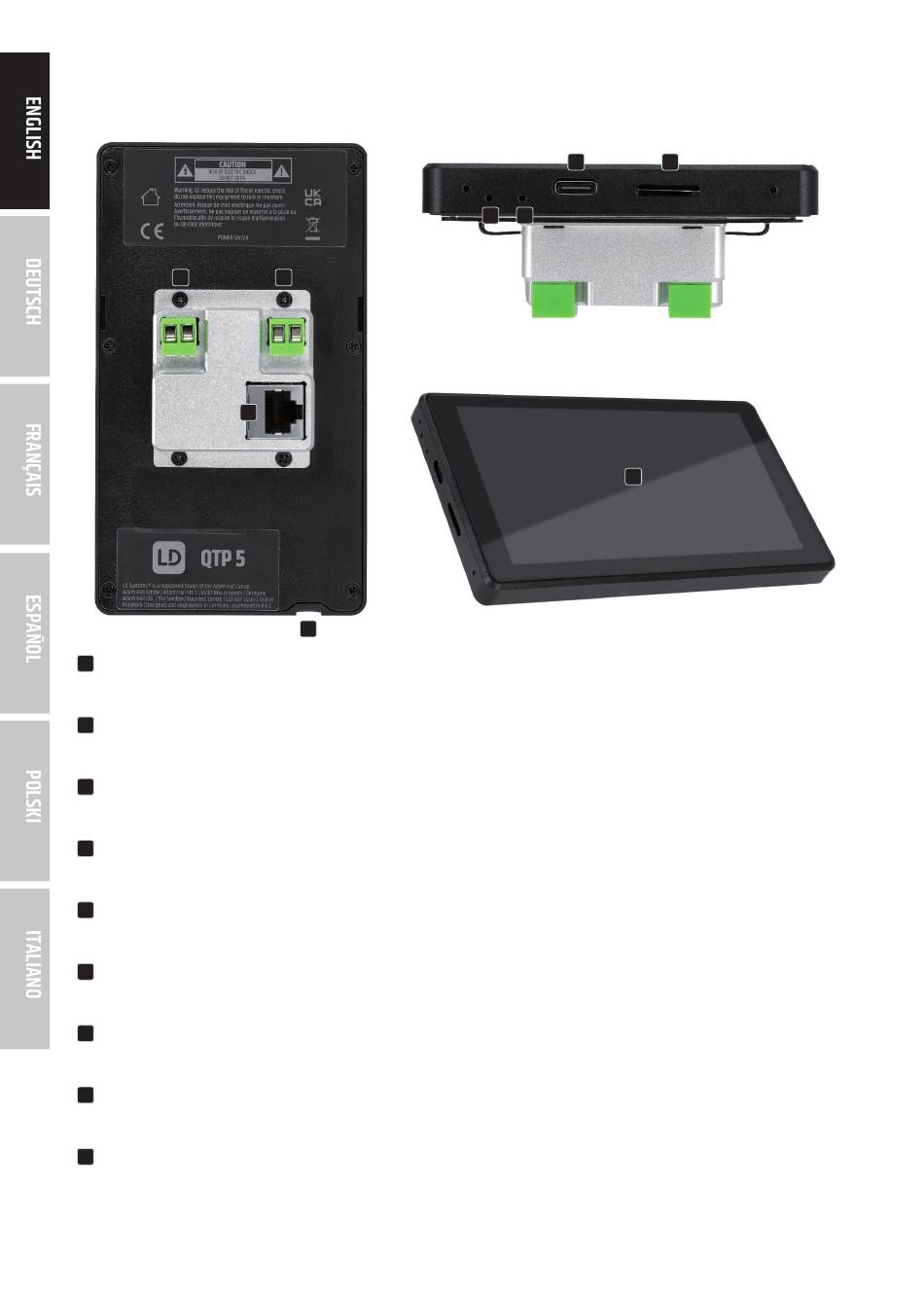

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

2

ETHERNET CONNECTION

1
Ethernet connection for the data connection and power supply via PoE (Power over Ethernet).
POWER IN
2
Alternative power supply via an optionally available power supply unit (12V / 2A DC voltage, ensure correct polarity, see labelling).
SERIAL INTERFACE RS485
3
Currently without function.
TF-CARD
4
Slot for a TF card or MicroSD card.
TYPE-C
5
USB-C port for data connection with a computer.
RESTART
6
Use a paper clip, for example, to force a restart of the unit.
SET
7
For service purposes only.
DISPLAY
8
5.5 inch touch display.
THREAD
9
Thread for fastening the mounting plate (mounting plate and locking screw included).
4
3
1
1
5
5 7
8
4
