Instruction manual
3.4

Type overview

Standard Type Voltage
EA04 100 – 230V
EA04 24V
EA04 24 – 240V
3.5

Design and function

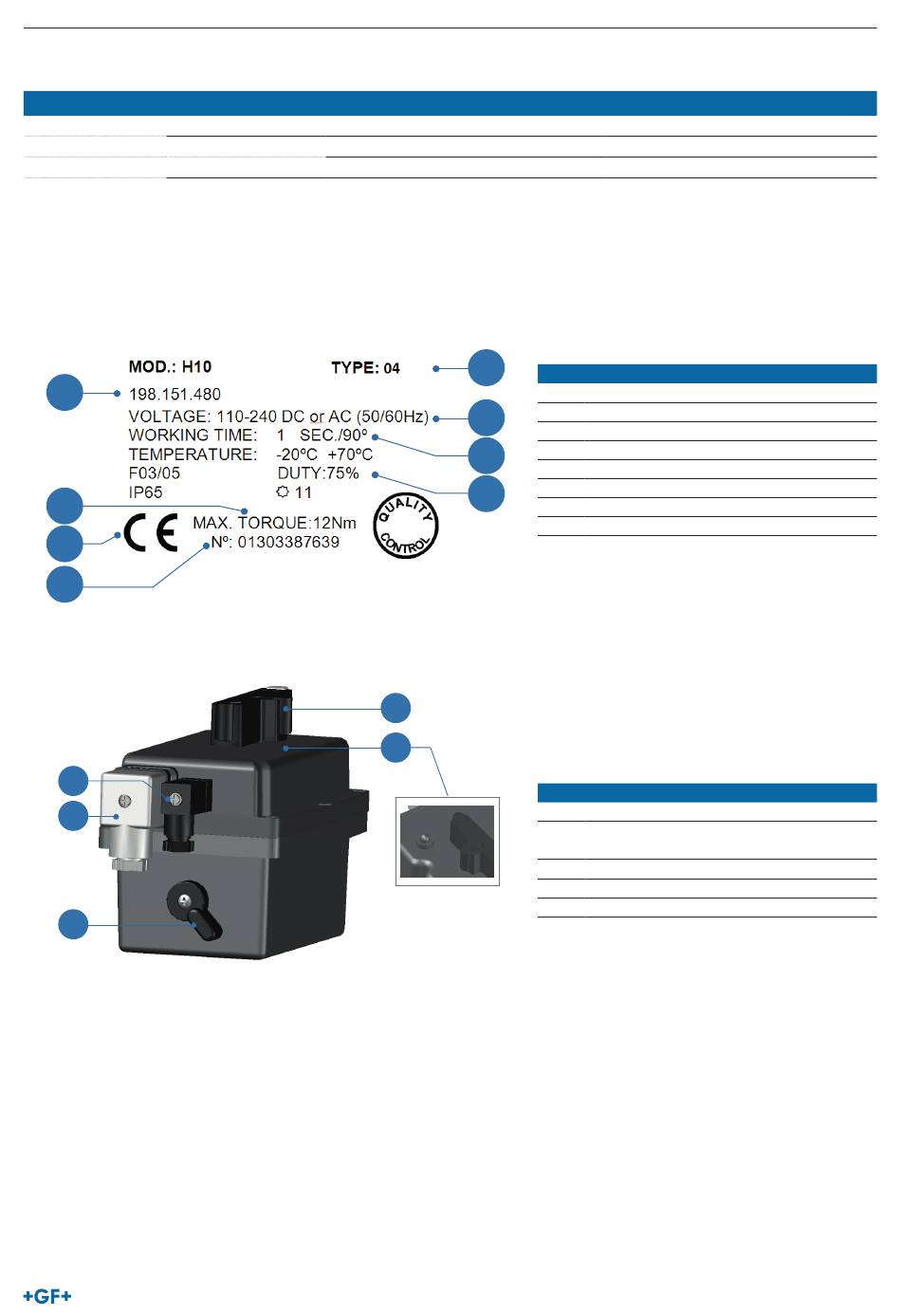

3.5.1 Identification
2
3
8
7
3.5.2 Design EA04
4
3
1
Torque Code
10 Nm 198 151 480
10 Nm 198 151 481
20 Nm 198 151 492
1
4
5
6
2
5
Electric Actuators Type EA04
Electrical connection
DIN-plug
DIN-plug
DIN-plug
Pos. Designation
1 Type label (EA04)
2 Internal assembly number
3 Maximum torque
4 Voltage type
5 Regulating time
6 Duty cycle
7 Serial number
8 CE marking
Pos. Designation
1 Switch manual emergency override
2 Position indicator / manual emergency
override
3 Connection for control voltage
4 Connection for feedback
5 Status light (only EA04 20Nm)
11
