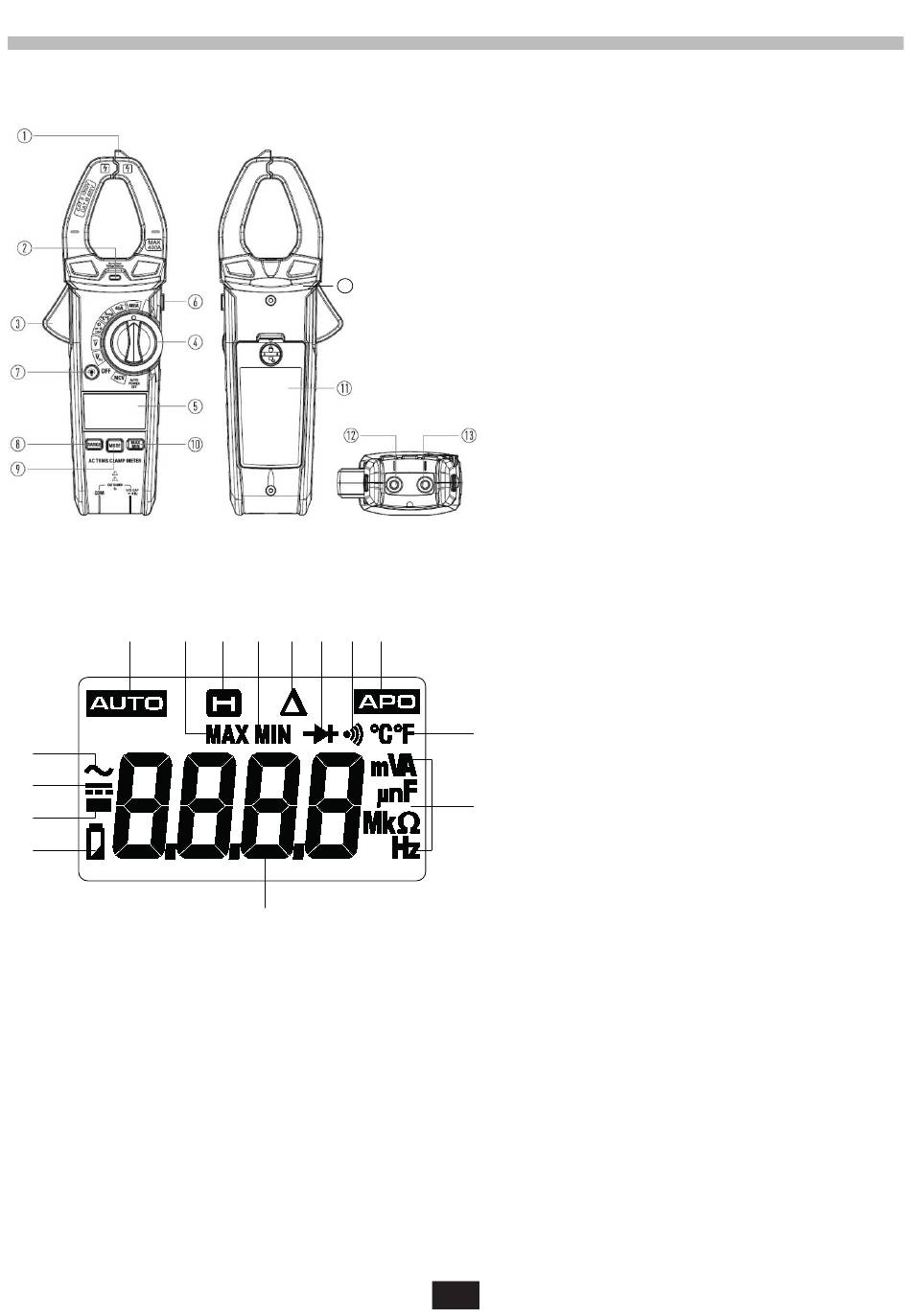

2.1. CLAMP METER DESCRIPTION

2.2. SYMBOLS USED ON LCD DISPLAY

⑤
⑥
①
②
③
④

2. DESCRIPTION

14
⑦ ⑧ ⑨ ⑩ ⑪ ⑫
⑮
1-Non-Contact Voltage Detector
2-Non-Contact Voltage Indicator
3-Clamp Trigger
4-Rotary Switch
5-LCD Display
6-HOLD and Flashlight Button
7-Backlight Button
8-RANGE Button
9-MODE Button
10-MAX/MIN Button
11-Battery Caver
12-COM terminal
13-+ terminal
14-Guard
⑯⑰⑱⑲⑳
1-AC
2-DC
3-Minus Sign
4-Low Battery
5-Auto Ranging
⑬
6- Maximum
7-Display Hold
8-Minimum
⑭
9-Relative mode
10-Diode Test
11-Continuity
12-Auto Power Off
13-Degrees Celsius/Fahrenheit/
14-Units of Measure
15-Measurement display
