Aufbauanleitung / assembly instructions mod.
G684 - G686 mit Frontauszug
8x
30 x 10,5
8x
M10

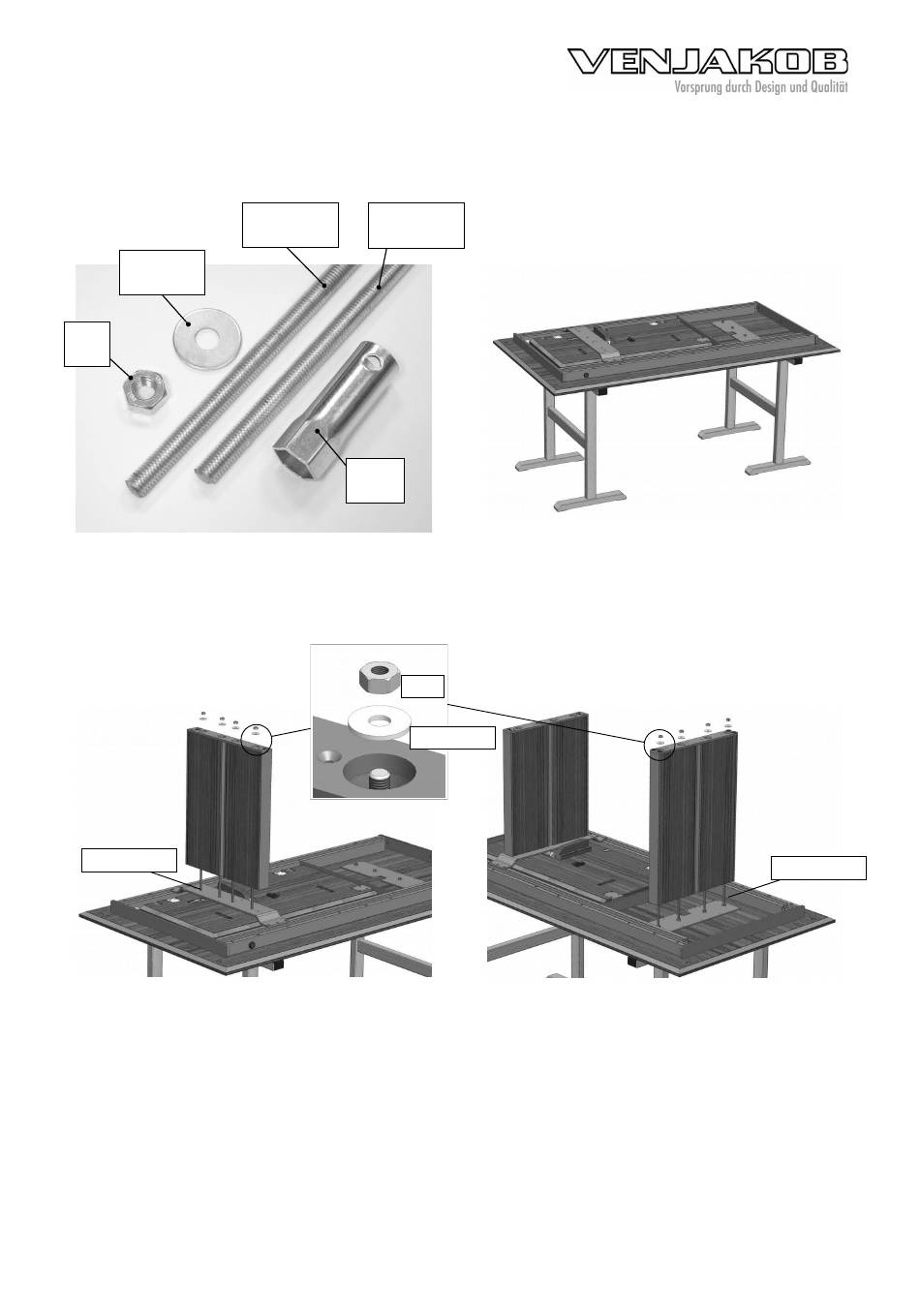

1.Montagematerial.
2. Fitting material.
M10 x 630
3. Die kurzen Gewindestangen einschrauben.
Die beiden Wangen der Auszugsseite (Rollen)
auspacken und auf die Gewindestangen
stecken. Die Unterlegscheiben auf die
Gewindestangen aufstecken und mit den
Muttern fixieren.
3. Screw in the short threaded bolts.
Unpack the two table feet of the extension side
(rolls) and put them onto the threaded bolts.
Put the washers onto the threaded bolts and
fix them with 4 nuts.
G684 - G686 mit Frontauszug
4x
4x
M10 x 630
M10 x 708
1x
SW17
M10
30 x 10,5
Archiv-Nr. 10001247
2. Den Oberbau umgedreht auf gepolsterten
Montageböcken ablegen.
2. Put the table-top upside down onto padded
assembling trestles.
4. Die langen Gewindestangen einschrauben.
Die beiden Wangen der Festseite auspacken
und auf die Gewindestangen stecken. Das
schwarze Verstärkungsblech und die
Unterlegscheiben auf die Gewindestangen
aufstecken und mit den Muttern fixieren.
4. Screw in the long threaded bolts.
Unpack the two table feet of the fixed side and
put them onto the threaded bolts.
Put the reinforcing plate and the washers onto
the threaded bolts and fix them with 4 nuts.
1 / 5
M10 x 708
Änderungsdatum: 13.08.19
