Inhaltszusammenfassung für G4M TRUSS SYSTEM

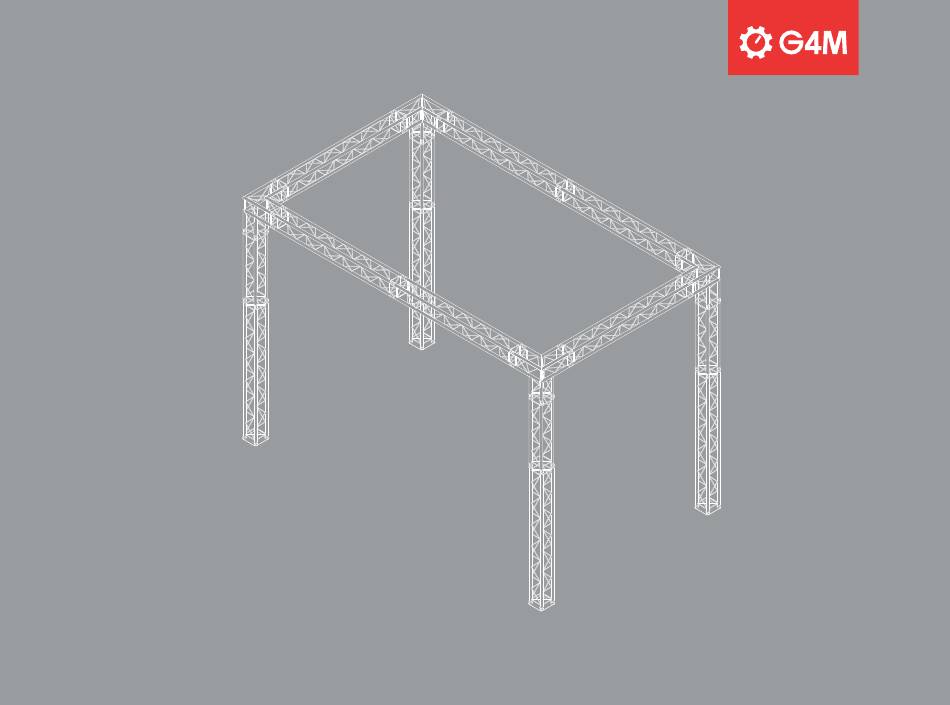

- Seite 1 TRUSS SYSTEM Setup Guides...
- Seite 3 Warnings WARNING! • Inspektera varje komponent noggrannt för att kolla efter skador och slitage osv. innan du börjar. ADVARSEL! • Inspektera den ihopmonterade scenen noggrannt innan varje användning, för att försäkra dig om att alla • Læs og tjek, at du forstår brugsanvisningen før du begynder monteringen. •...
- Seite 5 Contents Checklist TRUSS STRAIGHT 1M TRUSS STRAIGHT 2M TRUSS 3-WAY CONNECTOR TRUSS BASEPLATE CONNECTION ROD CONNECTION BOLT...
-
Seite 6: Tools Required
Contents Checklist CONNECTION PIN Tools Required RUBBER MALLET... - Seite 7 Inspection It is essential to check each truss piece before every installation. An appropriately qualified person should check the condition of the welds. If any welds exhibit cracks or movement the truss piece should be replaced or repaired. Ensure any repairs are carried out only by properly licensed and certified personnel. MAX 10% MAX 10% Check individual pipe sections for any warping.
- Seite 8 Construction STEP 1 STEP 2 Insert four Connection Bolts and align their holes with the holes in the Truss so that the Truss parts are Push a Connection Rod through each hole in the Truss and Connection Bolts, from the outside of the Truss pressed together.
- Seite 9 STEP 3 STEP 4 Push a Connection Pin through each Connection Rod to stop the rods from falling out. Be sure to check Truss Baseplates already have Connection Bolts as part of their design. Place the Truss over the connections connection pins before use.
- Seite 10 STEP 5 STEP 6 Push a Connection Rod through each hole in the Truss and Baseplate, from the outside of the Truss inwards. Push a Connection Pin through each Connection Rod to stop the rods from falling out. Be sure to check Use a mallet to strike the rods and seat them securely.
- Seite 11 STEP 7 STEP 8 Insert four Connection Bolts and align their holes with the holes in the Truss so that the Truss parts are Push a Connection Rod through each hole in the Truss and Connection Bolts, from the outside of the Truss pressed together.
- Seite 12 STEP 9 Push a Connection Pin through each Connection Rod to stop the rods from falling out. Be sure to check connection pins before use. Any pins that are crooked or bent should be replaced.
- Seite 13 Loading Information Before applying a load to truss spans check that all truss pins and rods are installed correctly. Use the Load Chart on the next page of this manual to determine the maximum permissible load for the selected span and do not exceed this amount.
- Seite 14 Load Chart LOAD CHART Base on static load Span Uniformly Distributed Load Centre Point Load Third Point Load Quarter Point Load Fifth Point Load kg/m kg(2x) kg(x3) kg(4x) 900.5 1801 900.5 600.3 450.3 598.2 1794.6 897.3 598.2 1632.6 12.4 894.1 11.6 596.1 10.7...
- Seite 16 If you have any more questions about this product, please do not hesitate to contact the Gear4music Customer Service Team on: +44 (0) 330 365 4444 or info@gear4music.com KETTLESTRING LANE | YORK | YO30 4XF | UNITED KINGDOM • LAHNSTRAßE 27 | 45478 MÜLHEIM AN DER RUHR | DEUTSCHLAND • WWW.GEAR4MUSIC.COM...
