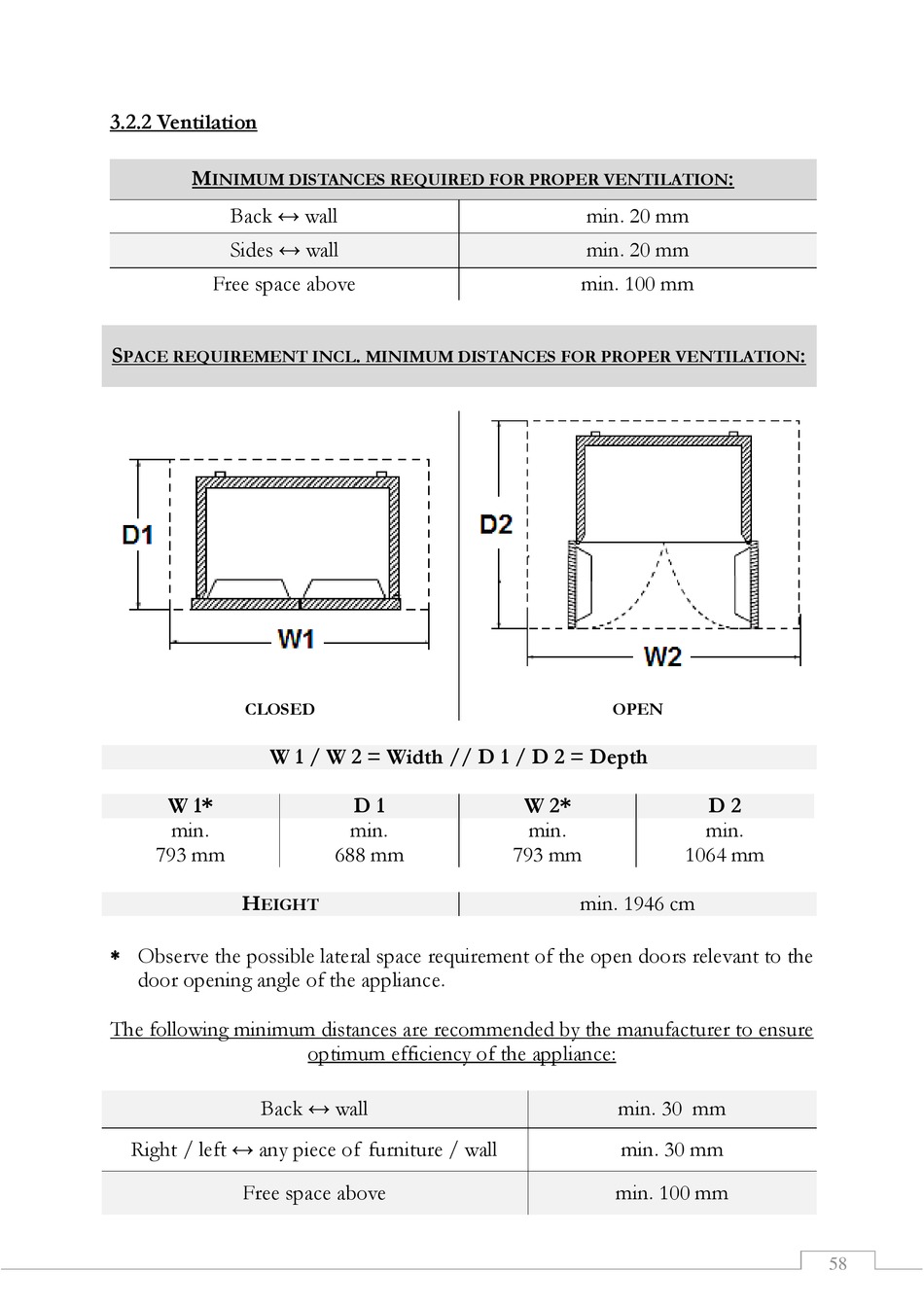

3.2.2 Ventilation

M
INIMUM DISTANCES REQUIRED FOR PROPER VENTILATION
Back ↔ wall
Sides ↔ wall
Free space above
S
PACE REQUIREMENT INCL
CLOSED
W 1 / W 2 = Width // D 1 / D 2 = Depth
W 1*
min.
793 mm
H
EIGHT
 Observe the possible lateral space requirement of the open doors relevant to the
door opening angle of the appliance.
The following minimum distances are recommended by the manufacturer to ensure
Back ↔ wall
Right / left ↔ any piece of furniture / wall
Free space above
.
MINIMUM DISTANCES FOR PROPER VENTILATION
D 1
min.
688 mm
optimum efficiency of the appliance:
min. 20 mm
min. 20 mm
min. 100 mm
OPEN
W 2*
min.
793 mm 1064 mm
min. 1946 cm
min. 30 mm
min. 30 mm
min. 100 mm
:
:
D 2
min.
