CHANNEL 5- 8
MAX
MIN
IN 8
LEVEL
INPUT
IN 7
14
REMOTE
RESET
EXTENSION
13

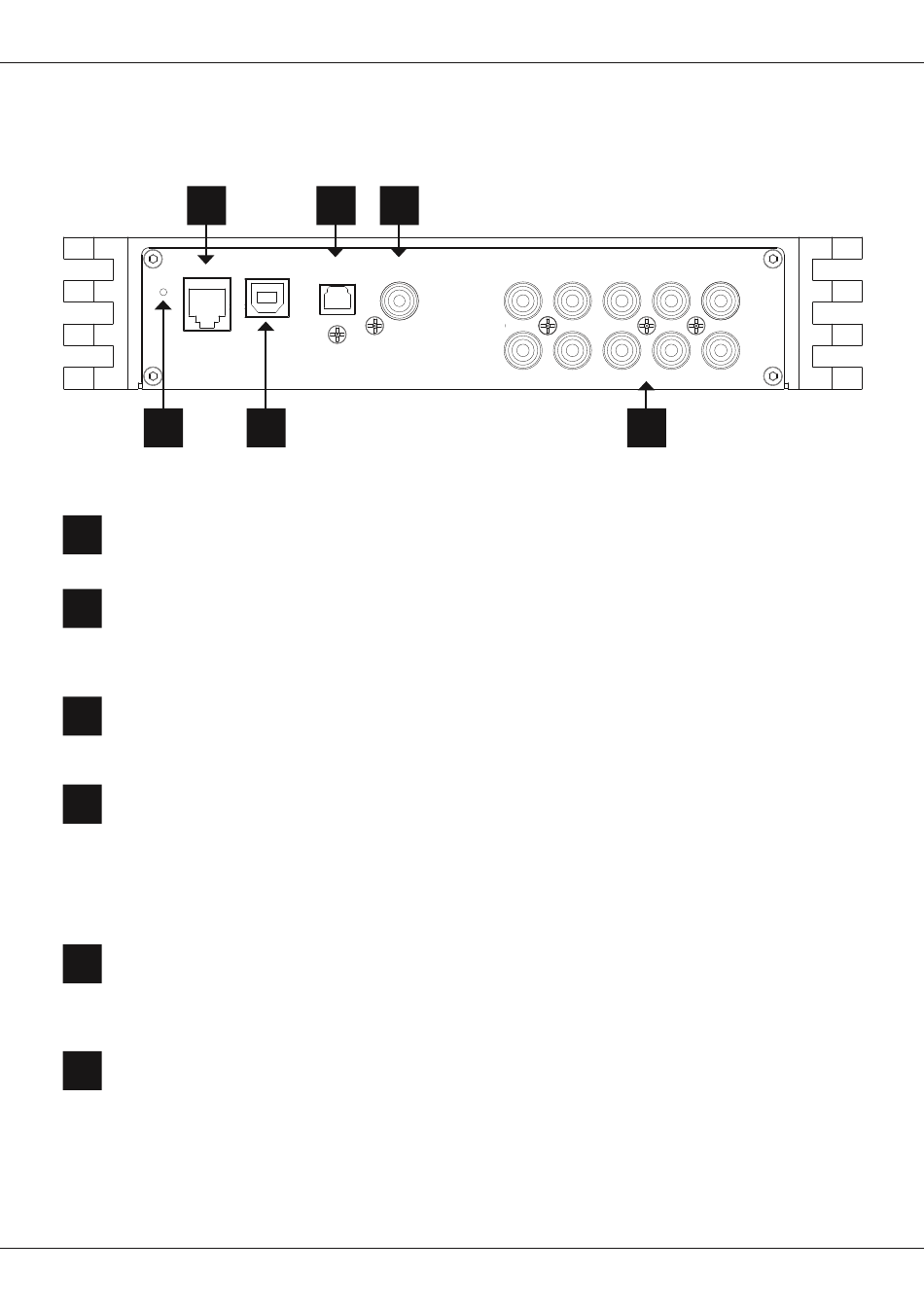

REMOTE EXTENSION
14
This port is for the extension cable of the optionally available remote controller ESX RC-DQ.
15
USB
This USB input is suited for the connection with a PC/laptop computer to manage the functions of the
ESX DSP TOOLKIT software to set-up the DSP functions. The connection is USB 1.1/2.0/3.0 compat-
ible. For downloading the software please visit www.esxaudio.de/dsp.
13
RESET
In case of a malfunction or a software crash, press this button with a suitable object such as a pen or
a needle to reset the device.
OUT (RCA OUTPUTS)
16
The RCA outputs OUT provide the DSP modified output signals for other devices.
PRIORITY INPUT MODE
The device detects the arrival of a digital input signal (e.g. via OPTICAL IN, COAXIAL IN or Bluetooth
input signal is then given priority over the analog input signals as long as the signal source is active.
OPTICAL IN
17
This input accepts PCM stereo signals up to a sampling rate of 192 kHz / 24 bit. Multi-channel signals
coming from audio/video sources (such as the audio tracks of DVD movie) can not be reproduced.
Connect a fiber optic cable with a TOSLINK connector.
COAXIAL IN
18
This input accepts PCM stereo signals up to a sampling rate of 192 kHz / 24 bit. Multi-channel signals
coming from audio/video sources (such as the audio tracks of DVD movie) can not be reproduced.
Connect a suitable coaxial cable.
CHANNEL 1- 4
IN 6
MAX
MIN
IN 4
IN 2
LEVEL
INPUT
IN 5
IN 3
IN 1
17 18
USB
OPTICAL IN
COAXIAL IN
15
HIGH LEVEL INPUT
BT ANT
AUTO
TURN-ON
IN–
VOX DC OFF
IN+
POWER
8 7 6 5 4 3
2 1
QL810 SP
OUT J
OUT H
OUT F
OUT I
OUT G
OUT E
ENGLISH
POWER INPUT
MODE
REM OUT
REM IN
GND
+12V
OUT D
OUT B
OUT C
OUT A
16
). This
®
