English (EN)
1. INTRODUCTION
Congratulations on your purchase! This manual includes information about "ROKR 820" Bluetooth Party Speaker. We
encourage you to take a few minutes to read this manual, which describes the product and includes step-by-step
instructions to help you to set up and get started. Read and understand all the safety instructions before using your
product.

2. WHAT'S IN THE BOX

1) Mainunit
2) DC adaptor
3) Aux cable
4) microphone
5) User manual

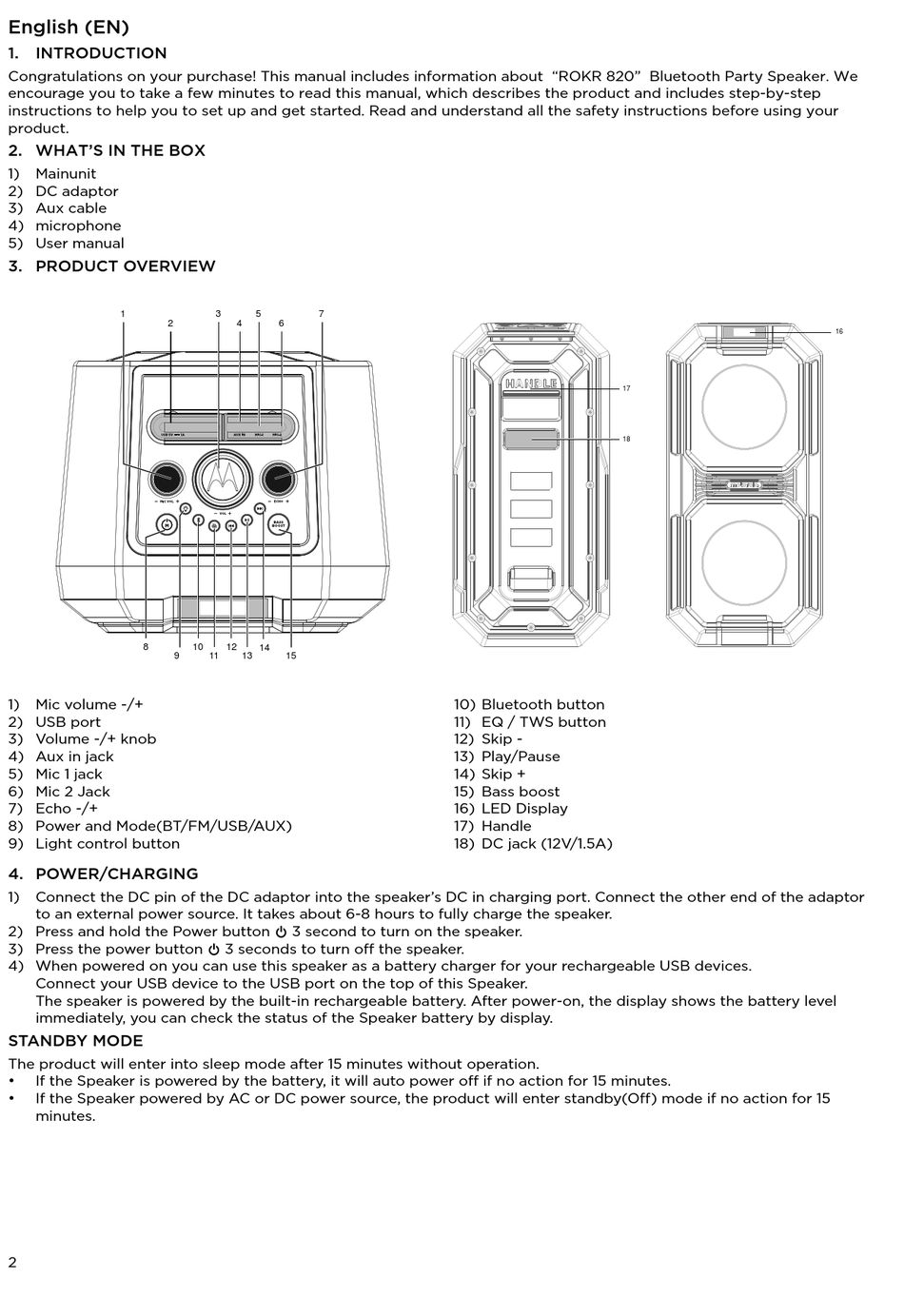

3. PRODUCT OVERVIEW

1
2
8
1) Mic volume -/+
2) USB port
3) Volume -/+ knob
4) Aux in jack
5) Mic 1 jack
6) Mic 2 Jack
7) Echo -/+
8) Power and Mode(BT/FM/USB/AUX)
9) Light control button
4. POWER/CHARGING
1) Connect the DC pin of the DC adaptor into the speaker's DC in charging port. Connect the other end of the adaptor
to an external power source. It takes about 6-8 hours to fully charge the speaker.
2) Press and hold the Power button 0 3 second to turn on the speaker.
3) Press the power button 0 3 seconds to turn off the speaker.
4) When powered on you can use this speaker as a battery charger for your rechargeable USB devices.
Connect your USB device to the USB port on the top of this Speaker.
The speaker is powered by the built-in rechargeable battery. After power-on, the display shows the battery level
immediately, you can check the status of the Speaker battery by display.

STANDBY MODE

The product will enter into sleep mode after 15 minutes without operation.
• If the Speaker is powered by the battery, it will auto power off if no action for 15 minutes.
• If the Speaker powered by AC or DC power source, the product will enter standby(Off) mode if no action for 15
minutes.
2
3 5 7
4 6
10 12
14
9 11 13 15
10) Bluetooth button
11) EQ / TWS button
12) Skip -
13) Play/Pause
14) Skip +
15) Bass boost
16) LED Display
17) Handle
18) DC jack (12V/1.5A)
17
18
16
