4. Assembling the playpen

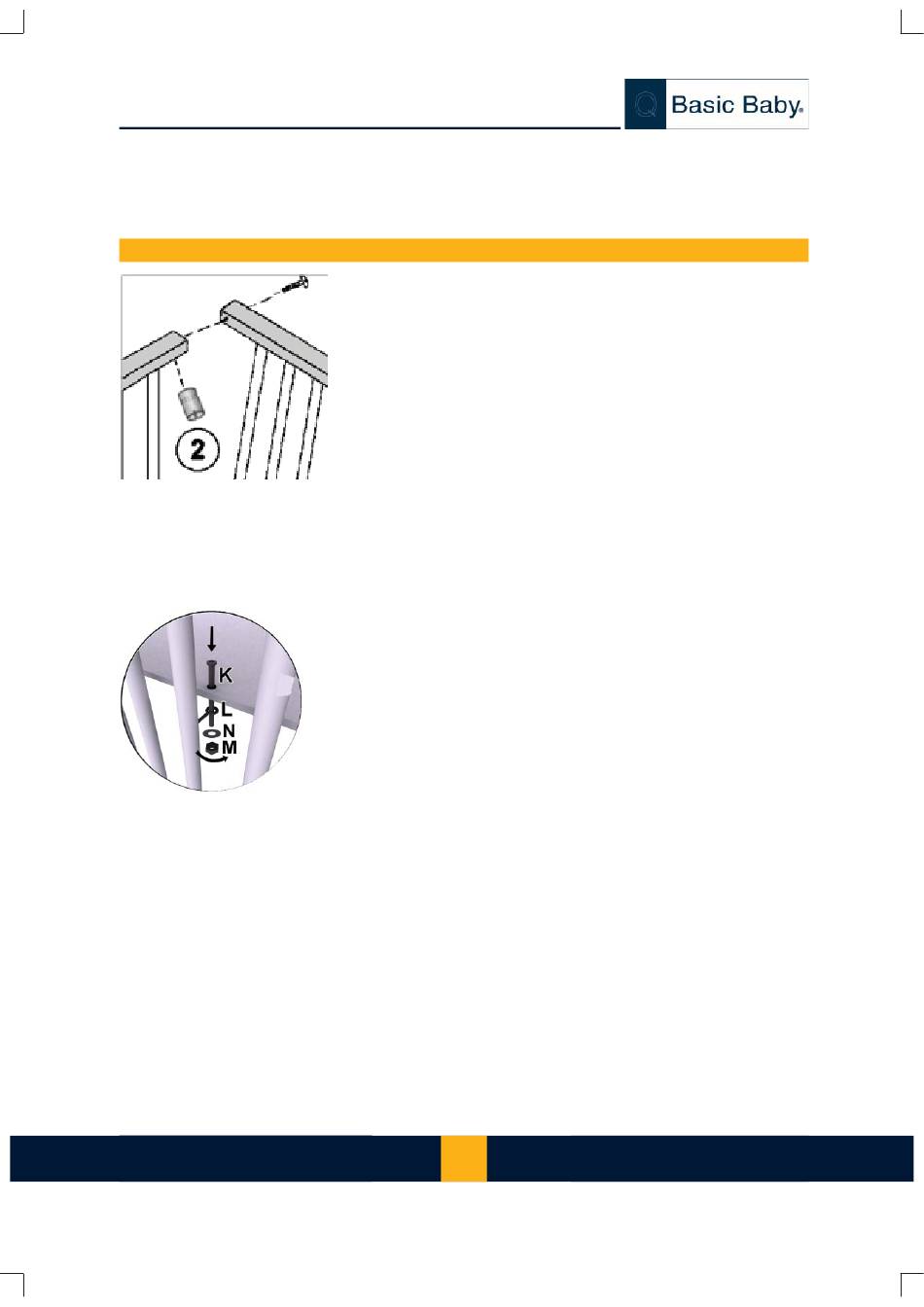

Step 1 : drawing 1 and 2
Place a short H and a long framework G next to one another. Insert a dowel B into the drilled hole in the
traverse of the framework G. Make sure that the opening in the dowel faces the screw. Now place the
screw A into the opening of the opposite framework H and fasten. Repeat this action for the remaining 3
corners. Do not tighten fully.
Step 3 : Changing the position of the base
Redo all actions of step 2 in reversed order. Replace the crochet hooks on a different level and repeat step
2.
Step 4
First push the black cap on the metal rod of the wheel and then insert the wheel in the pre-drilled hole.
Caution! Do not hammer.
Kinderpark met verstelbare bodem
Laufgitter mit verstelbarer Boden
info@basicbaby.be
Step 2 : Use the parts of step 2, the bottom (F), 4 crochet hooks (L), 4 spa-
cers (N), 4 bolts (K) and the 4 nuts M6 (M)
Place the crochet hooks in the provided openings on the wooden bars of the
long sides. Pay attention that the four of these are on the same height of one
of the possible positions for the base. Insert the base F into the playpen and
let it rest on the crochet hooks. Push a short bolt through an opening of the
base and the underlying crochet hook, place one spacer, a nut and thighten
slightly. Repeat for the remaining three bolts. Finally tighten all fi rmly.
