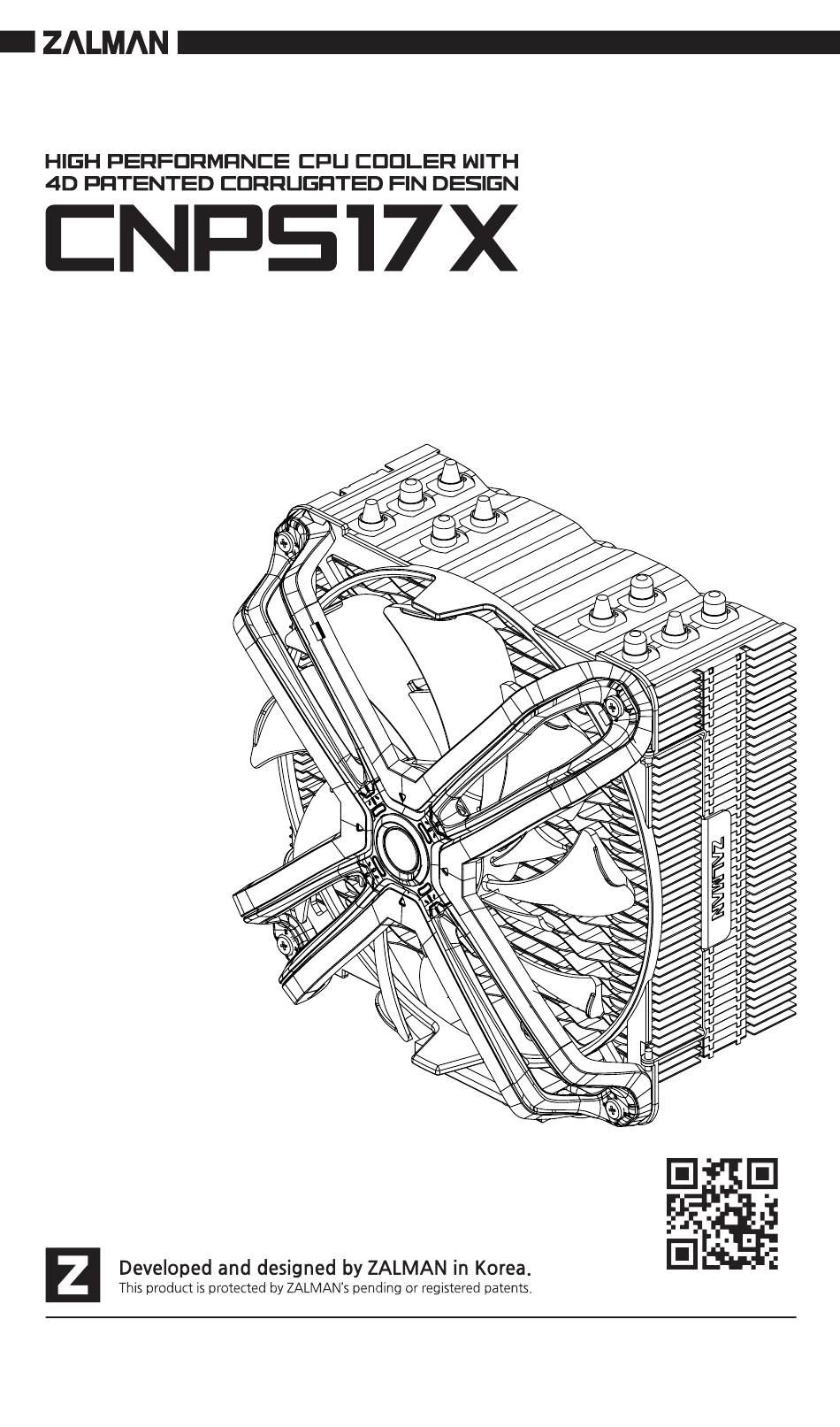

User's Manual
Ver. 110719
Latest Intel & AMD Compatible
Intel Socket LGA2066/2011-V3/2011/115X CPUs
AMD Socket AM4/AM3+/AM3 CPUs
www.zalman.com
* To ensure safe and easy installation, please read the following precaution.
1
* Product design and specifications may be revised to improve quality and performance without notice.

Werbung

loading

Verwandte Anleitungen für ZALMAN CNPS17X

Inhaltszusammenfassung für ZALMAN CNPS17X

  • Seite 1 Latest Intel & AMD Compatible Intel Socket LGA2066/2011-V3/2011/115X CPUs AMD Socket AM4/AM3+/AM3 CPUs www.zalman.com * To ensure safe and easy installation, please read the following precaution. * Product design and specifications may be revised to improve quality and performance without notice.

  • Seite 2: Sicherheitshinweise

    ■ Au cours du transport du système, le refroidisseur doit être retiré. Zalman Tech Co., Ltd. n'est pas responsable de tout dommage qui pourrait survenir au cours du transport d'un système.

  • Seite 3: Меры Предосторожности

    ■ Zalman Tech Co., Ltd. no se responsabiliza de los daños que se produzcan en el «overclocking» de la CPU, como en la propia CPU como en los componentes del sistema.
  • Seite 4 ■ A Zalman Tech Co., Ltd. não se responsabiliza por quaisquer danos ao CPU, bem como aos componentes do sistema, causados por overclocking. ■ Durante o transporte do sistema, o refrigerador deve ser removido. A Zalman Tech Co., Ltd. não se responsabiliza por quaisquer danos que ocorram durante o transporte de um sistema.

  • Seite 5: Środki Ostrożności

    ■ Cégünk nem vállal felelősséget a termék szakszerűtlen vagy nem megfelelő használatából eredő problémákért. ■ Zalman Tech Co., Ltd. Is not responsible for any damages dne to overclocking CPU such as, CPU and system components.
  • Seite 6 ■ La nostra azienda non si assume alcuna responsabilità per eventuali problemi dovuti all’utilizzo del prodotto per scopi diversi da quelli per i quali è progettato e/o per negligenza del cliente. ■ Zalman Tech Co., Ltd. non è responsabile di alcun danno a CPU overcloccate e componenti della CPU e del sistema.
  • Seite 7 Specifications Model CNPS17X Materials Pure Copper, Pure Aluminum Dimensions 140(L) x 100(W) x 160(H)mm Weight 700g Heat Dissipation Area 6,243㎠ Dimensions 140 x 140 x 26(H)mm Bearing Type FDB(Fluid Dynamic Bearing) Fan Speed 800~1,500 RPM ±10% Fan(s) Max Noise Level 29 dB(A) ±10%...
  • Seite 8 INTEL, AMD Backplate 1) Nuts Position ① ① AM4 ② ③ ② 115X ③AM3 Caution Please check the proper ZALMAN logo direction on backplate for each Intel and AMD socket. No backplate is necessary for Intel LGA2066 /2011-V/2011 socket. 2) 115X...
  • Seite 9 3) AM3 4) AM4 Caution Take note of the orientation of the nuts and the side caps.
  • Seite 10 INTEL, AMD Loading Block 1) Intel 2) AMD Loading Block(Intel) Loading Block(AMD) Caution Remove the tape cover of loading block and attach it to the backplate. 1. Intel Users 1) LGA2066 / 2011-V3 / 2011 Stand-offs(B) Intel Guide Stand-off Nuts 2) Nuts Position Caution Backplate is not needed for LGA2066 / 2011-V3 / 2011 sockets.
  • Seite 11 Fixing Bolts Detail Image Caution Screw-in both bolts in an alternating fashion until they are completely tightened. Fan Screws Fan Guide Fan Clips Caution Please install Fan in the center of the heat sink for maximum performance in case of no interference of RAM.
  • Seite 12 2)115X Washers Stand-offs(A) Stand-off Nuts Intel Guide 3) Nuts Position Thermal Compound Fixing Bolts Detail Image Caution Screw-in both bolts in an alternating fashion until they are completely tightened.
  • Seite 13 Fan Screws Fan Guide Fan Clips Caution Please install Fan in the center of the heat sink for maximum performance in case of no interference of RAM.
  • Seite 14 2. AMD Users 1) AM3 / AM4 Washers Stand-offs(A) AMD Guide Stand-off Nuts 2) Nuts Position Caution Please be cautious for the direction of AMD Guide installation. Thermal Compound Fixing Bolts Detail Image Caution Screw-in both bolts in an alternating fashion until they are completely tightened.
  • Seite 15 Fan Screws Fan Guide Fan Clips Caution Please install Fan in the center of the heat sink for maximum performance in case of no interference of RAM.

  • Seite 16: Cable Connection

    3. Cable Connection 1) Connection to other motherboards LED Cable PWM Fan Cable 2) Connection to Gigabyte motherboards LED Cable Gigabyte Cable PWM Fan Cable 4. Fan Specifications Dimensions : 140 x 140 x 26(H)mm Speed : 800 ~ 1,500 ±10% RPM Max Noise Level : 29 dB(A) ±10% Bearing Type : FDB (Fluid Dynamic Bearing) Max Airflow : 61 CFM ±10% Pin Connector : 4-Pin (PWM),...
  • Seite 17 제품 보증서 제품명 모델명 구입일 년 월 일 Serial No. 구입처 판매 금액 1. 품질 보증기간 : 제품 구입일로부터 1년. (단, 구입 영수증이 있을 때) 2. 무상 A/S : 품질 보증기간 내에 제품 자체 성능 상의하자 및 불량 발생 시. 3.
  • Seite 18 Memo...
  • Seite 19 Memo...
  • Seite 20 www.zalman.com...
