Palmer PAN03 Anleitung

SAFETY INFORMATION
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make cer-
tain that wall mounts are properly installed and secured. Make certain that the equipment is installed
securely and cannot fall down.
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat.
Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor
equipment - in this case, observe the special instructions noted below. Do not expose this equipment
to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers
filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Open the device for changing the battery, do not modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due
to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property
damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equip-
ment or if it has been damaged in another way, switch it off immediately and unplug it from the
mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified
personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please sep-
arate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.
22. If the equipment has been exposed to strong fluctuations in temperature (for example, after trans-
port), do not switch it on immediately. Moisture and condensation could damage the equipment. Do
not switch on the equipment until it has reached room temperature.
23. Do not step on the power cord. Make certain that the power cable does not become kinked, especially
at the mains outlet and/or power adapter and the equipment connector.
24. When connecting the equipment, make certain that the power cord or power adapter is always freely
accessible. Always disconnect the equipment from the power supply if the equipment is not in use
or if you want to clean the equipment. Always unplug the power cord and power adapter from the
power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and
power adapter with wet hands.
25. To disconnect the equipment from the power mains completely, unplug the power cord or power
adapter from the power outlet.
26. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike
or before extended periods of disuse.
CAUTION:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.
CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!
This equipment is intended for professional use. Therefore, commercial use of this equipment is subject
to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam
Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to
high volume and prolonged exposure: When in use, this product is capable of producing high sound-pres-
sure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience
members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at: http://www.adamhall.com/media/
shop/downloads/documents/manufacturersdeclarations.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu
Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance
may not be treated as household waste. This is to avoid environmental damage or personal injury due
to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it
recycled to promote sustainable economic activity.
All manuals and user guides at all-guides.com
© Palmer Musical Instruments, Adam Hall GmbH, D-61267 Neu-Anspach, Daimlerstr. 9, Germany TEL: ++49 (0)6081 94190
FAX: ++49 (0)6081 43280 WEB: www.adamhall.com, www.palmer-germany.com EMAIL: info@palmer-germany.com

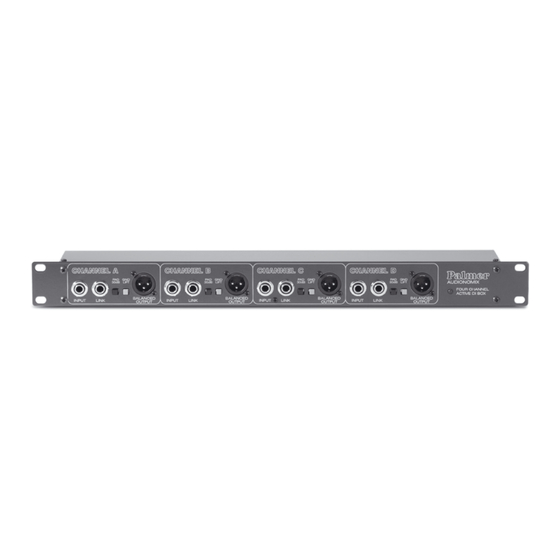

PAN03 – 19" DI BOX 4-CHANNEL ACTIVE
SCOPE OF APPLICATION
Unbalanced hi-Z cables are susceptible to hum pickup and interference and must be kept short to
maintain low noise levels, and to prevent high frequency roll-off due to cable capacitance. To avoid these
problems DI boxes convert unbalanced hi-Z line level signals to balanced lo-Z signals which can then be
fed to the microphone inputs of mixing consoles. Professional studio and stage applications use balanced
lo-Z signal transfer almost exclusively. The Palmer PAN03 is an active 1U 19" rack-mount DI box with
4 independent channels. It is the perfect solution wherever multiple signals must be balanced simulta-
neously. The PAN03 Active is powered by a mains adapter that is permanently attached to the unit. This
provides much higher operating voltages than battery power significantly improving dynamic response
and headroom. All connectors and switches are located at the front. In addition, parallel XLR outputs are
provided at the rear of the unit for rack wiring convenience.
CONNECTIONS
The 4 independent channels of the PAN03 Active (A, B, C, and D) provide identical features. Line level
signals such as keyboard signals are fed to the INPUT using a high quality shielded instrument cable (6.3
mm TS). For simultaneous connection to an instrument amplifier use the LINK output which is wired in
parallel. CAUTION – do NOT use the LINK connector for signal input! All unbalanced instrument cables
should be as short as possible, and the PAN03 should be located close to the unbalanced source.
The balanced lo-Z output signal is available at both the front and rear male XLR connectors. These are
wired to the international standard (pin 2 = hot) and electrically connected in parallel. The front and rear
XLR ouputs can also be used for signal splitting, however, simultaneous use with extreme lo-Z loads may
result in some loss of level. Use shielded balanced microphone cable for connection to a mixing console
input. Cable length is basically uncritical with no audible signal degradation at 100 meters and beyond
(300' +). After wiring the PAN03 Active connect the mains adapter to a suitable outlet. Mains power is
indicated by a dedicated LED at the front of the unit. To prevent pops during power-up the respective
mixing desk channels should be muted.
30dB PAD and GND LIFT Switches
The PAN03 can also be used to feed loudspeaker level signals to a mixing console by connecting the
amplifier output to a PAN03 channel INPUT, and the corresponding LINK output to a loudspeaker. Use
dedicated loudspeaker cable only for both connections (16AWG minimum). Due to the much higher level
of loudspeaker signals (compared to instrument and line level signals) the PAD 30dB switch must be
engaged. To prevent clipping the amplifier should not be rated higher than 100W.
WARNING! Tube amplifiers ALWAYS require an appropriate load at their outputs. Do NOT connect
the PAN03 to tube amplifiers without connecting an appropriate loudspeaker enclosure to the
amplifier to prevent permanent damage to both units.
The PAD switch can also be used to attenuate the output level to mixing desks that do not provide atten-
uation of strong line level signals. The shield of standard microphone cable is wired to pin 1 of the XLR
connectors at both ends also connecting the equipment grounds which may result in ground loop hum.
Since grounding at one end only provides sufficient shielding the PAN03's GND LIFT switch disconnects
pin 1 from ground to prevent ground loops and hum. Let your ears be the judge and always set the switch
to the position with minimum interference.
PAN03 Chassis Ground
The casing of 19" units is almost always grounded via the rack rails they share. To prevent dual grounding
the PAN03's chassis is internally disconnected from the electric ground.
TECHNICAL SPECIFICATIONS
Product Type: DI box
Type: active
Channels: 4
Inputs: 4
Input Connections: 6.3 mm Jack
Max. Input Level: + 45 dBu
Input Impedance: ((at) 60 Hz) 1 M Ohm(s)
Input Pad: 0 / -30 dB
Outputs: 4 (+ 4 parallel XLR outs)
THRU Outputs / Channel: 1
Output Connections: XLR, 6.3 mm Jack
Output Impedance: 600 Ohm(s)
Max. Output Levels: + 10 dBd
Transformer-balanced: yes
Ratio: 10:1
Display: Power
Controls: ground lift, attenuator
Operating Voltage: external
Housing Material: sheet steel
Housing Surface: powder coated
480 mm / 19 "
Width:
Depth: 90 mm
Height: 45 mm / 1 U
Weight: 1.6 kg
