Palmer PRMMS8 Kurzanleitung

PRMMS8
8-CHANNEL MICROPHONE SPLITTER
SAFETY INFORMATION
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information
from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed instal-
lations). Make certain that wall mounts are properly installed and secured. Make
certain that the equipment is installed securely and cannot fall down.
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or
other sources of heat. Make certain that the equipment is always installed so that is
cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to spe-
cial outdoor equipment - in this case, observe the special instructions noted below.
Do not expose this equipment to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not
place containers filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by
the manufacturer.
15. Open the device for changing the battery, do not modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or
accidents, e.g., due to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly
cause property damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten
inside the equipment or if it has been damaged in another way, switch it off
immediately and unplug it from the mains outlet (if it is a powered device). This
equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packag-
ing, please separate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.
22. If the equipment has been exposed to strong fluctuations in temperature (for ex-
ample, after transport), do not switch it on immediately. Moisture and condensation
could damage the equipment. Do not switch on the equipment until it has reached
room temperature.
23. Do not step on the power cord. Make certain that the power cable does not
become kinked, especially at the mains outlet and/or power adapter and the
equipment connector.
24. When connecting the equipment, make certain that the power cord or power
adapter is always freely accessible. Always disconnect the equipment from the
power supply if the equipment is not in use or if you want to clean the equipment.
Always unplug the power cord and power adapter from the power outlet at the
plug or adapter and not by pulling on the cord. Never touch the power cord and
power adapter with wet hands.
25. To disconnect the equipment from the power mains completely, unplug the power
cord or power adapter from the power outlet.
26. Unplug the power cord and power adapter from the power outlet if there is a risk of
a lightning strike or before extended periods of disuse.
CAUTION:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
There are no user serviceable parts inside. Have repairs carried out only by qualified
service personnel.
CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!
This equipment is intended for professional use. Therefore, commercial use of this equip-
ment is subject to the respectively applicable national accident prevention rules and
regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the
existence of potential health risks. Hearing damage due to high volume and prolonged
exposure: When in use, this product is capable of producing high sound-pressure levels
(SPL) that can lead to irreversible hearing damage in performers, employees, and audi-
ence members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
www.adamhall.com/media/shop/downloads/documents/manufacturersdeclarations.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Daimler
Straße 9, 61267 Neu Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates
that this appliance may not be treated as household waste. This is to avoid environmental
damage or personal injury due to uncontrolled waste disposal. Please dispose of this
product separately from other waste and have it recycled to promote sustainable
economic activity.
SIMPLIFIED UK DECLARATION OF CONFORMITY
Hereby, Adam Hall Ltd. declares that the radio equipment type (Radio Equipment
Regulations 2017) is in compliance with Directive SI2017/1206. The full text of the
UK declaration of conformity is available at the following internet adress:
www.adamhall.com/compliance
For use in dry indoor environments.
Palmer® is a registered brand of the Adam Hall Group
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany
Adam Hall Ltd. | The Seedbed Bus. Centre | SS3 9QY Essex | UK

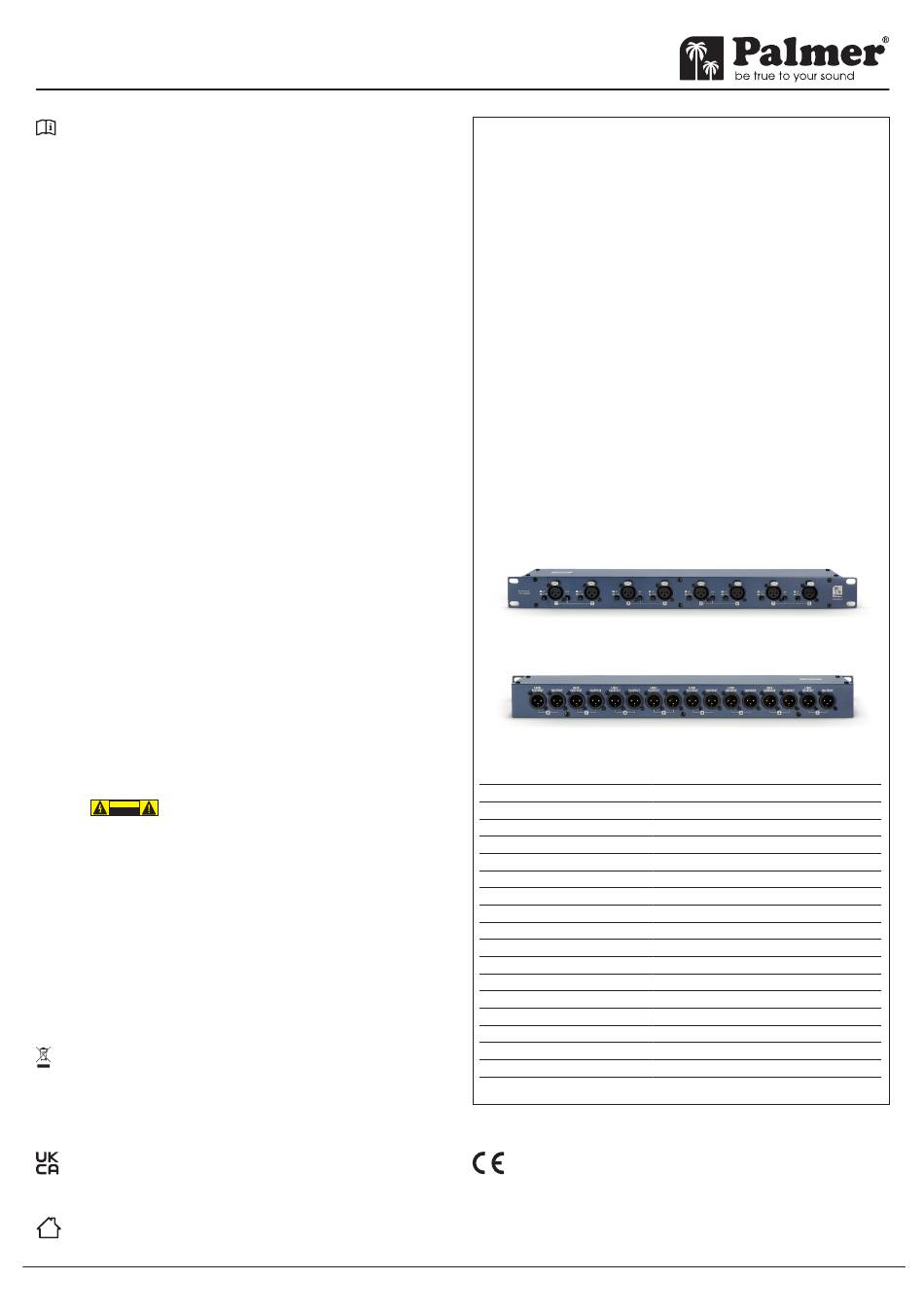

INTRODUCTION

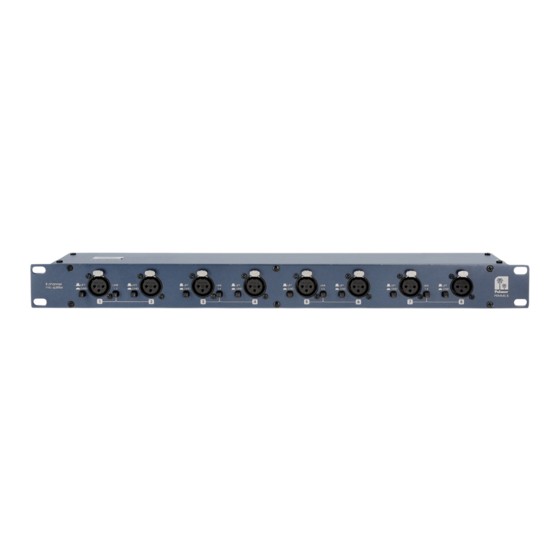

This ultra low noise 1U 19" microphone splitter provides eight balanced XLR
input channels each with two transformer isolated balanced XLR outputs.
For extra versatility, the front panel LINK switches allow you to route a single
input signal to multiple outputs, e.g. to simultaneously feed FOH, monitor,
recording and broadcast mixing consoles. Alternatively, they let you merge
two input signals into a single output or sum L and R stereo signals to
mono. In addition, each channel features a ground lift switch to eliminate
hum and interference.
1 CHANNEL INPUT WITH GROUND LIFT SWITCH
In the up position, this switch breaks the ground connection between the
channel's XLR input and outputs. This eliminates hum and interference
caused by ground loops resulting from electronic equipment connected
to the channel's input and outputs.
2 LINK SWITCH
In the down position, the LINK switches combine channels 1+2, 3+4, 5+6
and 7+8 respectively. This doubles the number of outputs for a single input
or lets you merge the channel pairs' input signals into a single output
signal, e.g. for mono summing stereo signals.
3 CHANNEL OUTPUTS
The LINK OUT delivers the respective channel's direct input signal while the
OUT connector provides a transformer isolated signal.
NOTE: Phantom power to condenser microphones or DI boxes must be
provided by equipment connected to the LINK ouputs. Because of the use
of transformers, the isolated outputs cannot pass phantom power to the
channels' inputs.
SPECIFICATIONS
Product Type:
Type:
Split type:
Channels:
Inputs
Input connectors:
Max. input level:
Split-outputs per channel:
THRU outputs / channel:
Max. Output Level:
Output connectors:
Transformer isolated outputs:
Housing Material:
Housing Finish:
Width:
Depth:
Height:
Weight:
CE CONFORMITY
Adam Hall GmbH hereby confirm that this product meets the following guidelines
(where applicable):
Low-Voltage Directive (2014/35/EU)
EMC Directive (2014/30/EU)
RoHS (2011/65/EU)
RED (2014/53/EU)
info@adamhall.com | adamhall.com
Designed and engineered in Germany, assembled in P .R.C.
Splitters
Mic split
1 in 1 +1
8
1
XLR
+ 5 dBu
1
1
+5 dBu
XLR
Yes
Sheet steel
Powder coated
483 mm / 19"
73 mm
44.5 / 1U mm
1.29 kg
