4 – EN LCI adapter FOR DIGITAL POSITIONERS TZIDC | OI/LCI-ADAPTER/POSITIONER-XA REV. A

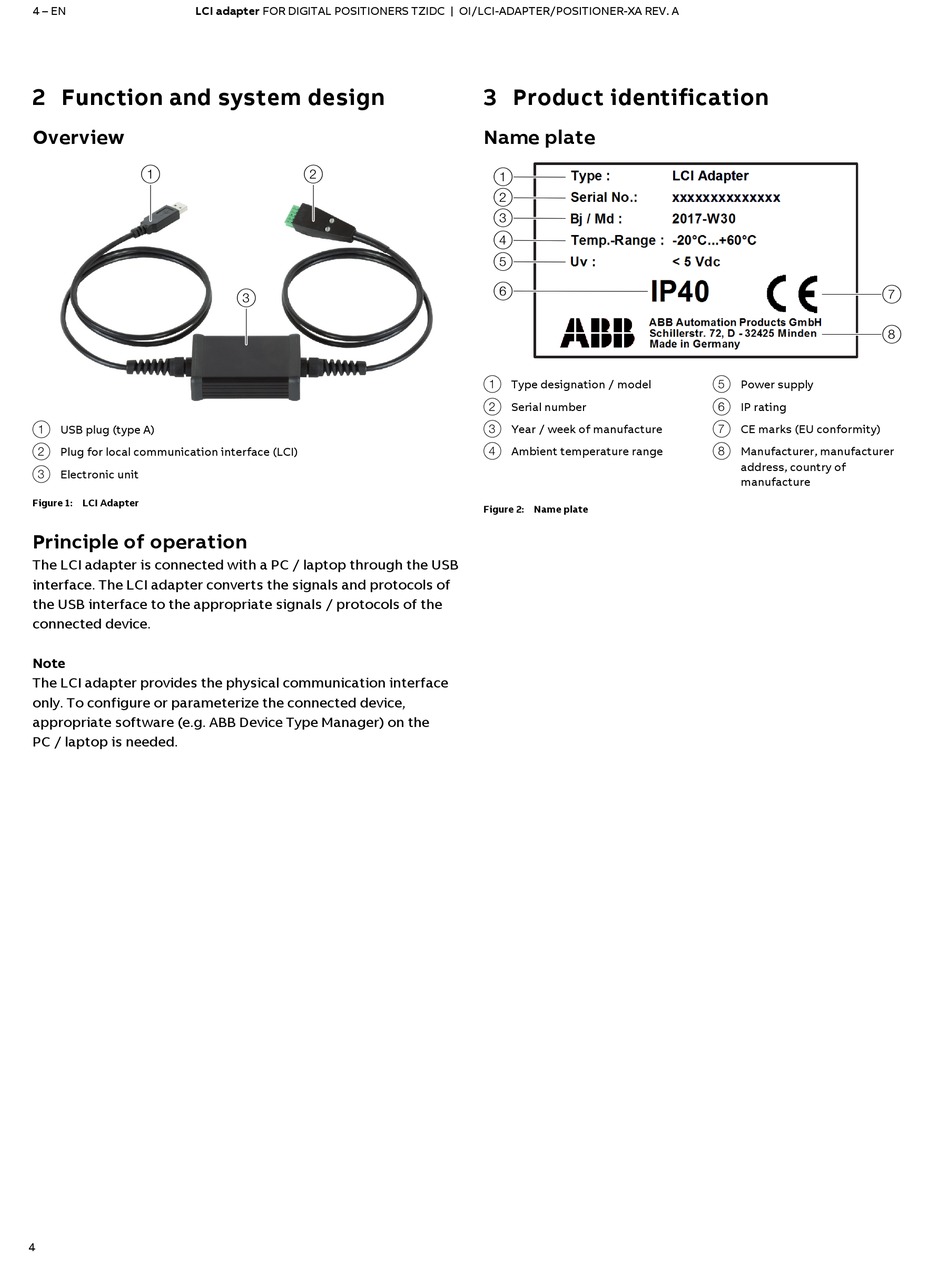

2 Function and system design
Overview
1
1 USB plug (type A)
2 Plug for local communication interface (LCI)
3 Electronic unit
Figure 1: LCI Adapter

Principle of operation

The LCI adapter is connected with a PC / laptop through the USB
interface. The LCI adapter converts the signals and protocols of
the USB interface to the appropriate signals / protocols of the
connected device.
Note
The LCI adapter provides the physical communication interface
only. To configure or parameterize the connected device,
appropriate software (e.g. ABB Device Type Manager) on the
PC / laptop is needed.
4
2
3

3 Product identification

Name plate
1
2
3
4
5
6
1 Type designation / model
2 Serial number
M11242
3 Year / week of manufacture
4 Ambient temperature range
Figure 2: Name plate
7
8
M11243
5 Power supply
6 IP rating
7 CE marks (EU conformity)
8 Manufacturer, manufacturer
address, country of
manufacture
