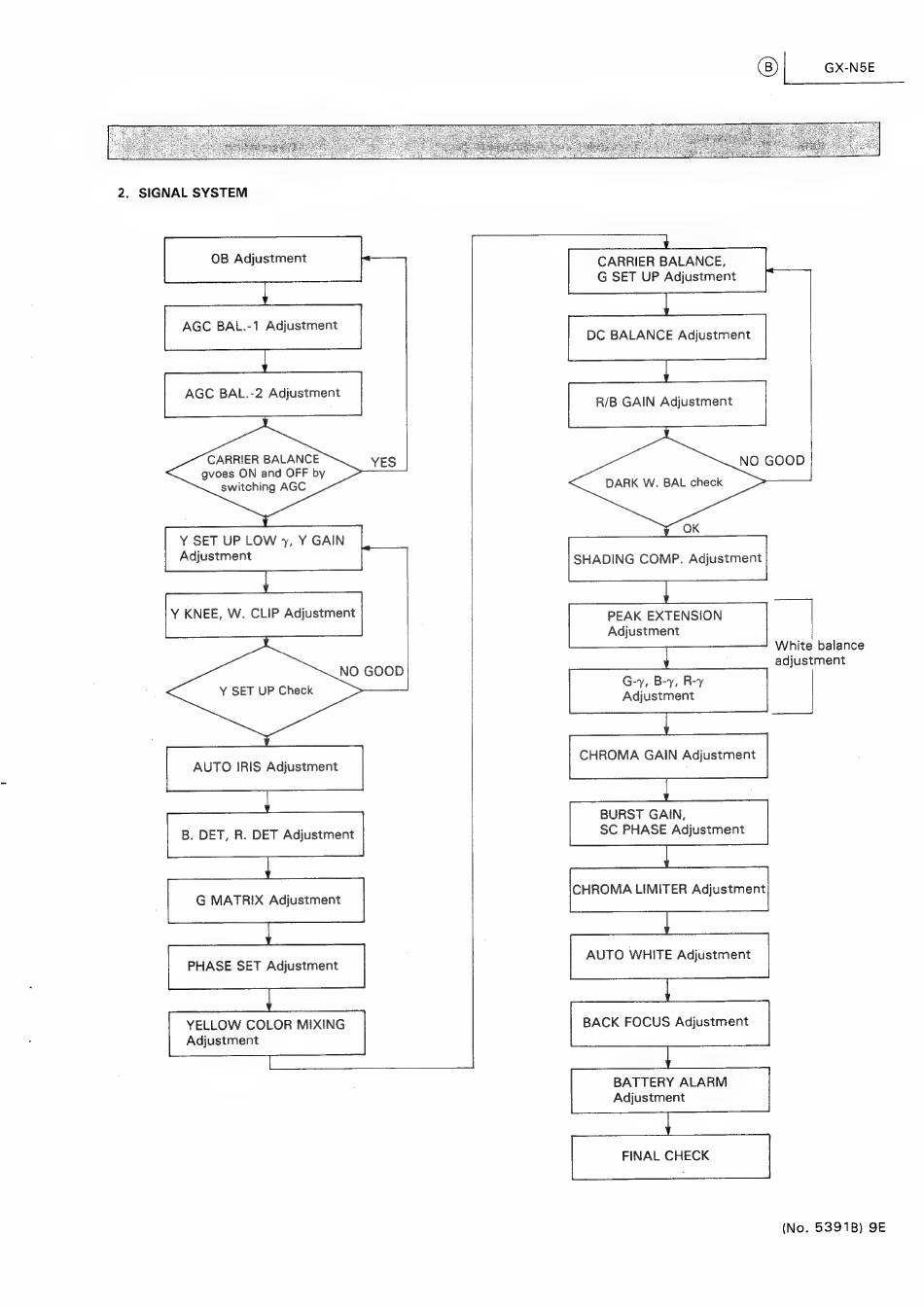

2. SIGNAL SYSTEM
OB Adjustment
AGC BAL.-1 Adjustment
AGC BAL.-2 Adjustment
CARRIER BALANCE
gvoes ON and OFF by
switching AGC
Y SET UP LOW y, Y GAIN
Adjustment
Y KNEE, W. CLIP Adjustment
AUTO IRIS Adjustment
B. DET, R. DET Adjustment
[
G MATRIX Adjustment
|
PHASE SET Adjustment
YELLOW COLOR MIXING
Adjustment
GX-N5E
CARRIER BALANCE,
G SET UP Adjustment
DC BALANCE Adjustment
R/B GAIN Adjustment
DARK W. BAL check
SHADING COMP. Adjustment
PEAK EXTENSION
Adjustment
G-y, B-y, R-y
Adjustment
CHROMA GAIN Adjustment
BURST GAIN,
SC PHASE Adjustment
CHROMA LIMITER Adjustment
AUTO WHITE Adjustment
BACK FOCUS Adjustment
BATTERY ALARM
Adjustment
-
FINAL CHECK
NO GOOD
White balance
adjustment
(No. 5391B) 9E
