9. LED Display Guide

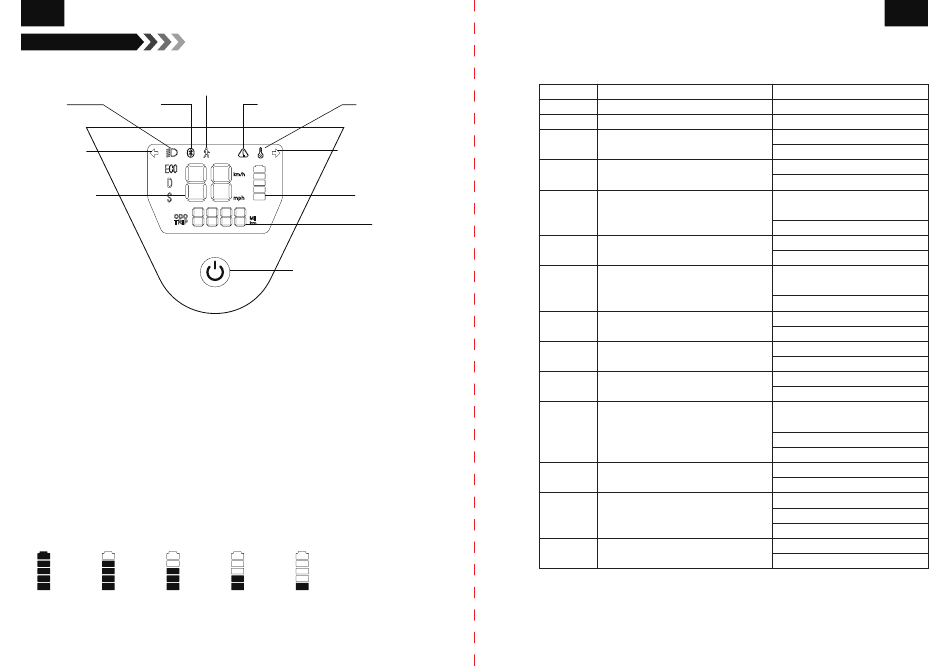

Contents on The Display
Push Mode
Light Mark
Bluetooth
Left Turn Signal
Speed/Error Code
Functions & Operations
Power on/off
Briefly press the ON/OFF button to turn the LED display on. Long Press the button for 3 seconds
to turn the display off.
Headlight on/off
When the display is turned on, press the button twice to turn the headlight on/off.
Shifting Speed Level
When the display is on, briefly press the button to shift among 3 speed levels, including 10/15/25
km/h.
6km/h Push Mode
When the display is on, long press the button for 1.5 seconds to activate the 6km/h push mode.

Battery Level Indicator

81%-100% 61%-80% 41%-60%
07
Malfunction Mark Temperature
Warning
Right Turn Signal
Battery Level
Distance
Button
21%-40% 0%-20%
Error Tracking
When the malfunction mark shows up on the screen, the number at the center of the screen is the
error code. Please check the following problems and solutions.
Error Codes Problems
1, 24-26 Motor/controller faults;
2-23, 27 Controller faults;
28 Undervoltage faults;
29, 31 The temperature of the controller is too high.
30, 32 The temperature of the controller is too low.
33 The temperature of the motor is too high.
34 The temperature of the motor is too low.
35-36 Overcurrent faults;
37 Motor stalling;
38 The speed is too high.
42 Excessively low voltage in throttle (＜0.8V);
43 Excessively high voltage in throttle (＞4.2V);
44, 46 Excessively low voltage in the hand brake;
45, 47 Excessively high voltage in the hand brake;
EN
Solutions
A. Replace the motor or controller;
A. Replace the controller;
A. Charge the battery;
B. Replace the controller;
A. Cool down the controller;
B. Replace the controller;
A. Wait till the temperature of the
controller gets normal;
B. Replace the controller;
A. Cool down the motor.
B. Replace the controller;
A. Wait till the temperature of the motor
gets normal;
B. Replace the controller;
A. Reboot the power;
B. Replace the controller;
A. Reboot the power;
B. Replace the controller;
A. Reboot the power;
B. Replace the controller;
A. Reconnect the throttle control
properly;
B. Replace the throttle kit;
C. Replace the display;
A. Replace the throttle kit;
B. Replace the display;
A. Reconnect the brake properly;
B. Replace the brake kit;
C. Replace the display;
A. Replace the brake kit;
B. Replace the display;
