Operation
EN

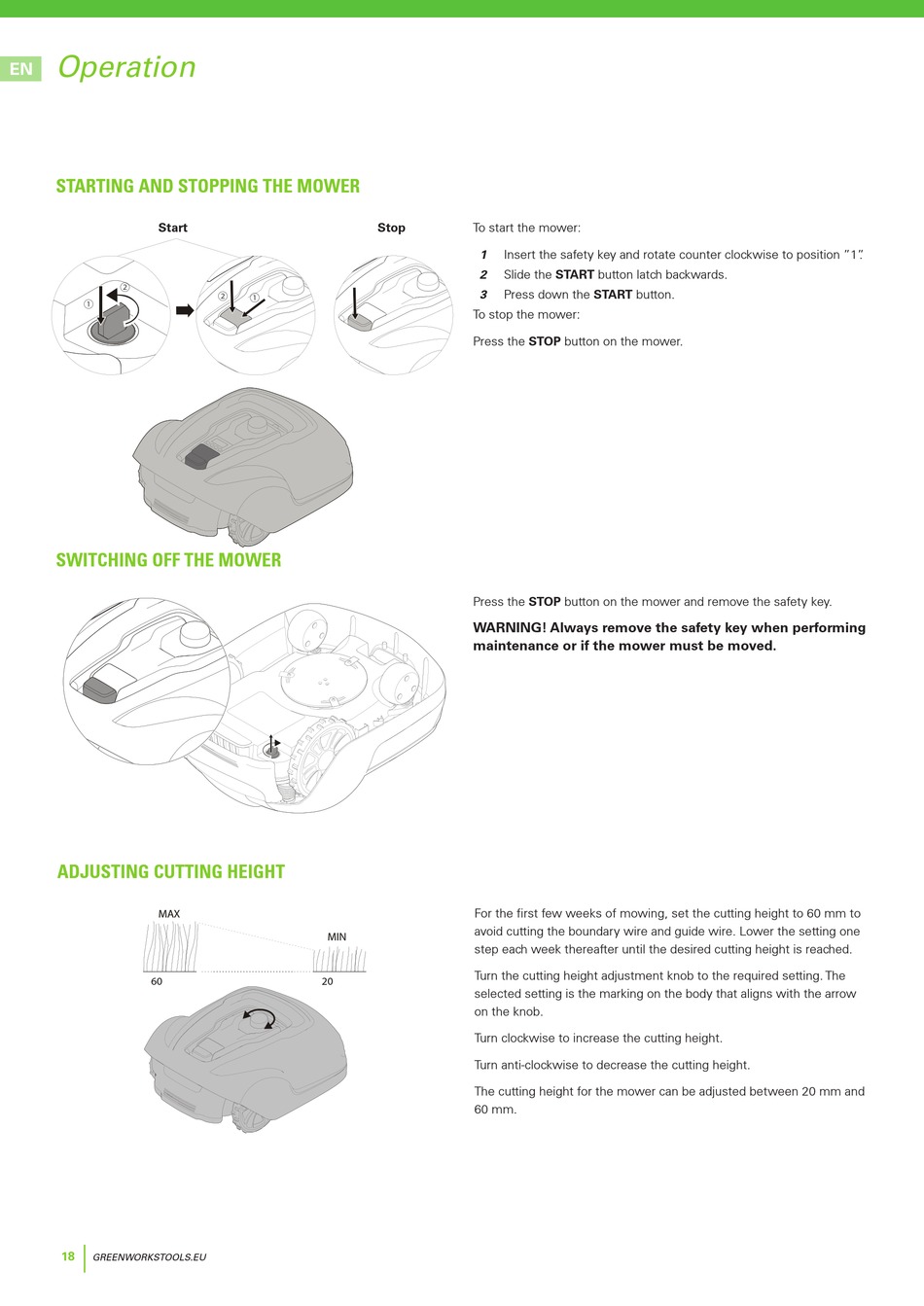

STARTING AND STOPPING THE MOWER
Start
b
a
SWITCHING OFF THE MOWER
ADJUSTING CUTTING HEIGHT
MAX
60
18
GREENWORKSTOOLS.EU
Stop
b
a
MIN
20
To start the mower:
1
Insert the safety key and rotate counter clockwise to position "1" .
2
Slide the START button latch backwards.
3
Press down the START button.
To stop the mower:
Press the STOP button on the mower.
Press the STOP button on the mower and remove the safety key.
WARNING! Always remove the safety key when performing
maintenance or if the mower must be moved.
For the first few weeks of mowing, set the cutting height to 60 mm to
avoid cutting the boundary wire and guide wire. Lower the setting one
step each week thereafter until the desired cutting height is reached.
Turn the cutting height adjustment knob to the required setting. The
selected setting is the marking on the body that aligns with the arrow
on the knob.
Turn clockwise to increase the cutting height.
Turn anti-clockwise to decrease the cutting height.
The cutting height for the mower can be adjusted between 20 mm and
60 mm.
