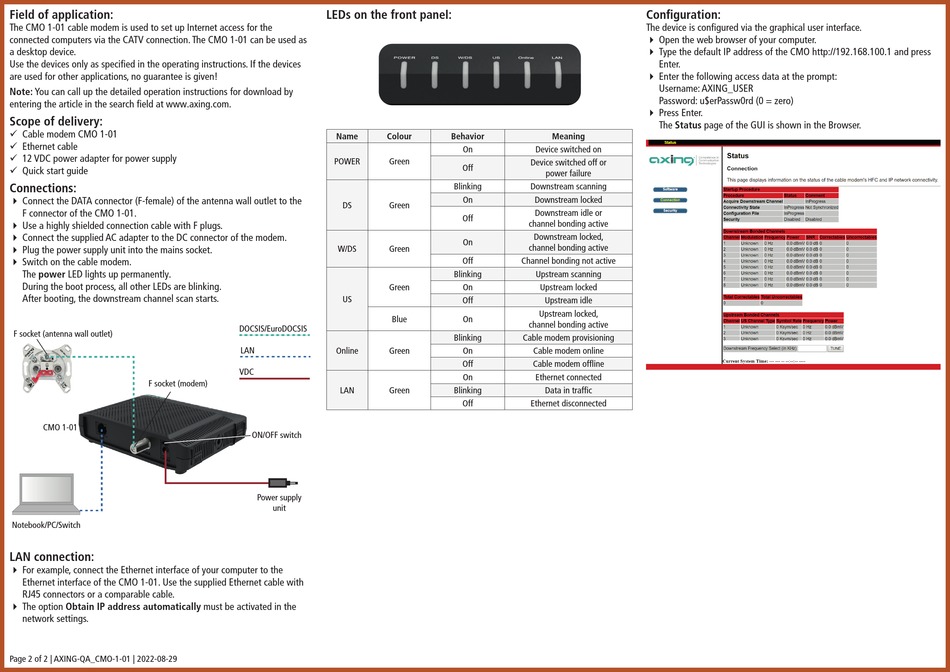

Field of application:
The CMO 1-01 cable modem is used to set up Internet access for the
connected computers via the CATV connection. The CMO 1-01 can be used as
a desktop device.
Use the devices only as specified in the operating instructions. If the devices
are used for other applications, no guarantee is given!
Note: You can call up the detailed operation instructions for download by
entering the article in the search field at www.axing.com.
Scope of delivery:
9 Cable modem CMO 1-01
9 Ethernet cable
9 12 VDC power adapter for power supply
9 Quick start guide
Connections:
 Connect the DATA connector (F-female) of the antenna wall outlet to the
F connector of the CMO 1-01.
 Use a highly shielded connection cable with F plugs.
 Connect the supplied AC adapter to the DC connector of the modem.
 Plug the power supply unit into the mains socket.
 Switch on the cable modem.
The power LED lights up permanently.
During the boot process, all other LEDs are blinking.
After booting, the downstream channel scan starts.
F socket (antenna wall outlet)
F socket (modem)
CMO 1-01
Notebook/PC/Switch
LAN connection:
 For example, connect the Ethernet interface of your computer to the
Ethernet interface of the CMO 1-01. Use the supplied Ethernet cable with
RJ45 connectors or a comparable cable.
 The option Obtain IP address automatically must be activated in the
network settings.
Page 2 of 2 | AXING-QA_CMO-1-01 | 2022-08-29
LEDs on the front panel:
Name Colour
POWER Green
DS Green
W/DS Green
Green
US
Blue
DOCSIS/EuroDOCSIS
LAN Online Green
VDC
LAN Green
ON/OFF switch
Power supply
unit
Behavior Meaning
On Device switched on
Device switched off or
Off
power failure
Blinking Downstream scanning
On Downstream locked
Downstream idle or
Off
channel bonding active
Downstream locked,
On
channel bonding active
Off Channel bonding not active
Blinking Upstream scanning
On Upstream locked
Off Upstream idle
Upstream locked,
On
channel bonding active
Blinking Cable modem provisioning
On Cable modem online
Off Cable modem offline
On Ethernet connected
Blinking Data in traffic
Off Ethernet disconnected
Configuration:
The device is configured via the graphical user interface.
 Open the web browser of your computer.
 Type the default IP address of the CMO http://192.168.100.1 and press
Enter.
 Enter the following access data at the prompt:
Username: AXING_USER
Password: u$erPassw0rd (0 = zero)
 Press Enter.
The Status page of the GUI is shown in the Browser.
