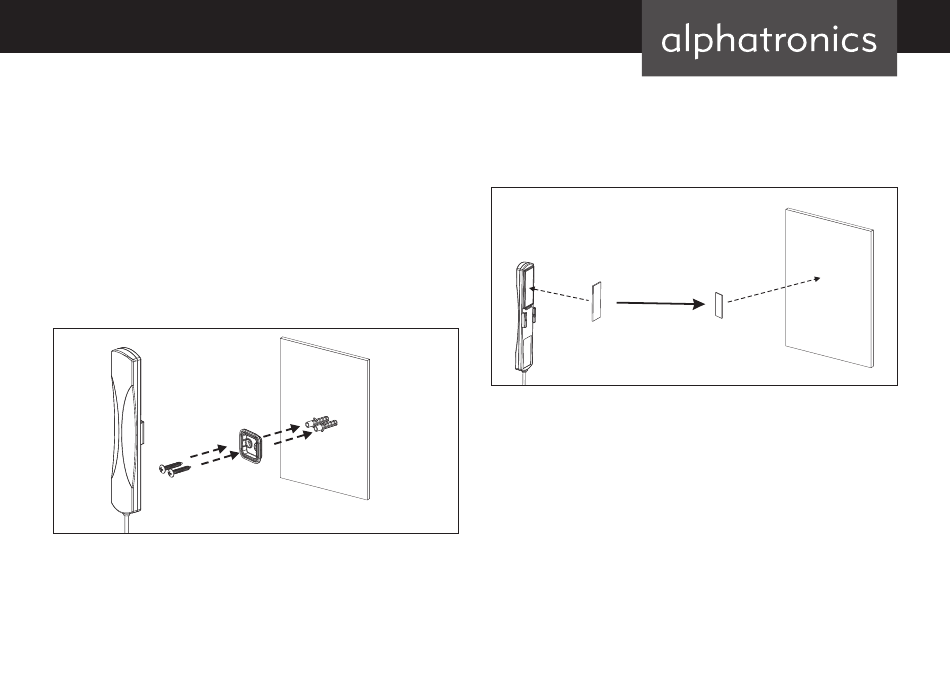

Concrete (reinforced) wall Mounted installation:
Please note, when you use the electric drill, you should wear the eyes
protection goggles.
Step 1: Take the electric drill and use drill bit to drill a 35mm deep hole.
Then clean the hole.
Step 2: Take the plastic screw anchors, using hammer to insert the
anchors into the hole.
Step 3: Take the screws, use screw driver, and screw them through the
fixing holder onto the plastic anchors.
Step 4: Fix the main unit on the fixing holder.
Wall mounted installation with the Velcro tape:
Step 1: Find the fixing position and make sure the antenna can get a
good signal reception. The areas where the Velcro tape should
be placed, needs to be clean.
Step 2: Attach one side of the Velcro tape to the back of the antenna,
and another side of the Velcro tape to the position you want to
fix the antenna.
Step 3: Fix the main unit to the position.
TROUBLE SHOOTING
1. If you can not get the digital programs as you expect, please check
the following conditions:
a. Check the connections. Make sure all connections are correct.
b. Check the antenna power function of your receiver. AN 1 is an
active antenna. You will need to enable the antenna power function.
(Please check the manual of the receiver or TV.)
c. If you place the AN 1 antenna on the TV panel, please try to move
the antenna away from the TV panel. Some panels can reduce the
signal reception.
2. Adjust the direction and position of antenna to find the best reception angle.
