Technical Data:

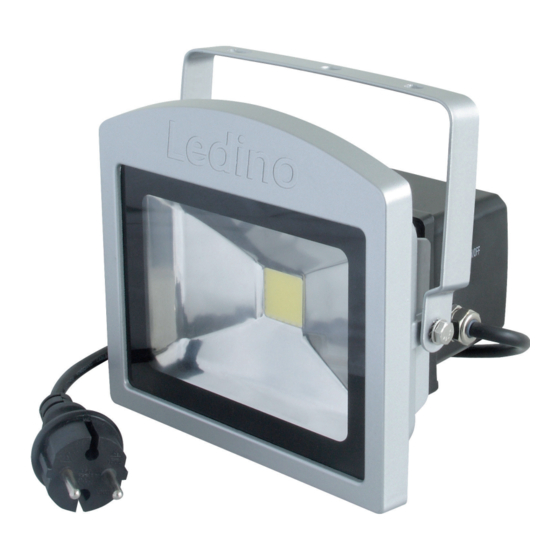

Ledino 10 W LED Anti-Panic Light „Benrath"
11150106001111, with Li-Ion battery 4.4 Ah
10 watts high power LEDs, 100-240 V AC 50/60 Hz, 80 lm/W, power factor ≧ 0.9
800 lumens, cold white 6500 K, CRI > 80 Ra
10 W LED light corresponds to approx. 90 W halogen light
working temperature: -20 up to 50 ° C
120° beam angle, Alu diecast housing (registered design)
LED indicator, protected switch on housing
IP54 - protection against splashing water, built-in AC/DC adaptor
1 m connection cable with „Schuko" plug
4.4 Ah Li-Ion battery (can be re-ordered separatly)
charging time 5 h - minimum 3 h working time
W: 190 mm, H: 215mm, D: 145 mm, 1.38 kg
statutory warranty 2 years (does not apply to battery)
Li-Ion battery have min. 500 charging cycles
Item-No. 11800100004022: Spare part Li-Ion battery 7,4V/ 4,4 Ah
Batteries and rechargeable batteries must not be disposed of with household waste!
Dispose battery separatly.
Every consumer is required by law to bring all batteries and rechargeable batteries,
whether they contain harmful substances or not, to a collection point run by the com-
munal authority or borough or run commercially , so that they can be disposed of in an
environmentally friendly manner. Please only hand in fully discharged batteries !
Used units must not be disposed of with household waste!
Every consumer is required by law to bring all batteries and rechargeable batteries,
whether they contain harmful substances or not, to a collection point run by the com-
munal authority or borough or run commercially , so that they can be disposed of in an
environmentally friendly manner.
Please only hand in fully discharged batteries !
We hereby confi rm that the products are in line with the regulations ‒ and in particular
with the protection requirements ‒ of the European Unionʼs directive on the harmoni-
sation of the legislation relating to electromagnetic compability (2014/30/EU), the low
voltage directive 2014/35/EU, the directive for Energyrelated Products 2009/125/EG and
the RoHS directive 2011/65/EC.
Ledino
Deutschland GmbH
the energy saving company
8
IP54
Spitzahornweg 1
14974 Ludwigsfelde/ Berlin
Germany
Ledino
LED LIGHTING
the energy saving company
Bedienungsanleitung
Benrath
11150106001111
Anti-Panik-Strahler
10 W LED, mit Li-Ionen Akku
1
Werbung
Inhaltszusammenfassung für Ledino Bernrath
- Seite 1 Ledino Benrath Technical Data: Ledino 10 W LED Anti-Panic Light „Benrath“ 11150106001111, with Li-Ion battery 4.4 Ah 11150106001111 LED LIGHTING 10 watts high power LEDs, 100-240 V AC 50/60 Hz, 80 lm/W, power factor ≧ 0.9 Anti-Panik-Strahler the energy saving company 800 lumens, cold white 6500 K, CRI >...
- Seite 2 Instructions for use WICHTIG: The DIN EN 1838 predicates: an anti-panic lighting must exist for: Lesen Sie alle Anweisungen sorgfältig. - Areas (E.g. sales tents) without fixed escape and rescue routes > 60 sqm. Verwenden Sie das Gerät ausschließlich wie in dieser Bedienungsanleitung - for smaller areas, if by a bigger crowd there is increased risk of panic.
- Seite 3 Ledino Benrath Technische Daten: Ledino 10 W LED Anti-Panik-Beleuchtung „Benrath“ 11150106001111, mit Li-Ionen Akku 4,4 Ah 11150106001111 LED LIGHTING 10 Watt LED, 100-240 V AC 50/60 Hz, 80 lm/W, Powerfaktor ≧ 0,9 Anti-Panic Floodlight the energy saving company 800 Lumen, kaltweiß 6500 K, CRI > 80 Ra 10 W LED, with Li-Ion Battery 10 W LED-Licht entspricht ca.
- Seite 4 Gebrauchsanleitung IMPORTANT: Read all instructions carefully. Die DIN EN 1838 sagt: Eine Antipanikbeleuchtung muss vorhanden sein für: - Bereiche (z. B. Verkaufszelte) ohne festgelegte Rettungswege > 60 qm. Only use the unit as described in these instructions. - kleinere Bereiche, wenn durch eine größere Menschenansammlung ein erhöhtes Panik-Risiko besteht. Any other use will be deemed as not in accordance with the instructions and may lead Aufgrund der Trägheit des Auges ist auch bei der Antipanikbeleuchtung auf ein Hell/ Dunkel Verhältnis to damage to property or even injury to persons.
