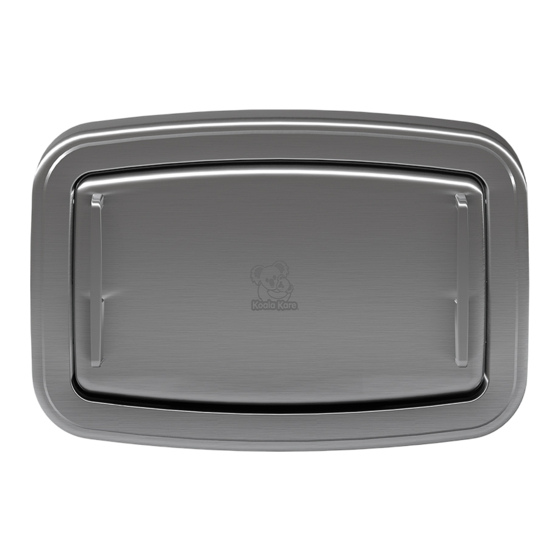

Koala Kare KB310 Anweisungen

KB310
Replacement Handles Instructions
Fig. 1
Fig. 2
Koala Kare Products
A Division of Bobrick
©2022 Koala Kare Products, P/N 310-68 January 2022
Hardware Provided
Allen Wrench
Quantity: 1
Step 1:
• Remove and discard the old handles and set screws.
Step 2:
• Take the provided handles and position them over the
handle mounting studs. Fig. 1
Step 3:
• Use provided Allen wrench to tighten the set screws in
the handles, securing it to the handle mounting studs.
Fig. 2
Step 4:
• Test the unit by opening and closing multiple times,
ensuring it opens and closes smoothly.
Step 5:
• Clean up and close the unit.
6982 South Quentin Street, Centennial, CO 80112-3945
Main: 303.539.8300 | Toll Free: 888.733.3456 | Fax: 303.539.8399
Website: koalabear.com | Email: customerservice@koalabear.com
*Diagrams are not to scale.
