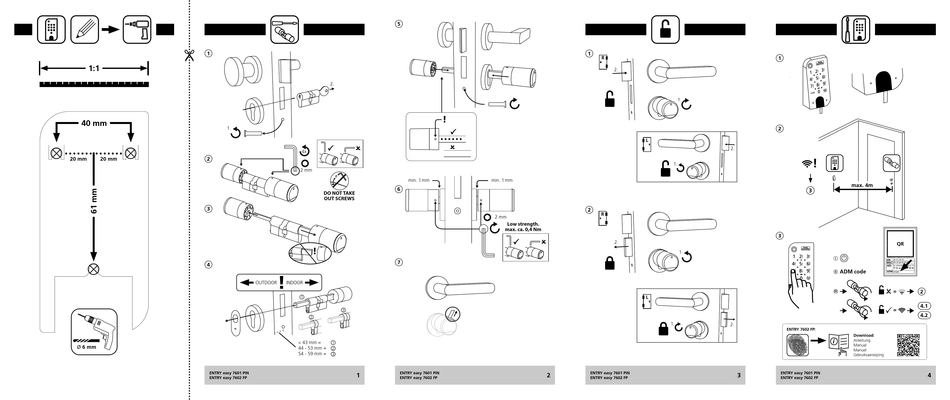

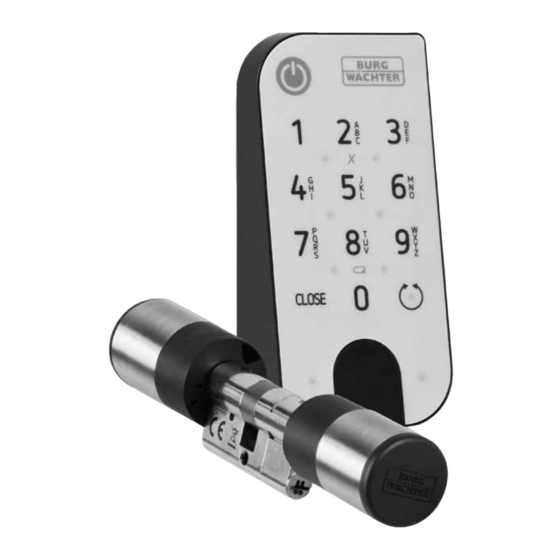

BURG WÄCHTER ENTRY easy 7601 PIN Montageanleitung

1
1:1
40 mm
1.
20 mm 20 mm 2
3
4
Ø 6 mm
ENTRY easy 7601 PIN
ENTRY easy 7602 FP
5
2.
4x
2 mm
min. 1 mm
6
DO NOT TAKE
OUT SCREWS
7
!
OUTDOOR INDOOR
1
3
2
< 43 mm =
1
44 - 53 mm =
2
54 - 59 mm =
3
ENTRY easy 7601 PIN
1
ENTRY easy 7602 FP
1
R
2.
L
min. 1 mm
2
R
2 mm
Low strength.
max. ca. 0,4 Nm
2.
L
1.
ENTRY easy 7601 PIN
2
ENTRY easy 7602 FP
1
1.
2
2.
!
1.
max. 4m
3
3
1.
I
ADM code
II
III
2.
ENTRY 7602 FP:
Download:
i
Anleitung
Manual
Manuel
Gebruiksaanwijzing
ENTRY easy 7601 PIN
3
ENTRY easy 7602 FP
QR
O
= 2
4.1
P =
4.2
4
