OPHARDT HYGIENE SanTRAL Plus SMART ACU 1 Betriebsanleitung Seite 12

INSTRUCTION MANUAL SMART RETROFIT KIT
Assembly (continued)

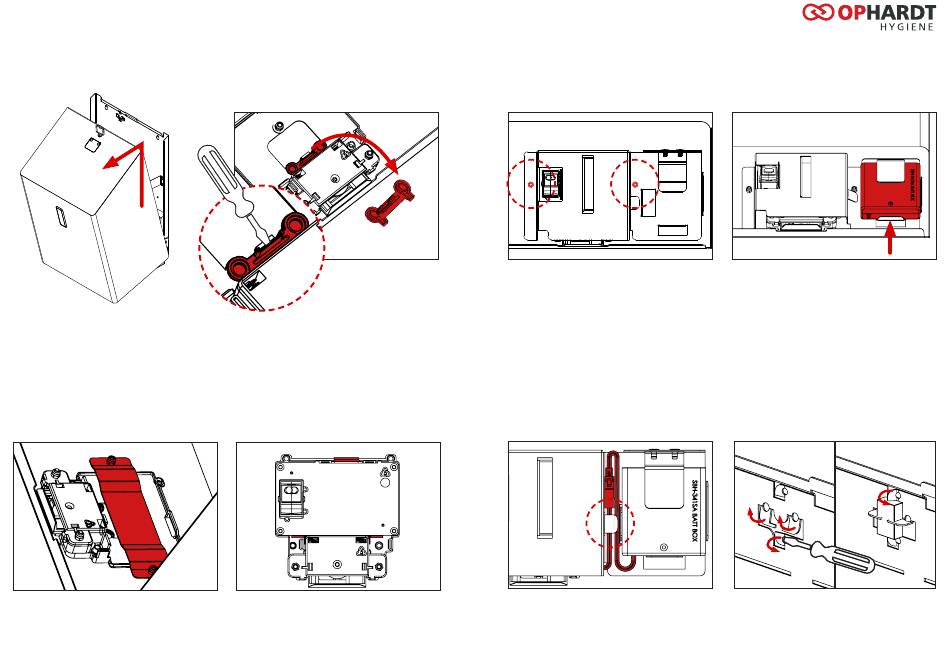

1. Open dispenser with key.
To do this, lift hood and swivel forwards
.
3. Unscrew metal cover (1), remove (2) and
dispose of correctly. On versions without
metal cover, proceed to step 4.
(1)
(1)
22
ACU 1
2. Carefully remove dummy plugs with
a flat head screwdriver.
Dummy plugs
4. Click electronics box into dispenser.
(1) CLICK
(2) CLICK (2) CLICK
5. Place kit cover over electronics box and
secure with two M3 nuts.
7. Join cables of electronics box to cables
of battery box and guide through cable
holder (1) as per diagram.
(1)
6. Fit battery box in holder on kit cover.
8. The magnet holder is located on the in-
side of the backwall of the device. Bend
3 metal tabs of metal holder inwards
using a flat tool (1) then insert magnets
(2) and bend upper tab inwards (3).
Close dispenser.
45°
(3)
90°
90°
(2)
(1)
45°
23
