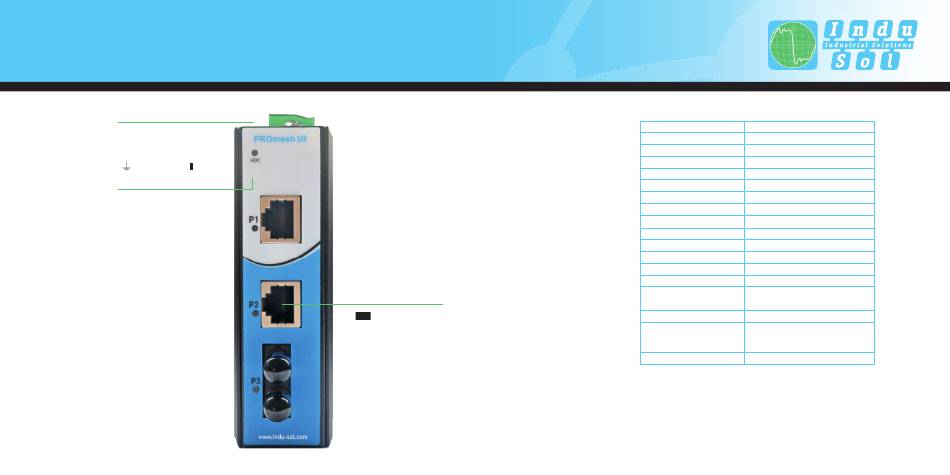

Device Connections

Power Supply
VDC+ = DC 24V
GND = 0V Mass
= Function Ground = Function Ground
Status LEDs
VDC
8

Technical Data

X 1 Dataports
2 x RJ45
1x 100 Mbit/s LWL MM Port 1x 100 Mbit/s LWL MM Port

General Information

Voltage Supply 1x 24 VDC
Max. Power Consumption
1,1 W
Size (H x W x D) 110 x 35 x 95
Weight 352 g
Mounting
35 mm DIN rail
Protection Class
IP40
Storage temperature -40°C .. 85°C
Operating temperature
-40°C .. 75° C
Relative Humidity 5% .. 95%, RHD non-condensing
Backplane Capacity 1 Gbit
Throughput:
0,74 Mpps
Switch memory 1 Mbit
MAC Adress Table 2k
PROFINET Conformance
Class A
Data Ports
2x 10/100 MBit/s RJ45
1x 10/100 MBit/s Fiber MM
Switching Mode Store & Forward
DIP Switch Settings
Jumbo Frame
Storm Suppression
One-Key VLAN
MTBF 523286 h
The PROmesh U3 is an unmanaged Ethernet Switch for industrial automation systems.
It enables uncomplicated installation of bus, star and ring structures with switching
functionality.
