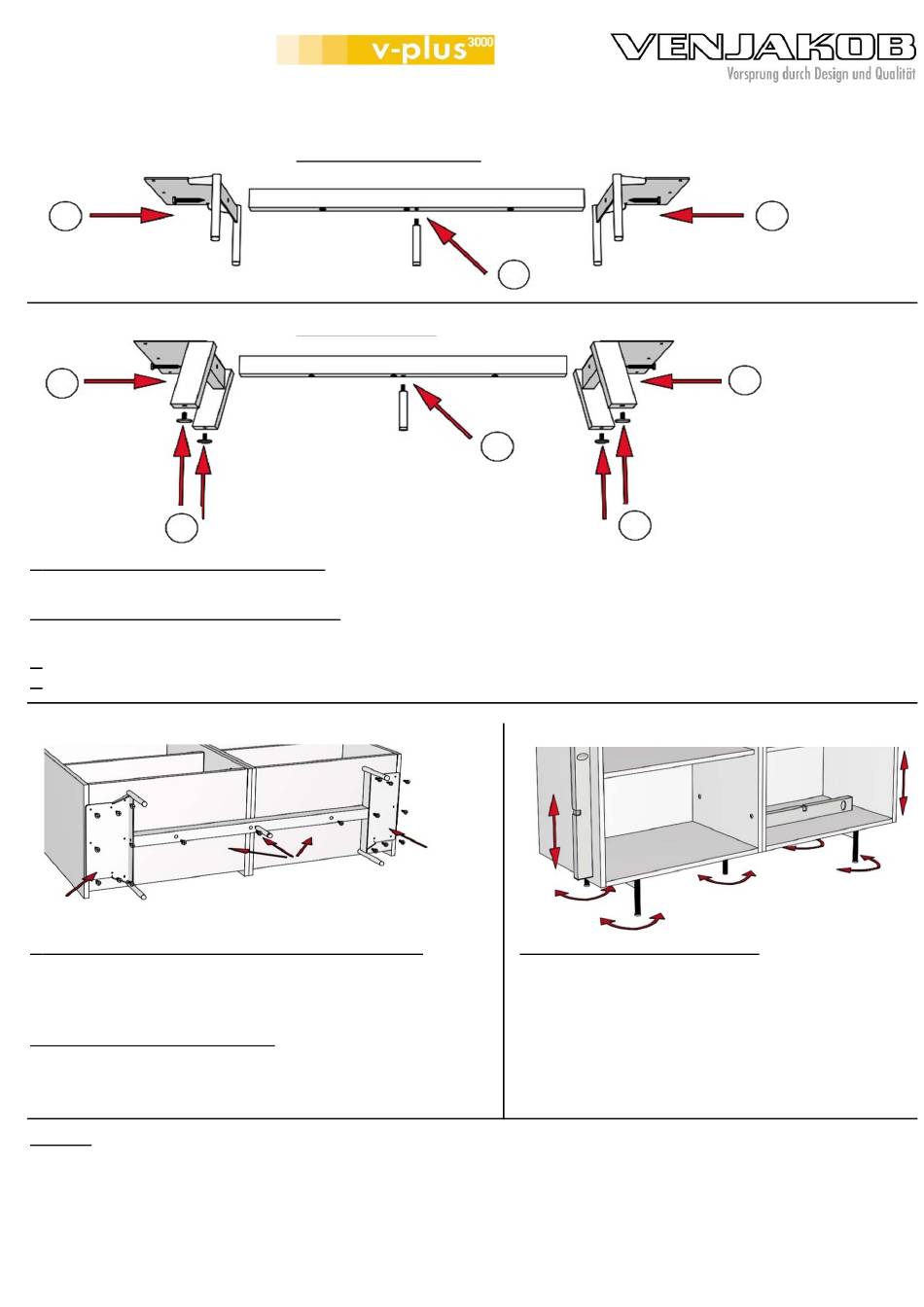

Assembly instruction:
Underframe for standing cabinets (wood / metal)
1
1
2
1. Connecting the metal underframe of Fig. 1: Connect the side parts to the steel frame. To do this, screw in the M6 x 35 mm round-head
screw using the SW4 Allen key.
1. Connecting the wooden underframe of Fig. 2: Connect the side parts to the steel frame. To do this, screw in the M6 x 50 mm
countersunk screw using the SW4 Allen key. Seal the screws with caps.
2. Screw the height-adjusting screws M6 x 20 into the feet (only for wooden underframes).
3. Screw the additional adjusting foot (from furniture widths of 120 cm) centrally below the steel frame into the thread.
Fig. 3
4. Assembly of the underframe (example: metal underframe)
Lay the carcass on its back. Position the underframe under the furniture
at the marking holes. Screw it on with 3 x 16 mm screws Fig. 3 / Fig. 4.
Set up the furniture again.
Additional item - underframe lighting:
Attach LED strips with adhesive strips on the back under the carcass at
the front. If necessary, screw LED strips to marking holes with mounting
clips.
Attention: For final alignment and to prevent tipping, the furniture must be fixed by the customer.
Fig. 1: Examples of metal
underframes
Fig. 2: Examples of
wooden underframes
Fig. 3
Fig. 4
Internet: www.venjakob‐moebel.de (further assembly instructions)
3
3
2
5. Align the furniture with a spirit level
Align furniture glides + middle adjusting foot horizontally and
vertically by turning.
Service hotline: Tel. +49 5209/592‐0
1
1
55069‐11
