Location of controls

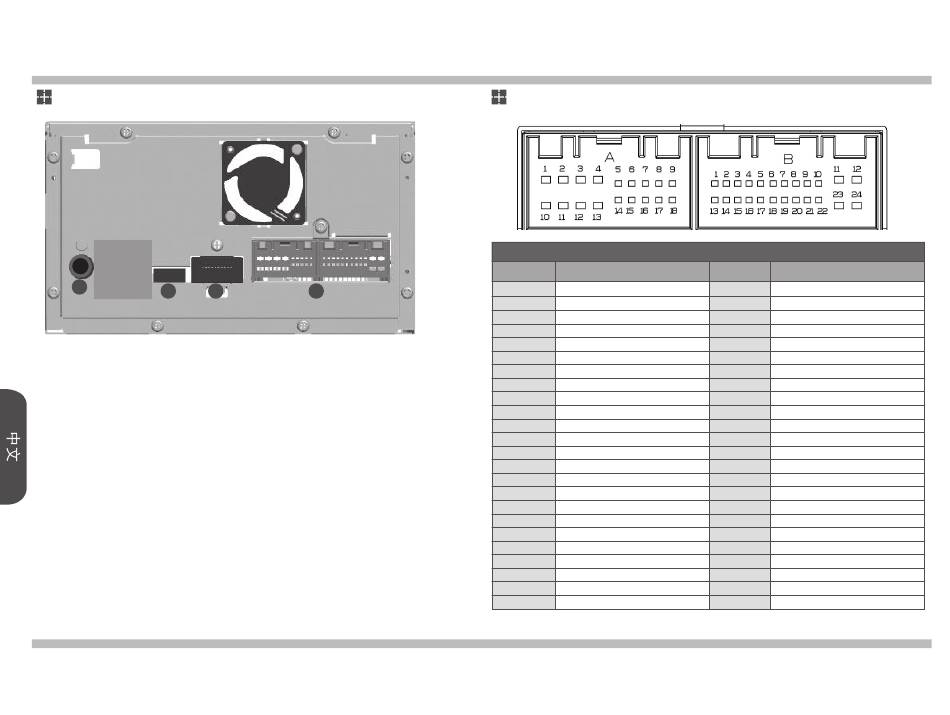

Rear View
1
2
1) Radio Antenna Jack
-
To plug the radio antenna cable
2) USB Port
-
To connect a USB connector for USB host function
3) HDMI Port
-
To connect a HDMI connector
4) I/O Connector (42 pin)
104
3 4
LCD Audio 42P CONNECTOR
LCD Audio
PIN NO. SPEC
A1 RL+
A2 FL+
A3 FR+
A4 RR+
A5 B/V_GND
A6 B/V_POWER
A7 ALT_IN
A8 ILL+
A9 REVERSE
A10 RL-
A11 FL-
A12 FR-
A13 RR-
A14 B/V_VGND
A15 B/V_VIDIO
A16 DOOR_UNLOCK
A17 ILL-
A18 ANT_ANT_B+
PIN NO. SPEC
B1 NC(CAN_H)
B2 NC(UCOM_TX)
B3 NC(MULTI-BOX PWR)
B4 ST_REMO
B5 NC(SPDIF_DP)
B6 NC(SPDIF_DM)
B7 F/V_VIDEO
B8 NC(AUX_R_IN)
B9 NC(AUX_REF)
B10 MIC+
B11 ACC
B12 BATT+
B13
NC(CAN_L)
B14 NC(UCOM_RX)
B15 NC(P_POSITION)
B16 SPEED
B17 ST_REMO_GND
B18 NC(SPDIF_GND)
B19 F/V_GND
B20 NC(AUX_DET)
B21 NC(AUX_L_IN)
B22 MIC-
B23 MIC_GND
B24 P_GND
