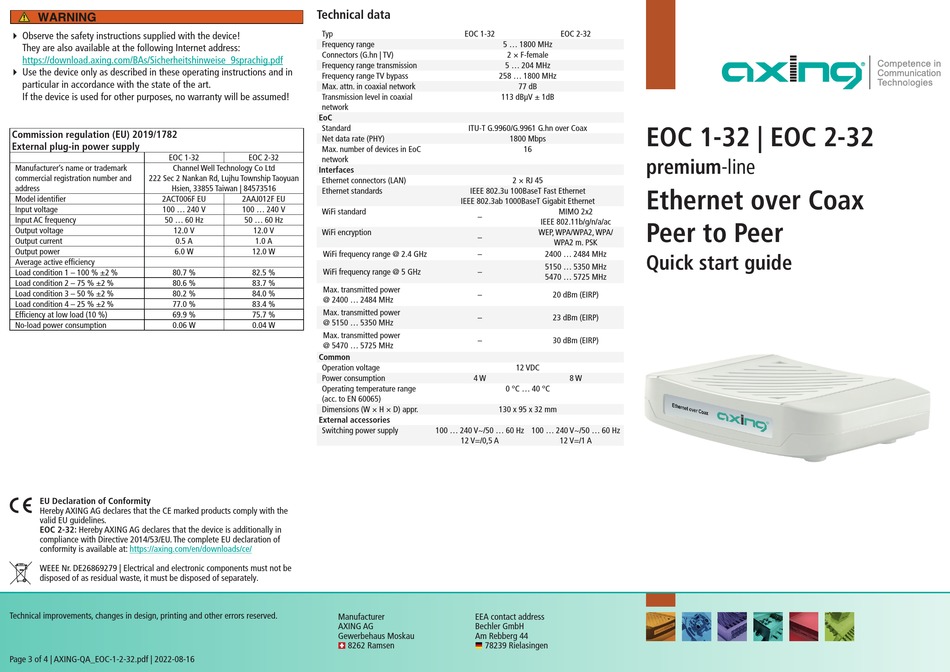

axing EOC 1-32 premium-line Schnellstartanleitung Seite 3

 Observe the safety instructions supplied with the device!
They are also available at the following Internet address:
https://download.axing.com/BAs/Sicherheitshinweise_9sprachig.pdf
 Use the device only as described in these operating instructions and in
particular in accordance with the state of the art.
If the device is used for other purposes, no warranty will be assumed!
Commission regulation (EU) 2019/1782
External plug-in power supply
EOC 1-32
Manufacturer's name or trademark Channel Well Technology Co Ltd
commercial registration number and 222 Sec 2 Nankan Rd, Lujhu Township Taoyuan
address Hsien, 33855 Taiwan | 84573516
Model identifier 2ACT006F EU
Input voltage 100 ... 240 V
Input AC frequency 50 ... 60 Hz
Output voltage 12.0 V
Output current 0.5 A
Output power 6.0 W
Average active efficiency
Load condition 1 – 100 % ±2 % 80.7 %
Load condition 2 – 75 % ±2 % 80.6 %
Load condition 3 – 50 % ±2 % 80.2 %
Load condition 4 – 25 % ±2 % 77.0 %
Efficiency at low load (10 %) 69.9 %
No-load power consumption 0.06 W
EU Declaration of Conformity
Hereby AXING AG declares that the CE marked products comply with the
valid EU guidelines.
EOC 2-32: Hereby AXING AG declares that the device is additionally in
compliance with Directive 2014/53/EU. The complete EU declaration of
conformity is available at: https://axing.com/en/downloads/ce/
WEEE Nr. DE26869279 | Electrical and electronic components must not be
disposed of as residual waste, it must be disposed of separately.
Technical improvements, changes in design, printing and other errors reserved.
Page 3 of 4 | AXING-QA_EOC-1-2-32.pdf | 2022-08-16
Technical data
Typ
Frequency range
Connectors (G.hn | TV)
Frequency range transmission
Frequency range TV bypass
Max. attn. in coaxial network
Transmission level in coaxial
network
EoC
Standard
Net data rate (PHY)
Max. number of devices in EoC
EOC 2-32
network
Interfaces
Ethernet connectors (LAN)
Ethernet standards
2AAJ012F EU
100 ... 240 V
WiFi standard
50 ... 60 Hz
12.0 V
WiFi encryption
1.0 A
12.0 W
WiFi frequency range @ 2.4 GHz
WiFi frequency range @ 5 GHz
82.5 %
83.7 %
Max. transmitted power
84.0 %
@ 2400 ... 2484 MHz
83.4 %
Max. transmitted power
75.7 %
@ 5150 ... 5350 MHz
0.04 W
Max. transmitted power
@ 5470 ... 5725 MHz
Common
Operation voltage
Power consumption
Operating temperature range
(acc. to EN 60065)
Dimensions (W × H × D) appr.
External accessories
Switching power supply
Manufacturer
AXING AG
Gewerbehaus Moskau
8262 Ramsen
EOC 1-32 EOC 2-32
5 ... 1800 MHz
2 × F-female
5 ... 204 MHz
258 ... 1800 MHz
77 dB
113 dBµV ± 1dB
ITU-T G.9960/G.9961 G.hn over Coax
1800 Mbps
16
2 × RJ 45
IEEE 802.3u 100BaseT Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
MIMO 2x2
–
IEEE 802.11b/g/n/a/ac
WEP, WPA/WPA2, WPA/
–
WPA2 m. PSK
– 2400 ... 2484 MHz
5150 ... 5350 MHz
–
5470 ... 5725 MHz
– 20 dBm (EIRP)
– 23 dBm (EIRP)
– 30 dBm (EIRP)
12 VDC
4 W 8 W
0 °C ... 40 °C
130 x 95 x 32 mm
100 ... 240 V~/50 ... 60 Hz 100 ... 240 V~/50 ... 60 Hz
12 V=/0,5 A 12 V=/1 A
EEA contact address
Bechler GmbH
Am Rebberg 44
78239 Rielasingen
EOC 1-32 | EOC 2-32
premium-line
Ethernet over Coax
Peer to Peer
Quick start guide
