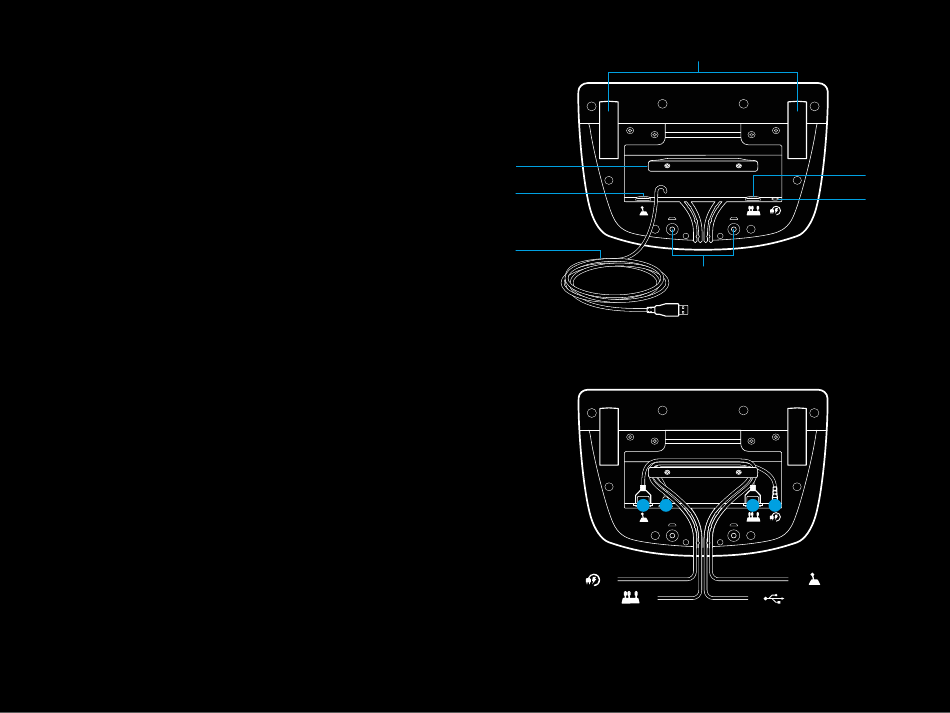

CONNECTIONS AND MOUNT POINTS
1
Mounting clamps
2
Cable management cleat
3
Optional shifter connection (DB-9 male)
4
USB cable
5
Pedal unit connection (DB-9 female)
6
Power connection
7
Bolt mounting points (uses M6X1 bolts)
OPTIMAL CABLE ROUTING
USB and pedal cables (1, 2) should be routed through inner channels.
Power and optional shifter cables (3, 4) should be routed through
outer channels.
Cables may be wrapped multiple times around cable management
cleat to take in slack.
2
3
4
3
3 ENGLISH
1
7
4
1
2
3
4
2
1
5
6
