Please note!
When using screw fastening devices for the installation of the balancer or for the fastening of the safety wire on point "S",
self-closing systems and / or splints must be used.
Suspend the load on the safety hooks (29).
•
Never lubricate the balancer with inflammable or volatile fluids.
•
Never remove the labels. All damaged labels have to be replaced.
If an horizontal displacement is necessary, which
needs a larger angle than the maximum scheduled
one, there are two possibilities:
Install the balancer further above by
using an extension (P-Option). Whereby the dimension
"I" has to be taken into consideration (drawing C).
Hang the balancer on a sliding carriage (C). Thanks
to its horizontal movement, the required working
position can be reached.
2

Safety and adjustment indications

The locking screw (6) can take 2 positions:
- Position „A" : The reel is locked.
– Position „B" : The reel is released.
(Drawing E)
BAL0400-0072b-DE/EN/FR
www.conductix.com

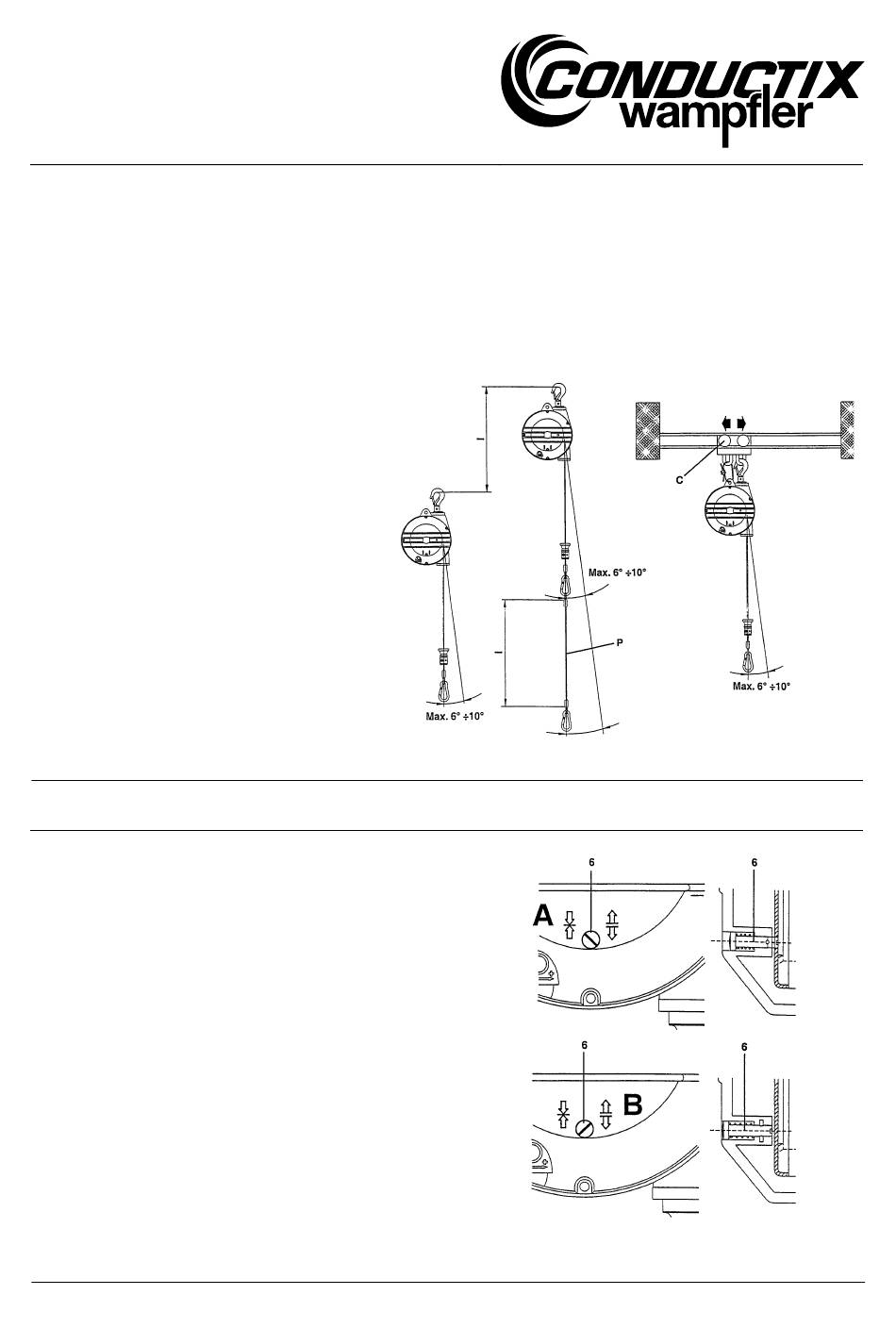

Drawing C
