8. Recommendations for a proper access to the model

CGS1
Preliminary assembly
8.1 Install the drain connection R1 with relative gasket.
8.2 In models CGS1**H3 and CGS1**H3ED, connect electric heater R0 and the motors by breaking through one of the
knockout entries; use the rubber fairlead supplied to prevent damage to the cables.
8.3 In models CGS1**L4 and CGS1**L4ED, electric heater R0 and motors are already connected in junction box SD: use
anyway the knockout entries and the rubber fairleads for electrical connections.
8.4 Use screws C, washers D and grommets E as shown in the figure to close and fasten fan shroud L1.
Access
8.5 Remove the drain connection R1 so that the movement of the fan shroud L1 is not hindered.
8.6 Loosen the knurled screws F and unscrew the fixing screws C of the fan shroud L1.
8.7 Move fan shroud L1 to the position shown in the figure.
Reassembling
8.8 Bring fan shroud L1 into position, making sure that the L2 casing remains inside it, tighten knurled screws F and secure
it with screws C.
8.9 Reassemble the drain connection R1.

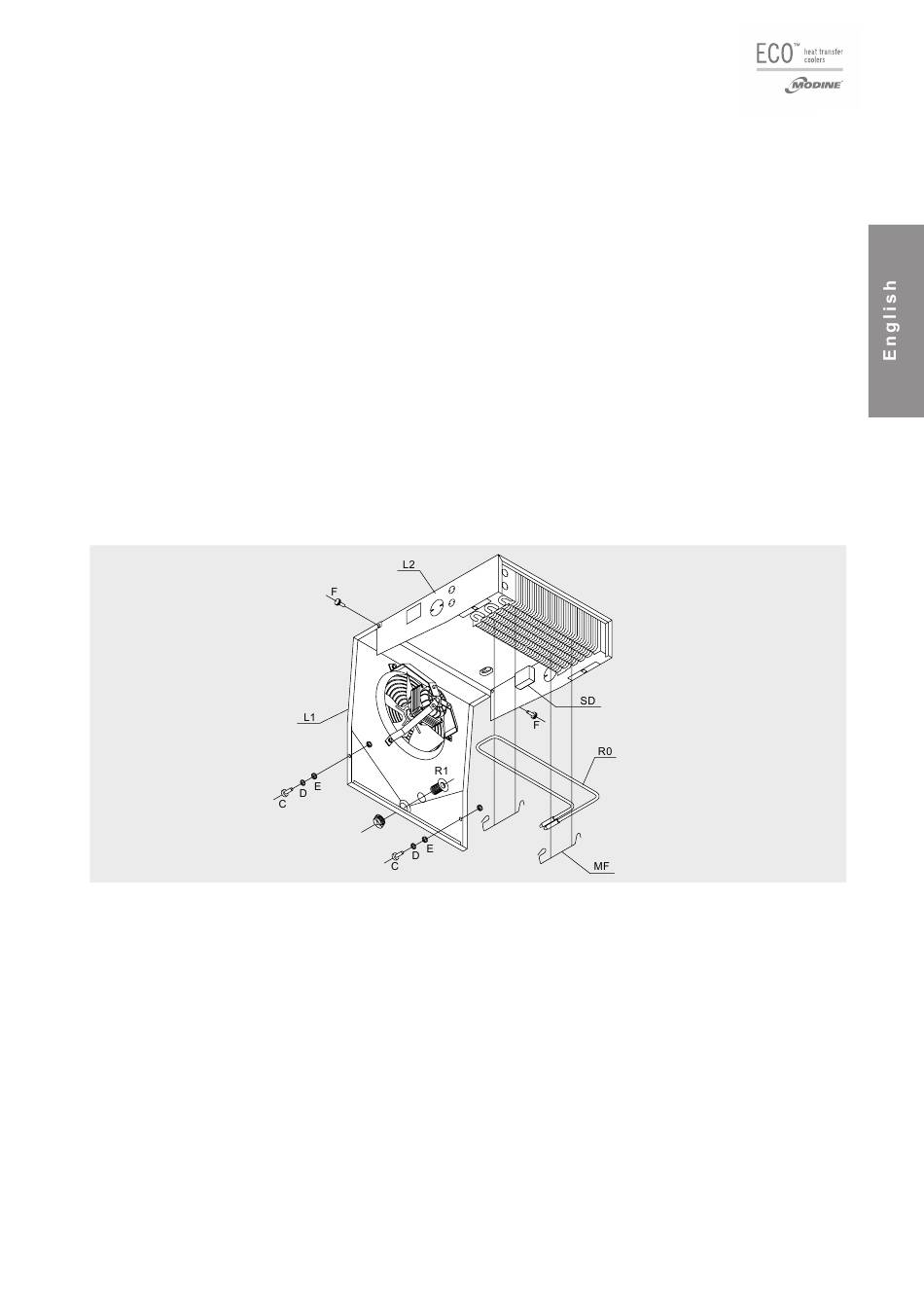

L1 = Fan shroud
L2 = Casing
MF = Heater clip (ED models)
R0 = Heater (ED models)
R1 = Drain connection
SD = Junction box (standard on CGS1**L4 and CGS1**L4ED models)
Figure 6
