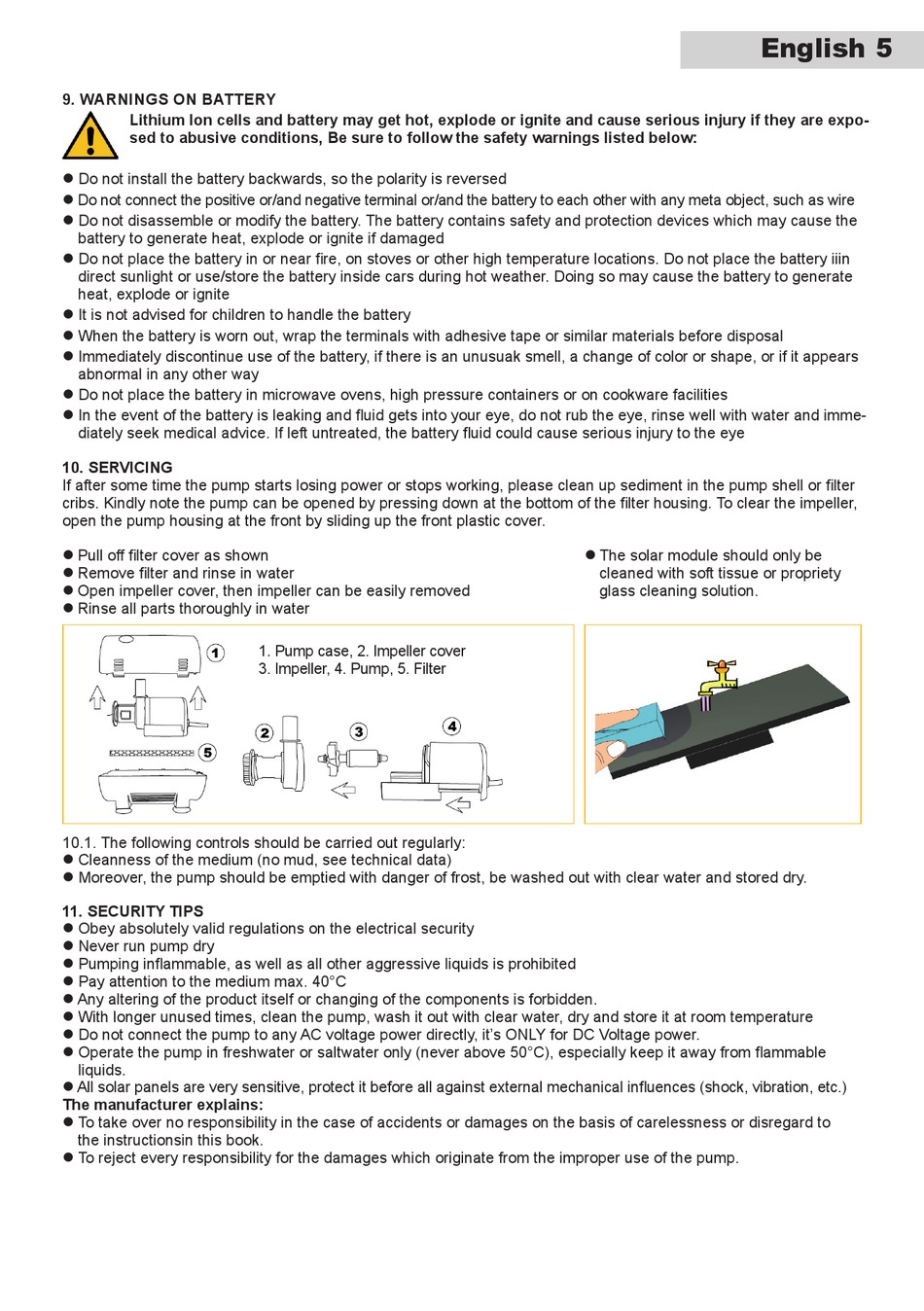

9. WARNINGS ON BATTERY

Lithium Ion cells and battery may get hot, explode or ignite and cause serious injury if they are expo-
sed to abusive conditions, Be sure to follow the safety warnings listed below:
l Do not install the battery backwards, so the polarity is reversed
l Do not connect the positive or/and negative terminal or/and the battery to each other with any meta object, such as wire
l Do not disassemble or modify the battery. The battery contains safety and protection devices which may cause the
battery to generate heat, explode or ignite if damaged
l Do not place the battery in or near fire, on stoves or other high temperature locations. Do not place the battery iiin
direct sunlight or use/store the battery inside cars during hot weather. Doing so may cause the battery to generate
heat, explode or ignite
l It is not advised for children to handle the battery
l When the battery is worn out, wrap the terminals with adhesive tape or similar materials before disposal
l Immediately discontinue use of the battery, if there is an unusuak smell, a change of color or shape, or if it appears
abnormal in any other way
l Do not place the battery in microwave ovens, high pressure containers or on cookware facilities
l In the event of the battery is leaking and fluid gets into your eye, do not rub the eye, rinse well with water and imme-
diately seek medical advice. If left untreated, the battery fluid could cause serious injury to the eye

10. SERVICING

If after some time the pump starts losing power or stops working, please clean up sediment in the pump shell or filter
cribs. Kindly note the pump can be opened by pressing down at the bottom of the filter housing. To clear the impeller,
open the pump housing at the front by sliding up the front plastic cover.
l Pull off filter cover as shown
l Remove filter and rinse in water
l Open impeller cover, then impeller can be easily removed
l Rinse all parts thoroughly in water
10.1. The following controls should be carried out regularly:
l Cleanness of the medium (no mud, see technical data)
l Moreover, the pump should be emptied with danger of frost, be washed out with clear water and stored dry.

11. SECURITY TIPS

l Obey absolutely valid regulations on the electrical security
l Never run pump dry
l Pumping inflammable, as well as all other aggressive liquids is prohibited
l Pay attention to the medium max. 40°C
l Any altering of the product itself or changing of the components is forbidden.
l With longer unused times, clean the pump, wash it out with clear water, dry and store it at room temperature
l Do not connect the pump to any AC voltage power directly, it's ONLY for DC Voltage power.
l Operate the pump in freshwater or saltwater only (never above 50°C), especially keep it away from flammable
liquids.
l All solar panels are very sensitive, protect it before all against external mechanical influences (shock, vibration, etc.)
The manufacturer explains:
l To take over no responsibility in the case of accidents or damages on the basis of carelessness or disregard to
the instructionsin this book.
l To reject every responsibility for the damages which originate from the improper use of the pump.
1. Pump case, 2. Impeller cover
3. Impeller, 4. Pump, 5. Filter
l The solar module should only be
cleaned with soft tissue or propriety
glass cleaning solution.
