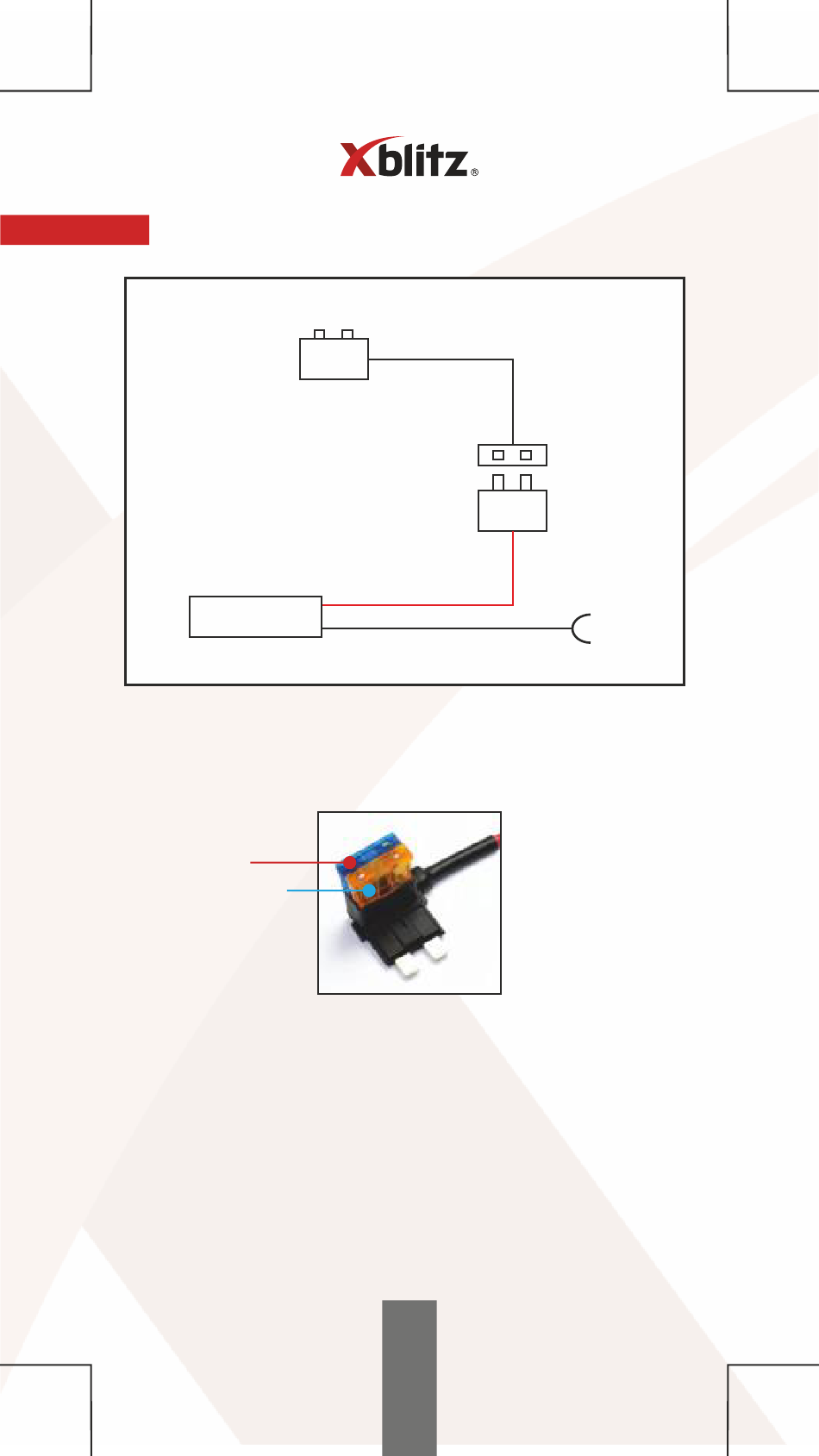

02. INSTALLATION
-
CAR BATTERY
XBLITZ
ADAPTER
1. Remove the fuse in your car's fuse box and put it into
the empty slot in the piggy-back fuse cable ("original
vehicle fuse" in the image).
new fuse
original fuse
2. Put the R5 Power piggy-back fuse cable into the now-
empty slot in the fuse box.
3. Insert the stripping wire of the black cord into the
GROUND terminal on R5 Power body and lock the wire
into place using the attached screwdriver; make sure
no copper wiring is sticking out of the terminal.
4. Insert the stripping wire of red cord into 12/24V
positive terminal on R5 Power body and lock the wire
into place using the attached screwdriver; make sure
no copper wiring is sticking out of the terminal; check
the wiring again to avoid a short-circuit.
+
RED
BLACK
15
+
FUSE
-
