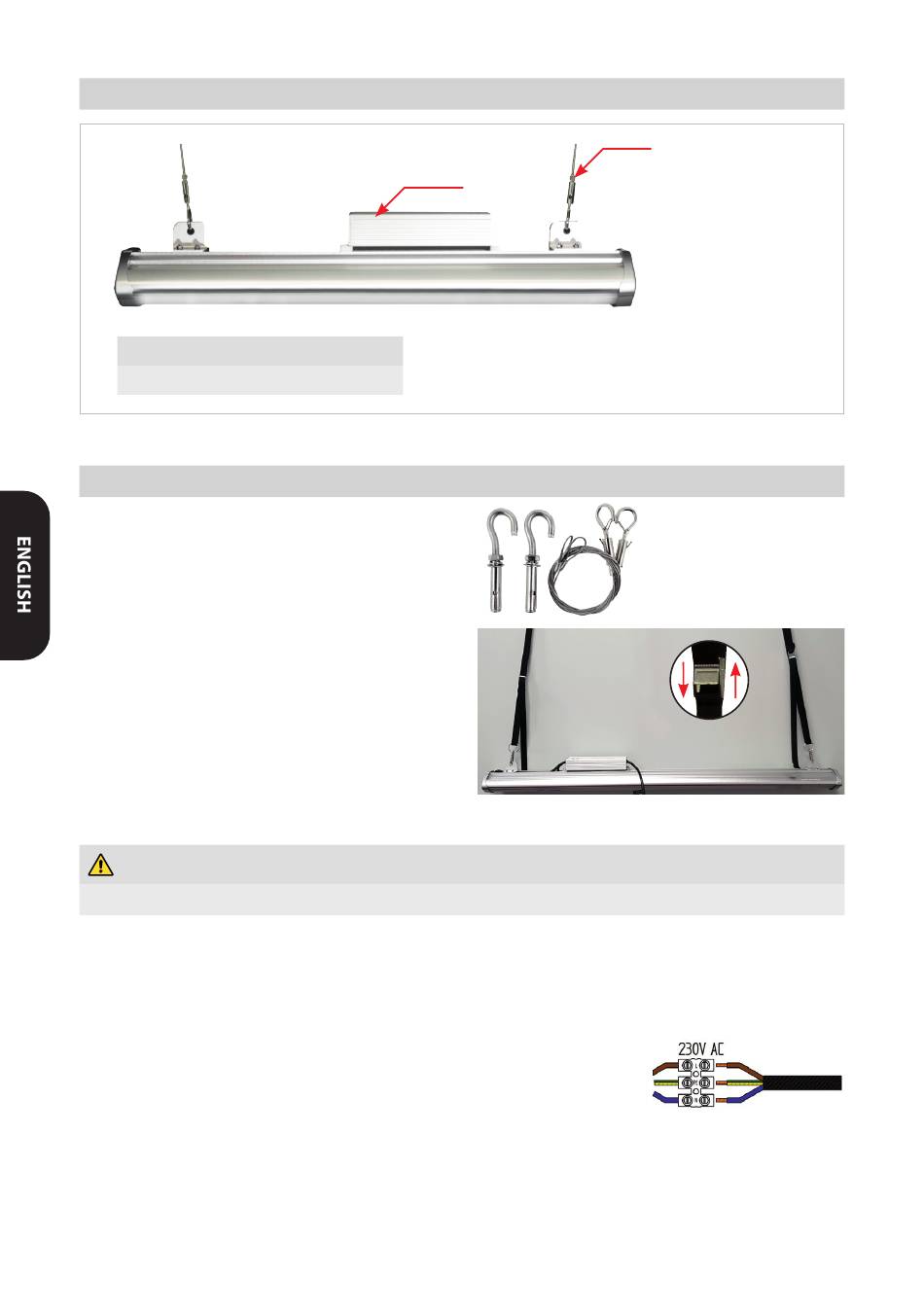

Controls; Installation (Pendant Luminaire) - Setolite SETO ALDEBARAN HI-LINE LED Gebrauchsanleitung

(A) External driver
(B) Steel cable
In order to be able to use the luminaires of the
ALDEBARAN® HI-LINE LED series as pendant
luminaires, a mounting set and / or nylon straps
are available.
Accessories included in the scope of delivery:
Mounting set, each consisting of two steel cables
and drive-in dowels, is suitable for fixed installation in
concrete ceilings.
Optionally available accessories:
Hanging set, consisting of two nylon straps (equipped
with a metal fastener for locking) and carabiners,
item no. 1410926024.
WARNING!
Connection may only be carried out by qualified personnel. Before working on the mains, disconnect the voltage.
1. Drill two 10 mm holes in the ceiling where the luminaire is to be installed, adjust the hole spacing according to your
installation situation and insert the drive-in dowels.
2. Place the drive-in dowels in the prepared holes, attach the steel cable (B) to the respective hooks of the drive-in
dowels and adjust the cables to the appropriate length.
3. Hang the luminaire in the hooks of the steel cables (B) and make sure that the safety clip is completely closed.
4. Now screw the supply cable to the European terminal; observe N (blue), L (brown),
PE (green / yellow).
5. Connect the driver or the luminaire to the mains.
The ALDEBARAN® HI-LINE LED is also available with connected supply cable (from 5 m) and down conductor (0.5 m)
incl. plug / coupling. Contact your SETOLITE team directly!
10

Controls

A

Installation (pendant luminaire)

Hanging set
B
Mounting set
