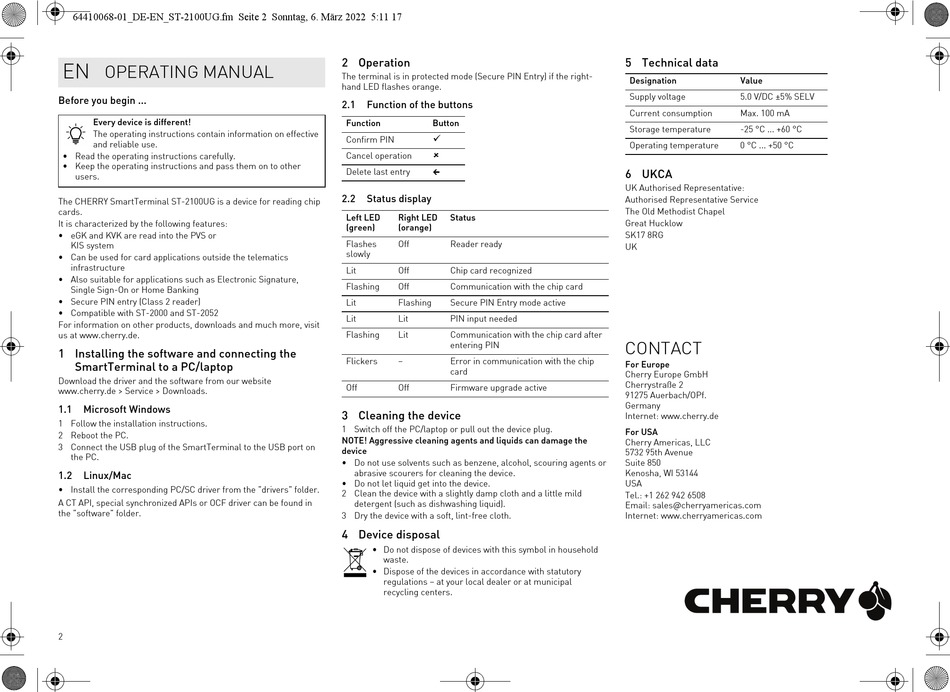

64410068-01_DE-EN_ST-2100UG.fm Seite 2 Sonntag, 6. März 2022 5:11 17
EN
OPERATING MANUAL
Before you begin ...
Every device is different!
The operating instructions contain information on effective
and reliable use.
• Read the operating instructions carefully.
• Keep the operating instructions and pass them on to other
users.
The CHERRY SmartTerminal ST-2100UG is a device for reading chip
cards.
It is characterized by the following features:
• eGK and KVK are read into the PVS or
KIS system
• Can be used for card applications outside the telematics
infrastructure
• Also suitable for applications such as Electronic Signature,
Single Sign-On or Home Banking
• Secure PIN entry (Class 2 reader)
• Compatible with ST-2000 and ST-2052
For information on other products, downloads and much more, visit
us at www.cherry.de.
1 Installing the software and connecting the
SmartTerminal to a PC/laptop
Download the driver and the software from our website
www.cherry.de > Service > Downloads.
1.1
Microsoft Windows
1 Follow the installation instructions.
2 Reboot the PC.
3 Connect the USB plug of the SmartTerminal to the USB port on
the PC.
1.2
Linux/Mac
• Install the corresponding PC/SC driver from the "drivers" folder.
A CT API, special synchronized APIs or OCF driver can be found in
the "software" folder.
2
2 Operation
The terminal is in protected mode (Secure PIN Entry) if the right-
hand LED flashes orange.
2.1
Function of the buttons
Function
Button
Confirm PIN
Cancel operation
Delete last entry
2.2
Status display
Left LED
Right LED
Status
(green)
(orange)
Flashes
Off
Reader ready
slowly
Lit
Off
Chip card recognized
Flashing
Off
Communication with the chip card
Lit
Flashing
Secure PIN Entry mode active
Lit
Lit
PIN input needed
Flashing
Lit
Communication with the chip card after
entering PIN
Flickers
–
Error in communication with the chip
card
Off
Off
Firmware upgrade active
3 Cleaning the device
1 Switch off the PC/laptop or pull out the device plug.
NOTE! Aggressive cleaning agents and liquids can damage the
device
• Do not use solvents such as benzene, alcohol, scouring agents or
abrasive scourers for cleaning the device.
• Do not let liquid get into the device.
2 Clean the device with a slightly damp cloth and a little mild
detergent (such as dishwashing liquid).
3 Dry the device with a soft, lint-free cloth.
4 Device disposal
• Do not dispose of devices with this symbol in household
waste.
• Dispose of the devices in accordance with statutory
regulations – at your local dealer or at municipal
recycling centers.
5 Technical data
Designation
Value
Supply voltage
5.0 V/DC ±5% SELV
Current consumption
Max. 100 mA
Storage temperature
-25 °C ... +60 °C
Operating temperature
0 °C ... +50 °C
6 UKCA
UK Authorised Representative:
Authorised Representative Service
The Old Methodist Chapel
Great Hucklow
SK17 8RG
UK
CONTACT
For Europe
Cherry Europe GmbH
Cherrystraße 2
91275 Auerbach/OPf.
Germany
Internet: www.cherry.de
For USA
Cherry Americas, LLC
5732 95th Avenue
Suite 850
Kenosha, WI 53144
USA
Tel.: +1 262 942 6508
Email: sales@cherryamericas.com
Internet: www.cherryamericas.com
