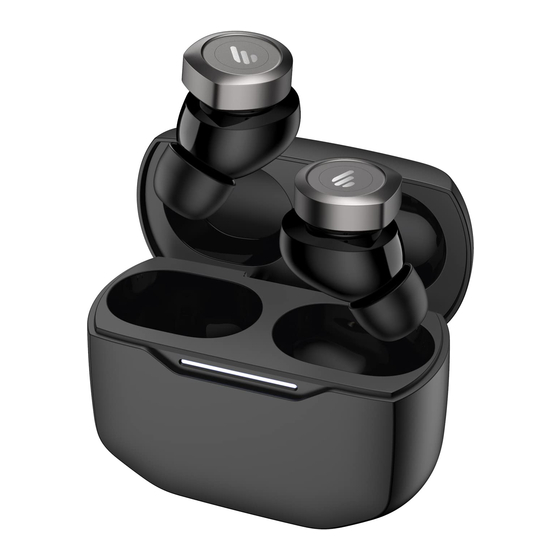

EDIFIER W240TN Bedienungsanleitung

Tr ue Wirel es s Nois e C a ncel l atio n In-Ea r H ea d p h o nes
EN 1. Power ON/OFF
1. Power ON when the case is opened.
2. Power OFF when placed in the case and the case is closed.
Note:
If there is no Bluetooth connection for 10 minutes after power on, the
earbuds will turn off automatically; if there is no Bluetooth connection in
noise cancellation or ambient sound mode, the earbuds will turn off
automatically after 2 hours.
2. Pairing
1. Earbuds placed in the case and keep the case open.
2. Press and hold the button on the case for about 3s. LEDs will be lit one
by one from left to right in a circulating pattern.
3. Select "EDIFIER W240TN" in your device setting to connect. LEDs will
blink twice and then turn off when successfully.
1st Pairing
1. Earbuds placed in the case and keep the case open. LEDs will be lit
one by one from left to right in a circulating pattern.
2. Select "EDIFIER W240TN" in your device setting to connect. LEDs will
blink twice and then turn off when successfully.
Note:
For subsequent use, the earbuds will automatically connect to the device
used last time.
3. Reset
1. Earbuds placed in the case and keep the case open.
2. Press the button on the case 3 times to re-enter left & right connection
and clear pairing records. LEDs will be lit one by one from sides to
center in a circulating pattern and then will blink twice when successfully.
3. Select "EDIFIER W240TN" in your device setting to connect. LEDs will
be lit one by one from left to right in a circulating pattern, then will blink
twice and turn off when successfully.
4. Charging
5. Controls
Left MFB Button
Note:
1. Default sound control:both earbuds-noise cancellation & ambient sound
& noise cancellation off; single earbud-noise cancellation off & ambient
sound.
2. Images are for illustrative purposes only and may differ from the actual
product.
3. Download Edifier Connect App for more customizable control settings.
For more information, please visit our website:
@Edifierglobal
Model: EDF200091
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong
www.edifier.com
2022 Edifier International Limited. All rights reserved.
Printed in China
NOTICE:
For the need of technical improvement and system upgrade,
information contained herein may be subject to change from time
to time without prior notice.
Products of EDIFIER will be customized for different applications.
Pictures and illustrations shown on this manual may be slightly
different from actual product. If any difference is found, the actual
product prevails.
W 240TN
Manual
Indicator
Indicator
Indicator
Charging case
1. Please connect the case to power source
with the included Type-C charging cable
for charging.
2. LEDs are steady lit when charging and off
when fully charged.
Note:
Please do not charge the earbuds when there
is sweat or other liquids inside the charging
port, which may damage the earbuds.
Input: 5V
x1
x1
x1
2s
x2
x3
2s
2s
2s
www.edifier.com
@Edifier_Global
Button
Button
200mA(Earbuds)
5V 1A(Charging case)
x1
x1
x1
2s
x2
x3
2s
2s
2s
3s
x3
Right MFB Button
