1. Specifications
2. Utilisation fit for
purpose
3. Safety Instructions
4. Before first use
4
10899_Unterstellbock-UNI-IM-INT-OEF_A5_181009.indd 4

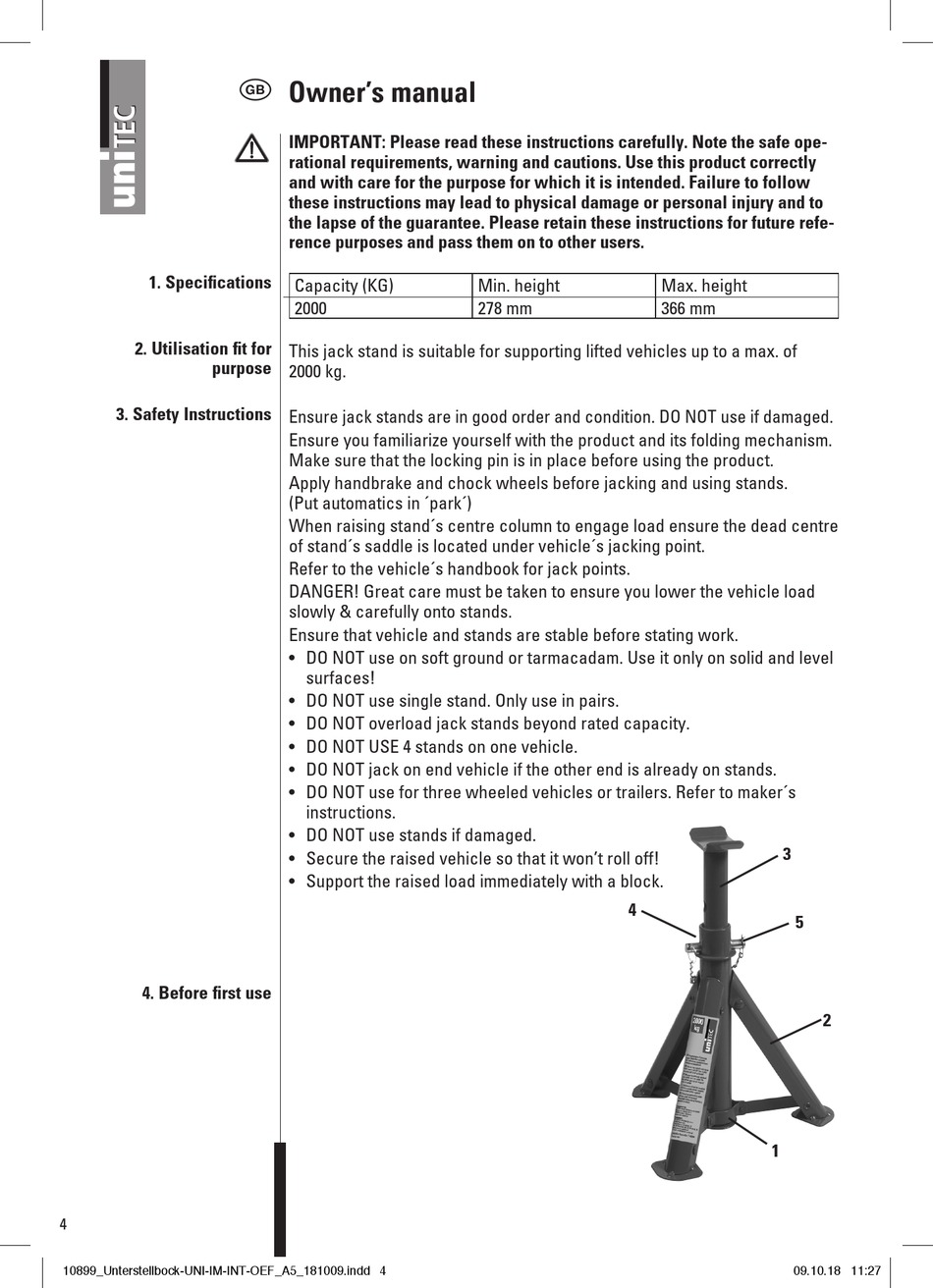

Owner's manual
t
IMPORTANT: Please read these instructions carefully. Note the safe ope-
rational requirements, warning and cautions. Use this product correctly
and with care for the purpose for which it is intended. Failure to follow
these instructions may lead to physical damage or personal injury and to
the lapse of the guarantee. Please retain these instructions for future refe-
rence purposes and pass them on to other users.
Capacity (KG)
2000
This jack stand is suitable for supporting lifted vehicles up to a max. of
2000 kg.
Ensure jack stands are in good order and condition. DO NOT use if damaged.
Ensure you familiarize yourself with the product and its folding mechanism.
Make sure that the locking pin is in place before using the product.
Apply handbrake and chock wheels before jacking and using stands.
(Put automatics in ´park´)
When raising stand´s centre column to engage load ensure the dead centre
of stand´s saddle is located under vehicle´s jacking point.
Refer to the vehicle´s handbook for jack points.
DANGER! Great care must be taken to ensure you lower the vehicle load
slowly & carefully onto stands.
Ensure that vehicle and stands are stable before stating work.
• DO NOT use on soft ground or tarmacadam. Use it only on solid and level
surfaces!
• DO NOT use single stand. Only use in pairs.
• DO NOT overload jack stands beyond rated capacity.
• DO NOT USE 4 stands on one vehicle.
• DO NOT jack on end vehicle if the other end is already on stands.
• DO NOT use for three wheeled vehicles or trailers. Refer to maker´s
instructions.
• DO NOT use stands if damaged.
• Secure the raised vehicle so that it won't roll off!
• Support the raised load immediately with a block.
Min. height
278 mm
4
Max. height
366 mm
3
5
2
1
09.10.18 11:27
