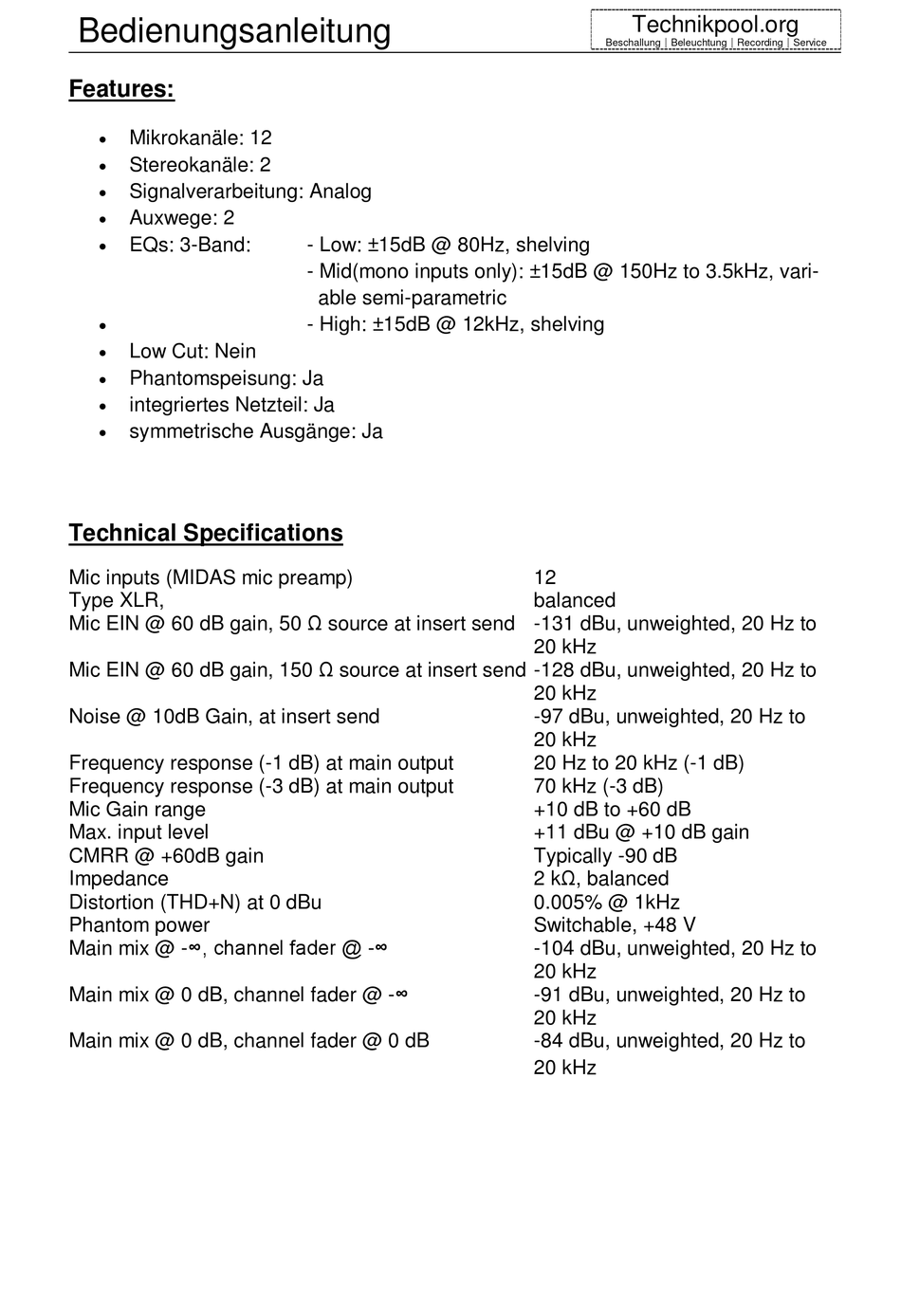

Technical Specifications - Midas DM16 Bedienungsanleitung

Bedienungsanleitung
Features:
Mikrokanäle: 12

Stereokanäle: 2

Signalverarbeitung: Analog

Auxwege: 2

EQs: 3-Band:


Low Cut: Nein

Phantomspeisung: Ja

integriertes Netzteil: Ja

symmetrische Ausgänge: Ja


Technical Specifications

Mic inputs (MIDAS mic preamp)
Type XLR,
Mic EIN @ 60 dB gain, 50 Ω source at insert send -131 dBu, unweighted, 20 Hz to
Mic EIN @ 60 dB gain, 150 Ω source at insert send -128 dBu, unweighted, 20 Hz to
Noise @ 10dB Gain, at insert send
Frequency response (-1 dB) at main output
Frequency response (-3 dB) at main output
Mic Gain range
Max. input level
CMRR @ +60dB gain
Impedance
Distortion (THD+N) at 0 dBu
Phantom power
Main mix @ -∞, channel fader @ -∞
Main mix @ 0 dB, channel fader @ -∞
Main mix @ 0 dB, channel fader @ 0 dB
- Low: ±15dB @ 80Hz, shelving
- Mid(mono inputs only): ±15dB @ 150Hz to 3.5kHz, vari-
able semi-parametric
- High: ±15dB @ 12kHz, shelving
Technikpool.org
BeschallungBeleuchtungRecordingService
12
balanced
20 kHz
20 kHz
-97 dBu, unweighted, 20 Hz to
20 kHz
20 Hz to 20 kHz (-1 dB)
70 kHz (-3 dB)
+10 dB to +60 dB
+11 dBu @ +10 dB gain
Typically -90 dB
2 kΩ, balanced
0.005% @ 1kHz
Switchable, +48 V
-104 dBu, unweighted, 20 Hz to
20 kHz
-91 dBu, unweighted, 20 Hz to
20 kHz
-84 dBu, unweighted, 20 Hz to
20 kHz
