Patioflora 200

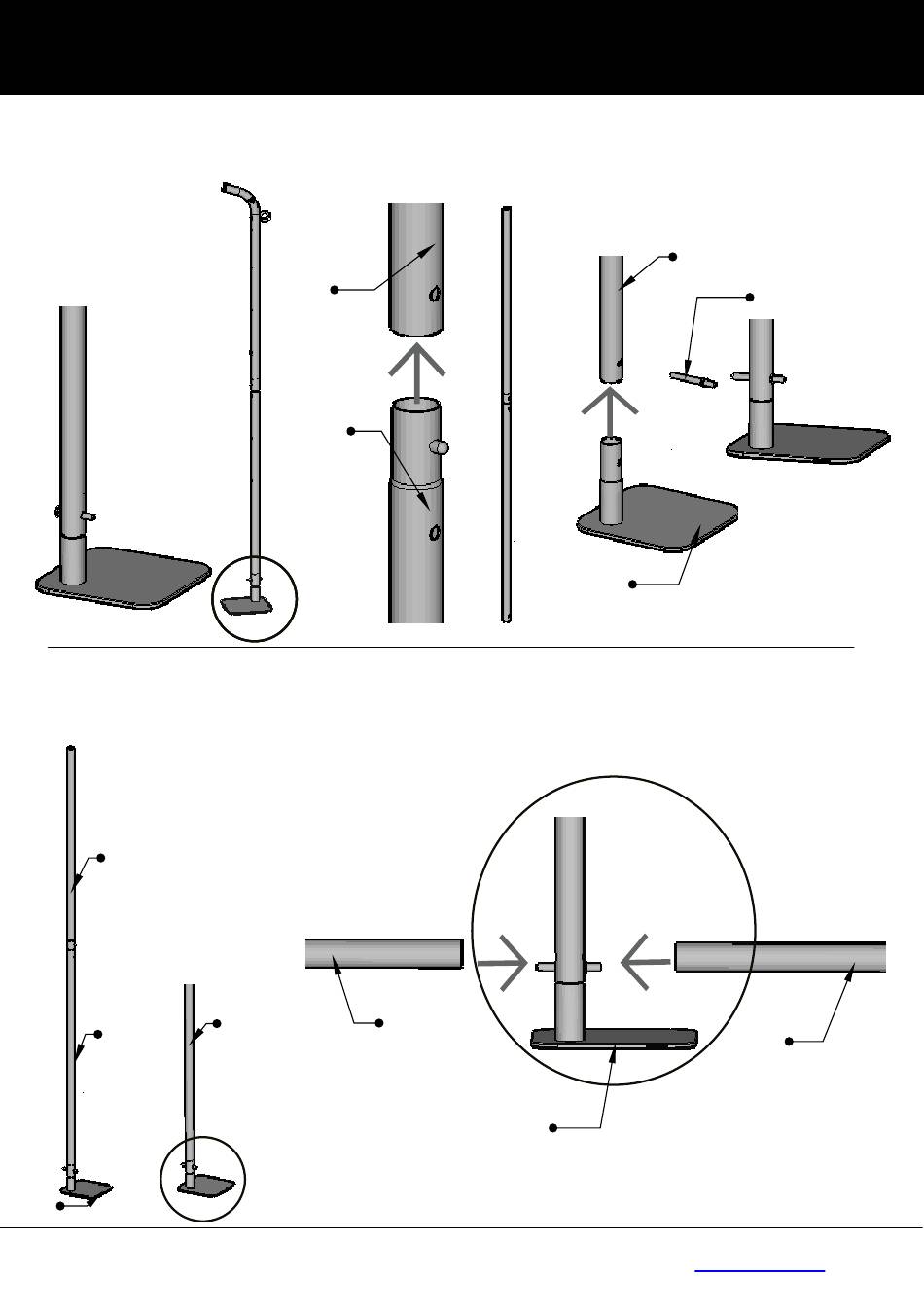

Step 4:
Repeat step 1 to 3 four times
A
Step 7:
Repeat step 6 with rod No.8
and foot No.16.1
No.7
No.6
16.1
Step 5:
Put struts No.6 and No.7
together
No.7
No.6
A
Step 8:
Take the connected struts from steps 6 and 7 and screw
strut no.1 to the set screws from both sides. Carry out this
step twice
No.8
B
Bio Green GmbH | Marburger Str. 1b | 35649 Bischoffen-Oberweidbach
Tel
+49 (0)6444 9312-23 |Fax
Amtsgericht Wetzlar | HRB: 8476 | Geschäftsführer: Alfred Brusius, Jan Brusius
No.16.1
No.1
16.1
+49 (0)6444 9312-22
Step 6:
Insert the centre foot into the rod
connected in step 5. Use the
threaded pin for this. Do NOT
screw anything in yet
No.6
No.19
B
No.1
|Webwww.biogreen.de
15
