Inhaltszusammenfassung für Pro-Ject Debut PRO

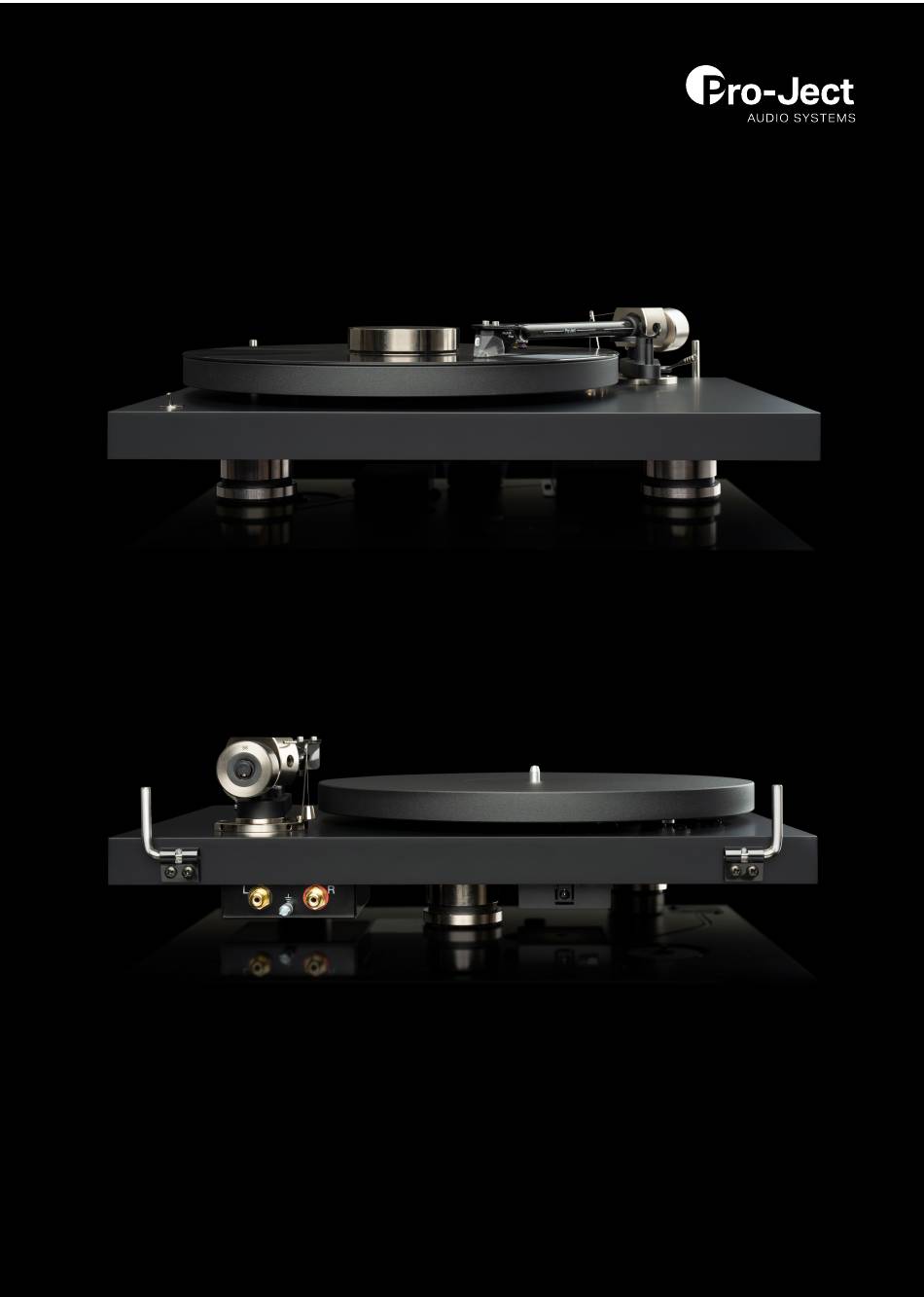

- Seite 1 Debut PRO Manual...
- Seite 2 INSTRUCTIONS FOR USE Debut PRO...
- Seite 3 © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01...
- Seite 4 During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable receptacle. Before starting to assemble, get familiar with the parts listed above and correspondingly numbered in the technical drawings above. © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01...
-
Seite 5: Safety Instructions
To this day, our designs have always been kept functional and clean, so the first Pro-Ject product was very simple but made from the highest quality materials: MDF, steel, aluminium, glass, and carbon. Plastic was not used for reasons of sound, durability, and the love of the environment. - Seite 6 The deck is supplied partially disassembled and carefully packaged for safe transport. The Setup Guide, included in the packaging with your Debut PRO, explains the setup process step by step with pictures, so be sure to follow it first and then refer to this guide should you want more detailed explanations. Here, some of the more technical set-up steps are covered in detail and you will gain a lot of important background information which will make you more comfortable with everything your new Debut PRO has to offer.
- Seite 7 Please note: Adjust the tracking force prior to installing the anti-skating weight. The recommended tracking force for the Pro-Ject Pick IT PRO cartridge is 20 mN = 2g. Use electronic tracking force scales (like Measure it E) for more accurate results.
-
Seite 8: Connection To An Amplifier (Integrated Amplifier Or Phono Preamplifier)
The record player has gold plated female RCA Phono sockets (14) on the back. Use the included Connect it E phono RCA cable to connect your Debut PRO to your amplifier. The cable ends with the yellow markings are plugged into the phono inputs (sometimes also labelled gram, disc or RIAA) on your amplifier. Make sure that the phono input offers correct matching and amplification for the type of cartridge used. -
Seite 9: Mains Power Connection
PRO Info: Power Supply Upgrade Your Debut PRO already has a speed control unit built in which at the same time already acts as a clean power supply. The exact voltage and frequency for the motor are generated by this speed control unit, resulting in the most accurate playback speeds. -
Seite 10: Fitting The Lid
So that no motor vibrations reach the pickup, the Debut PRO has the new, proven motor suspension first seen in our Debut Carbon EVO, which is responsible for the perfect decoupling of the motor. - Seite 11 The cartridge needle must be vertical in the record groove in order to trace the groove wall modulations correctly. The cartridge on your Debut PRO that comes pre-adjusted by the factory, is already correctly set up and you do not need to adjust the azimuth anymore! You should check and/or re-adjust the azimuth if you change or upgrade your cartridge.
- Seite 12 PRO Info: Cartridge, Tonearm and Main Platter Your Debut PRO comes with a new cartridge, specifically developed for the turntable and the new upgrades and features it received compared to the previous Debut iterations. We have always been looking for the best price/performance ratio, with perfect manufacturing quality and „Made in Europe“.
-
Seite 13: Maintenance And Cleaning
In any case, it is a good idea to renew the lubrication after 3 years at the latest. We recommend using Lube it to lubricate your platter bearing. Always disconnect the record player from the mains power supply as a precaution before maintenance! © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01... - Seite 14 Recommended load capacitance 150-300 pF Compliance/stylus type 12µm/mN – elliptical Recommended tracking force 20mN (2g) Tracking angle 20° Internal impedance, DC resistance 750 Ohm Internal inductance 450 mH Weight 7.2g © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01...
- Seite 15 Potential incorrect use and fault conditions Pro-Ject turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore, the following list of common fault symptoms is included.
- Seite 16 © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01...
-
Seite 17: Getting Started
Debut PRO Setup Guide Getting started: • Make sure to have enough space to unpack your turntable. • Always unpack and set up in a clean environment. • Please Do NOT throw away the packaging! If you need service or want to return your product, please send it in the original packaging including all inserts. -
Seite 22: Need Help
Debut PRO The instrument everyone can play. Need help? Feel free to contact us. We have experienced partners all over the world. Find your dealer here:... - Seite 24 23 Anslut till ditt hifi-system och njut av din 23 フォノケーブルをアンプのPHONO端子 аудиосистеме и наслаждайетсь музыкой! !اﻟﺗﻲ ﺗﻔﺿﻠﮭﺎ Ihrer HiFi-Anlage und genießen Sie Ihre goditi la tua musica! con su música favorita! desfrute da sua música! profitez de votre musique ! musik! に接続して、音楽を楽しんでください Musik! 。 Debut PRO SGT008...
- Seite 25 Questa guida è stata prodotta da: Pro-Ject Audio La presente guía ha sido producida por Pro-Ject Este manual foi produzido pela: Pro-Ject Audio Ce guide a été conçu par : Pro-Ject Audio Systems Denna guide är framtagen av: Pro-Ject Audio この説明書はPro-Ject Audio 本指南由：Pro-Ject Audio Systems 制作...
-
Seite 26: Product Information
PRODUCT INFORMATION 30 Years of Experience: Debut PRO *Record Puck PRO not included Debut PRO audiophile Debut yet The most MSRP 750 (incl. VAT) € Satin: • NEW pre-adjusted Pick it PRO cartridge* Speed: 33, 45/(78) (electronic speed change) • NEW 8,6” one-piece carbon-aluminium tonearm... - Seite 27 Ortofon we were able to produce a very After the Debut Carbon EVO revolutionized the De- special cartridge: The Pick it PRO. but series in 2020, the Debut PRO raises the bar Cartridges are electromechanical transducers, even higher. We designed not only a new turntable, where mechanical energy is transformed into an but also a completely new cartridge.
- Seite 28 Adjustable VTA & Azimuth With the new tonearm of the Debut PRO, both the azimuth and the vertical tracking angle (VTA) can be set. The tonearm height can be continuously adjus- ted by loosening the two grub screws.
- Seite 29 With the supplied round belt for 78 rpm, you can also listen to your shellac records. So that no motor vibrations reach the pickup, the Debut PRO has the new, proven motor suspension, which is responsible for the perfect decoupling of the motor.
- Seite 30 – a turning point for the vinyl industry. The old technology has made a comeback and is here to stay. The Debut PRO is a milestone for the next decades: A cult product that celebrates the great success of analogue music reproduction and the joy of stereo hi-fidelity in your home.
- Seite 31 DEBUT www.project-audio.com Designed and manufactured in Europe AUDIO SYSTEMS...
- Seite 32 Welcome to the deep end. Raising the bar sonically, we’ve designed Debut PRO to match the league it plays in. The satin black and nickel finish lends it the celebratory look fitting for Pro-Ject’s 30th anniversary.
-
Seite 33: Precision In Every Component
Precision in every component The precision CNC milled parts are perfectly formed and give the Debut PRO its modern, simple, elegant and, class-leading design. The nickel finish of these components results in a hard, resistant yet aesthetically pleasing surface. This process enables us to produce very high-quality and long- lasting components, avoiding plastics and similar materials that age over time. - Seite 34 A bearing block in the works.
- Seite 35 The anti-magnetic platter is a perfect playback platform, and also allows the turntable to support Moving Coil cartridges without any further modification. The Debut PRO is the ideal turntable for upgrading to an MC cartridge at a later point.
- Seite 36 True to the source Our new Pick it PRO delivers a more lively and robust sound and convinces with its broad dynamic range. The perfect combination of components is key in achieving the great charismatic sound of the Pick it PRO. US version is equipped with a Sumiko Rainier cartridge.
-
Seite 37: An Arm To Rule Them All
An arm to rule them all 8.6“ Carbon Aluminium Hybrid Tonearm The Debut PRO features a one-piece carbon-aluminium hybrid tonearm. The carbon layer gives the tonearm a high degree of rigidity, while the inner aluminium tube is responsible for the damping of the tonearm. - Seite 38 Record Puck Pro is not included.
- Seite 39 New nickel-plated aluminium bearing block Output Adujstable tonearm Gold plated sockets VTA & Azimuth New motor suspension system You can always change your RCA The azimuth and the vertical tracking angle output cable and upgrade it with your (VTA) can be set. The tonearm height can be preferred one.
- Seite 40 Pick it PRO. resistant surface. design just for the Debut PRO. record groove.
- Seite 41 Fully adjustable The heavy aluminum platter has a ring Change between speeds easily with the The new Debut PRO stands on three With the new tonearm of the Debut made of TPE on the inside that helps to toggle switch. With the supplied round...
-
Seite 42: Technical Specifications
Channel separation 22dB/1 kHz Output voltage 4mV/1 kHz Recommended load impedance 47kohms/amplifier connection – MM-input Debut PRO is available in black satin finish and comes with a acrylic dustcover. *For more information about the Sumiko Rainier cartridge please visit sumikophonocartridges.com... - Seite 43 30 Years of Pro-Ject The Debut PRO brings entirely new technologies to our iconic Debut turntable range. This audiophile turntable is truly convincing in all aspects – not only visually, but more importantly also in its sound performance.
- Seite 44 Revolutionized The Pro-Ject 1 and its successor, the Debut series, revolutionized listening to music. These products brought back the love of analogue playback devices at a time when digital music was everywhere, signaling a turning point for the vinyl industry. The “old” technology...
- Seite 45 Milestone The Debut PRO signals a milestone to future generations; a cult product that celebrates the great success of analogue music reproduction and the joy of stereo high-fidelity in your home.
- Seite 46 AUDIO SYSTEMS Pro-Ject Audio Systems a Division of Audio Tuning Vertriebs GmbH Margaretenstrasse 98 A-1050, Vienna AUSTRIA Headquarter & Logistics: Wirtschaftspark A5 Mistelbach/Wilfersdorf Analogweg 1, 2130 Mistelbach AUSTRIA E-Mail: info@project-audio.com Heinz Lichtenegger (CEO) www.project-audio.com instagram.com/projectaudiosystems www.facebook.com/PJ.Audio.Systems Technical data without engagement.
