TP302 TP326 Forest Growable Swing IN1902-C 01 16.qxp_TP302 TP326 Forest Growable Swing IN1902-C 01 16 13/01/2016 12:25 Page 6

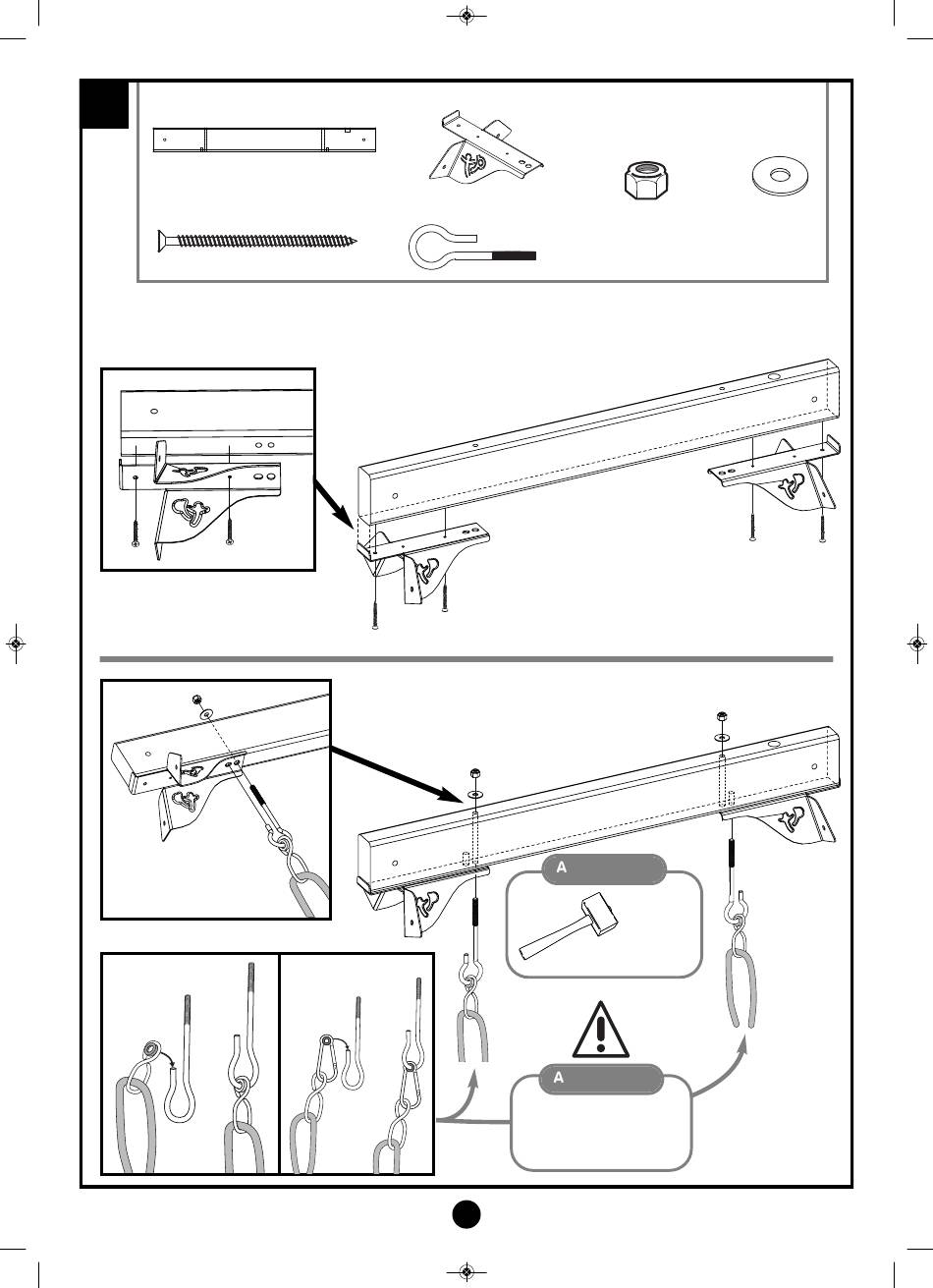

Stage
MW1232 / MW1232P
2
Single Swing Top bar x1
4.5 x 50mm Woodscrew x4
FA9705
Seat with
'S' hook
'S' hook
PR7691 Bracket x2
Seat with
'Snap Shackle'
Snap
Shackle
6
M8
Nylon Insert Nut
FA5174
x2
M8 Hook bolt x2
FA9774
M8 Nylon Insert Nut
M8 Washer
SSEMBLY TIP
Use Mallet to
firmly locate
hook bolt in
pilot hole
SSEMBLY TIP
Attach swing seat ('S' hook or
Snap Shackle) to
M8 Hook bolt before inserting
Hook bolt to top bar (see left)
M8 x 25mm
Large washer
FA7184
x2
4.5mm x 50mm
Wood screw
Forest Acorn Growable Swing Frame
