Stufenschalter
Step switch
FS 4/FS 6/FS 7
FS 4/FS 6/FS 7:
Degree of protection:
Dimensions
(WxHxD):
Weight
FS 4/FS 6/FS 7:
3 Installation
Do not make any changes to surface-mounted unit.
Do not drill unit. Make sure that the wall surface is
level.
1. Release power supply circuits,
secure against being acciden-
tally switched back on, position a visible warning
sign.
2. Remove plastic screw.
3. Remove the cover.

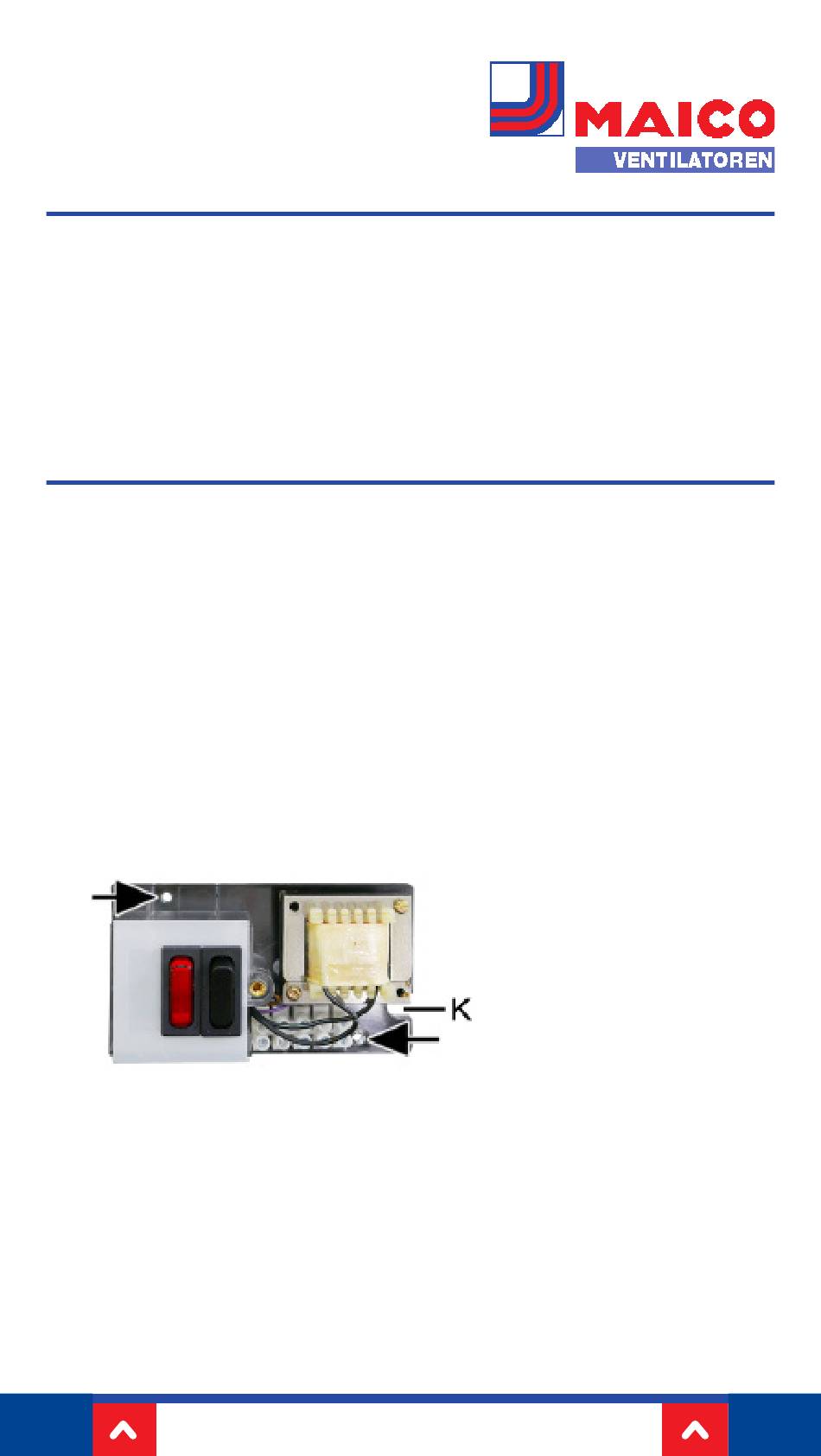

4. Use 2 screws (arrows) to attach the base plate to
the wall. Observe cable entry cut-out [K].
5. Perform electrical connection in accordance with
wiring diagram and terminal designations.
6. Attach the cover and fasten with a screw.
7. After fan installation, switch on the mains fuse and
check for function.
DE
0.35/0.35/6 A
128x74x46 mm
0.4/0.4/0.1 kg
0185.1249.0001_RLF.8_09.22
IP 20
